Sony DVP-S9 - Front Panel Section; MAIN Board

DVP-S9
9

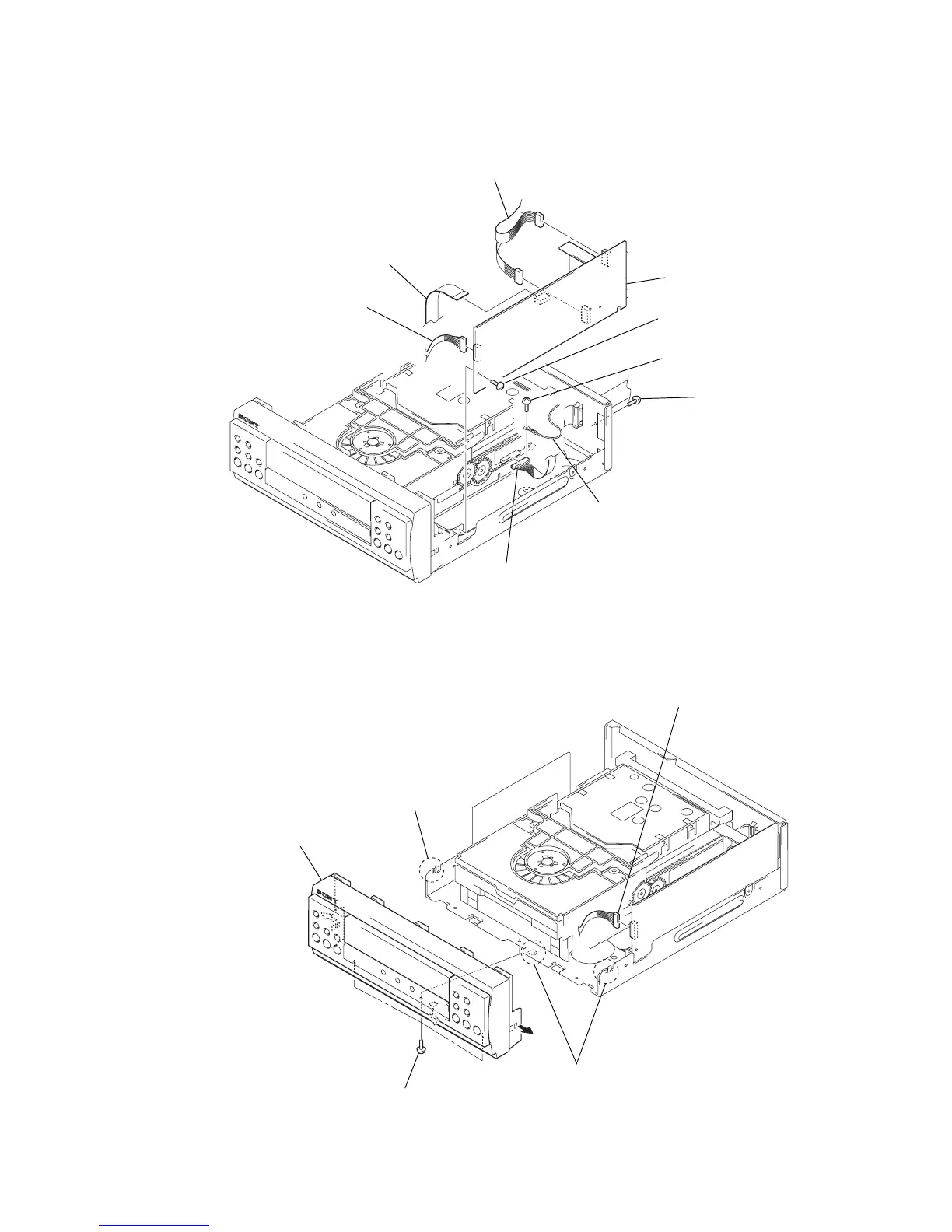

3-6. MAIN BOARD
3-7. FRONT PANEL SECTION
2 connector
(CN401)
1 wire (flat type) (10 core)
(CN107)
3 two connectors
(CN101, 102)
9 MAIN board
7 screw
(BVTP3 × 8)
5 screw
(BVTP3 × 8)
6 lug
4 connector
(CN701)
8 screw
(BVTP3
× 8
)
2 three screws
(BVTP3
× 8)
3 two claws
1 connector
(CN401)
4 front panel section
3 claw
