40 Preparations
Using the ceiling bracket, retaining wire,
and retaining screws supplied, you can
utilize existing junction boxes, etc., to attach
the camera to the ceiling.
When you install the unit, always install it on
a level ceiling. If you have to install it on a
sloping or uneven ceiling, make sure that the
place where you install it is within ±15
degrees of the horizontal.
• If you attach the unit to the ceiling, entrust
the installation to an experienced
contractor or installer.
• If you install the unit on the ceiling, be
sure the ceiling is strong enough to
withstand the weight of the camera plus
the ceiling bracket. If the ceiling is not
strong enough, the unit may fall and cause
serious injury.
• If you attach the unit to the ceiling, check
periodically, at least once year, to ensure
that the connection has not loosened. If
conditions warrant, make this periodic
check more frequently.
Before installation
After deciding the direction in which the
camera will shoot, make the required holes
for the junction box, and connecting cables.
The connecting cables cannot be passed
through ceiling bracket (A). A hole for the
wiring is required in the ceiling at the back
of the unit where it is attached to the ceiling.
Installation
1 Set the IMAGE FLIP switch on the
rear panel to ON.
• If you set the IMAGE FLIP switch to
ON after turning on the power, the
image will not be flipped. Turn the
power off once, then on again, and the
image will be flipped. It may take as
long as 7 seconds for the image to
appear with the correct orientation.
• When you toggle the IMAGE FLIP
switch, the pre-set settings will all be
returned to the initial settings.
2 Attach the retaining wire to the
junction box in the ceiling.
Use a screw hole and a screw (not
supplied) in the junction box to attach
the retaining wire.
Installing the unit on the
ceiling
Notes
Note
Notes

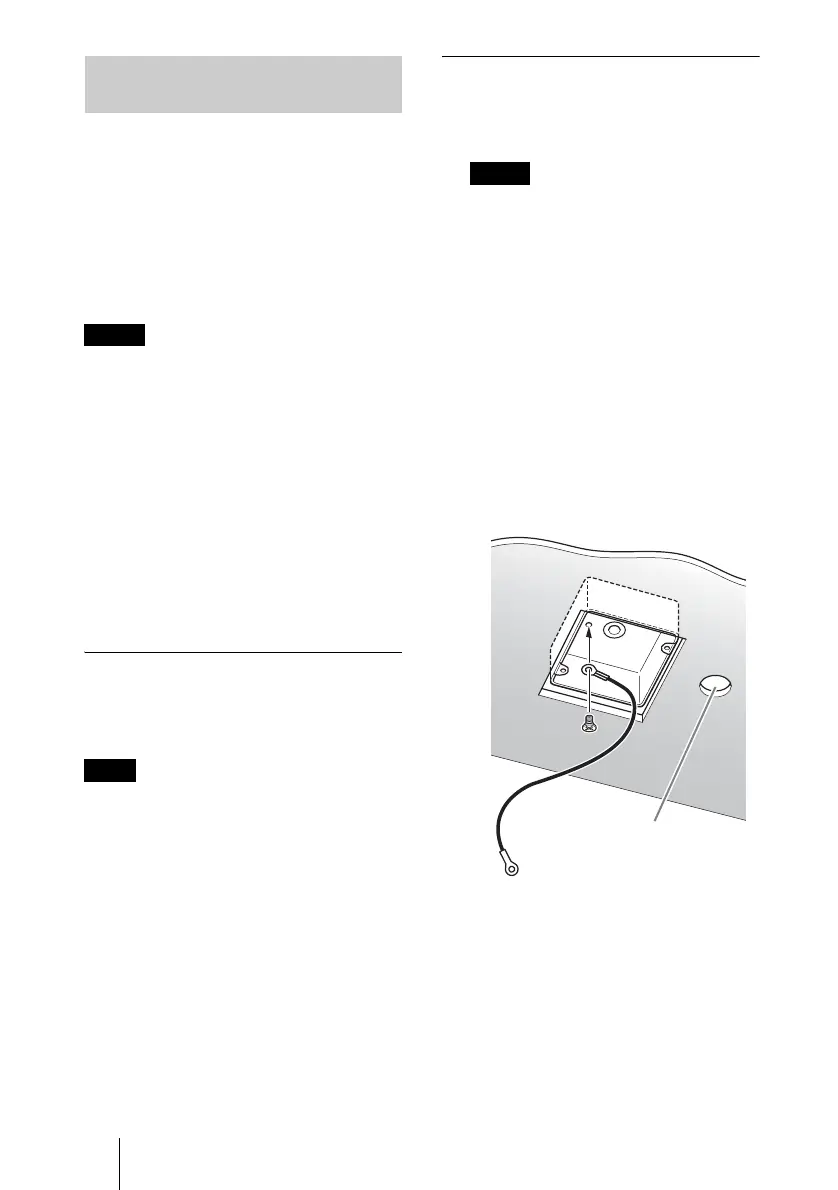

Ceiling
Hole for connecting cable
To Next Page
