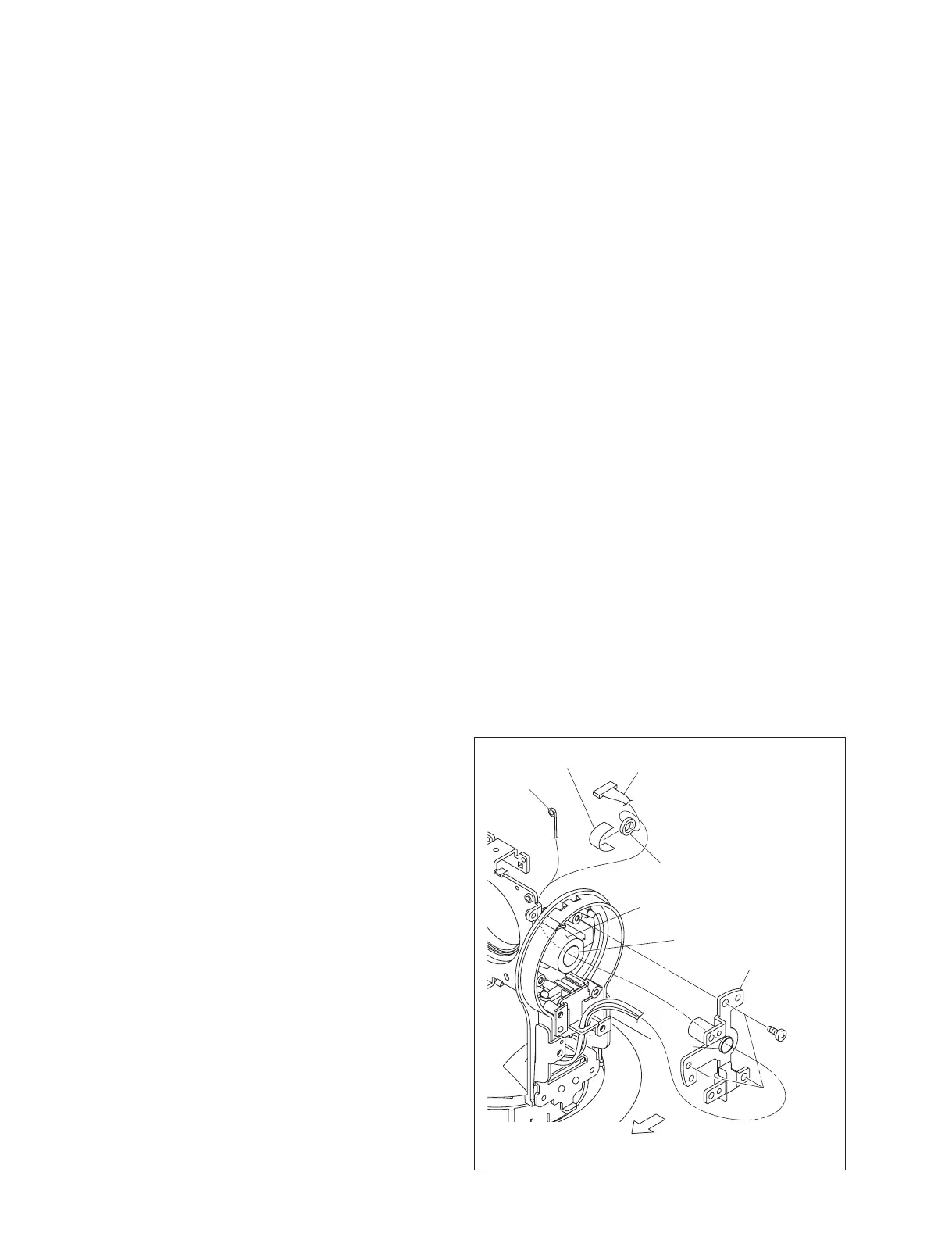

EVI-HD7V
BTP2.6 x 8
Tilt reel
Earth cable
Coaxial harness
Ferrite bead
Tape (A)
Shaft assembly
Hole
Hole
Front side of main unit
1-5. Flexible Flat Cable (22, 26)
Parts information
The two types of screws (PSW2.6 x 6) are used in this unit.
. Part number: 3-669-607-91
Part name: +PSW2.6 x 6
. Part number: 7-621-759-45
Part name: +PSW2.6 x 6 (In this illustration, this screw is indicated as PSW2.6 x 6 (Large).)
. Part name: Tape (A)
Part number: 3-080-272-01
n
Replace the removed tape (A) with the new one.
n
Tighten the following screws to the tightening torque as described below.
Tightening torque:
. BTP 2.6 x 8: 0.4 ?0.02 N.m
. PSW 2.6 x 6: 0.4 ?0.02 N.m
1. Remove the side cabinet. (Refer to Section 1-2-1.)
2. Remove the front bezel. (Refer to Section 1-2-2.)
3. Remove the camera cabinet (lower front/lower rear). (Refer to Section 1-2-3.)
4. Remove the camera cabinet (upper). (Refer to Section 1-2-4.)
5. Remove the front cabinet. (Refer to Section 1-2-5.)
6. Remove the camera block assembly. (Refer to Section 1-3-1.)
7. Remove the SY-359 board. (Refer to Section 1-4-4.)
8. Remove the tape (A), then remove the ferrite bead
from the coaxial harness.
9. Pull out the earth cable and coaxial harness from the
hole of tilt reel and the hole of shaft assembly.
10. Remove the three screws, then remove the shaft as-
sembly.
To Next Page
