Sony EVI-HD7V Service Manual

2-4
EVI-HD7V

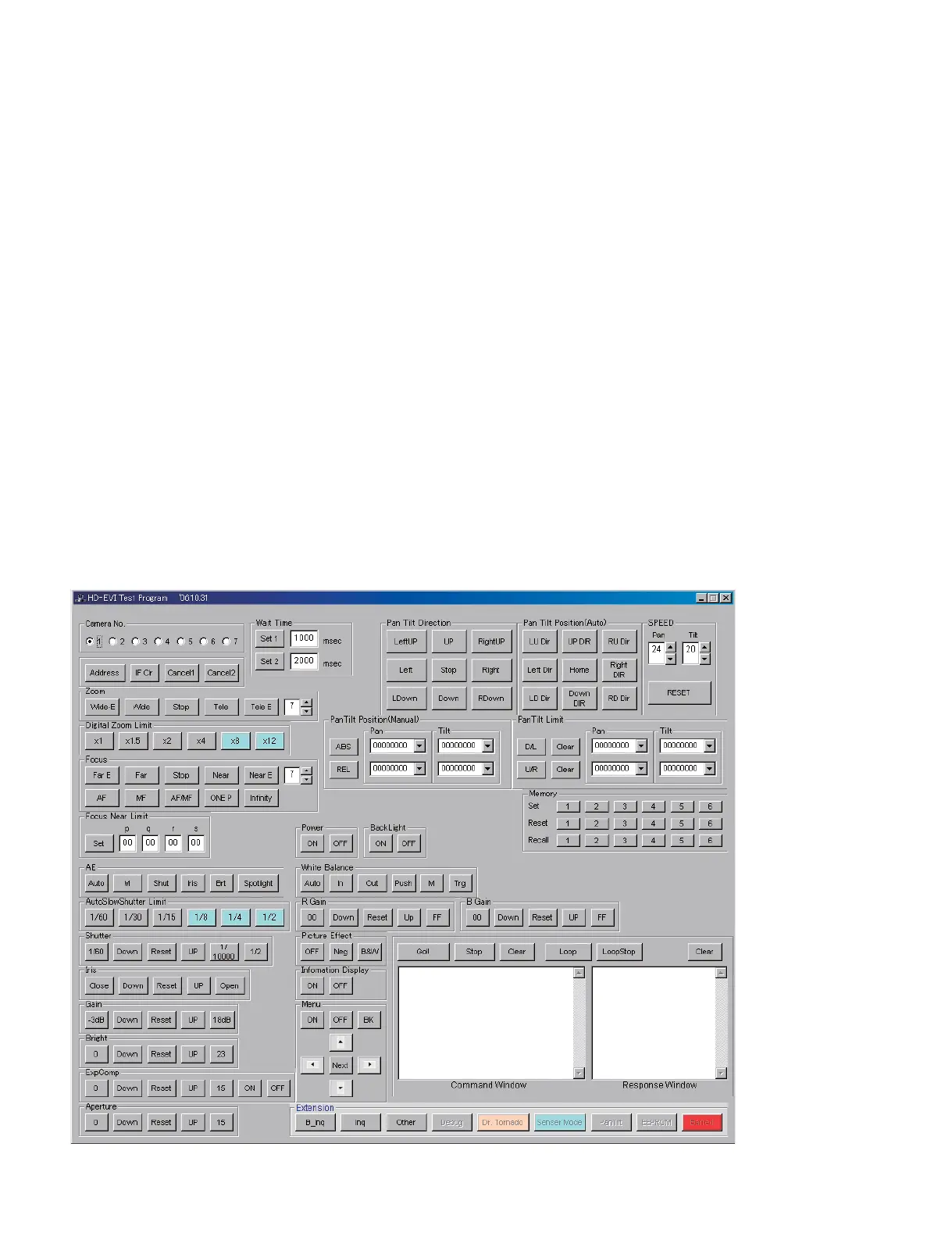

2-1-3. Control Software Adjustment
The control system of the camera is adjusted using the software installed in a PC (personal computer).
Name of the software
EVI-HD1 Test Program
n
For obtaining this software, please contact your local Sony Sales Offi ce/Service Center.
PC to use
The PC in which Microsoft Windows 2000/XP/Vista operates.
Installation
Double click “setup.exe” from the File manager (Explorer).
Operation
1. Turn on the power of the camera and start up Windows.
2. Double click the Control Panel icon.
3. Adjust by clicking the buttons for adjustment items.
The command to be sent is displayed on the Command Window by clicking each button. Click the
[GO] button in the upper left area of the Command Window to send the command.
4. Click the adjustment software using the fi nish button of the window.
