Sony EVI-HD7V Service Manual

2-1
EVI-HD7V
Section 2
Adjustments
2-1. Preparation

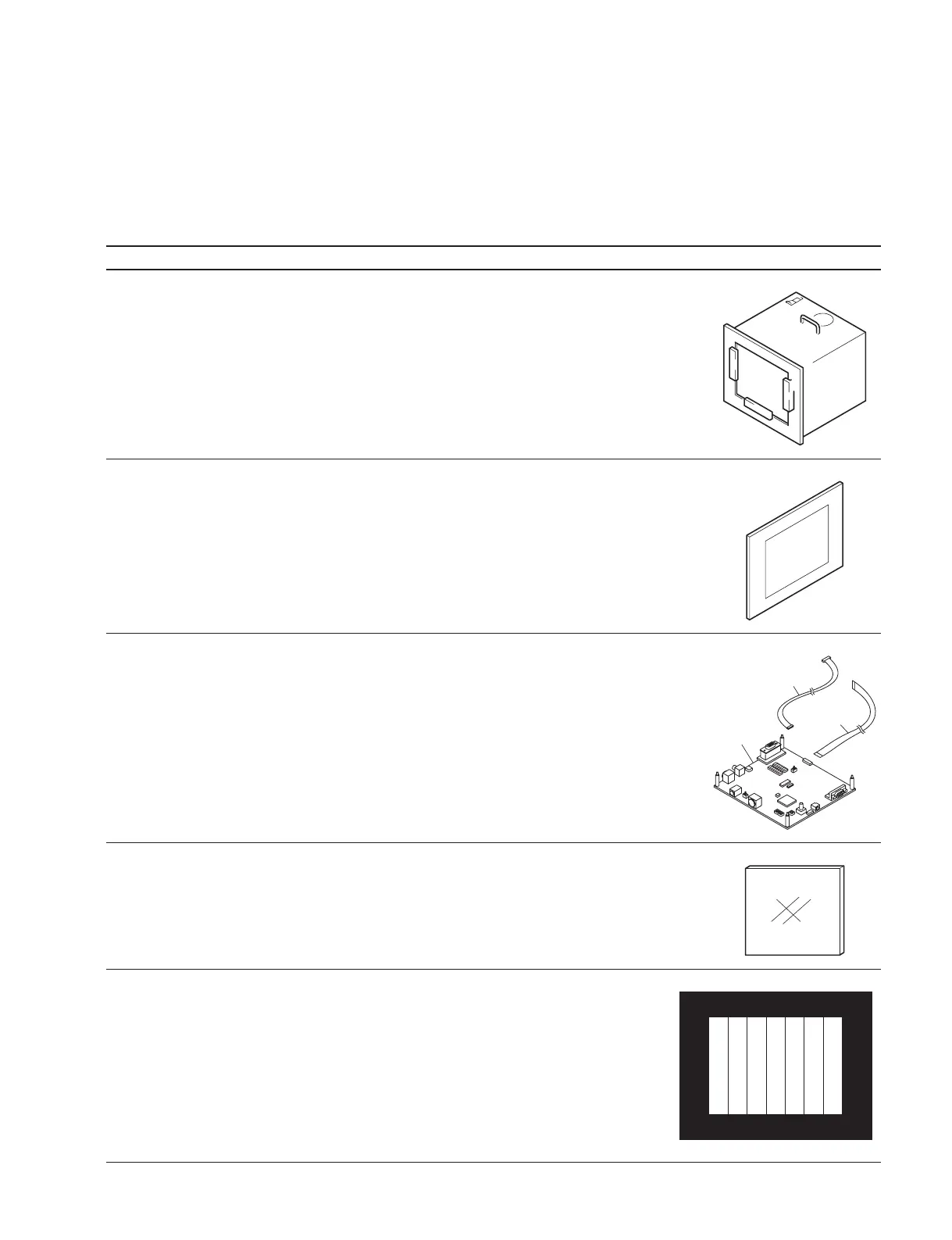

2-1-1. List of Service Tools
Name Parts No. Description
. Pattern Box
PTB-450
. Small pattern box
PTB-1450
J-6082-200-A
J-6082-577-A
Light source for test chart
. Clear chart
(for PTB-450)
. Clear chart
(for PTB-1450)
J-6080-621-A
J-6082-560-A
 HD camera image producing tool
 HD camera FFC
 HD camera harness
1-857-551-11
J-6433-730-A
1-966-793-11



. ND fi lter 1.0
. ND fi lter 0.4
. ND fi lter 0.1
J-6080-808-A
J-6080-806-A
J-6080-807-A
White balance check
. Color-bar chart
(for PTB-450)
. Color-bar chart
(for PTB-1450)
J-6020-250-A
J-6082-559-A
For color adjustment
WGCYYI Mg RB

Sony EVI-HD7V Specifications

General

Maximum resolution	1920 x 1080 pixels
Supported video modes	480p, 720p, 1080i, 1080p
Automatic gain control	Yes
Pan range	-100 - 100 °
Pan speed	300 °/sec
White balance	Auto, Indoor, Manual, Outdoor, Push
Tilt angle range	-25 - 25 °
Camera shutter speed	1/60 - 1/10000 s
Minimum illumination	15 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	40 x
Optical zoom	10 x
Focal length range	3.4 - 33.9 mm
Maximum aperture number	2.1
Built-in HDD	No
Type	CCTV security camera
Placement supported	Indoor
Light exposure modes	Aperture priority AE, Auto, Manual
Connectivity technology	Wired
Form factor	-
Mounting type	Desk
Product color	Gray
Signal-to-Noise Ratio (SNR)	50 dB
DC output voltage	12
Power consumption (typical)	26.4 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Interface	RS-232C
Cables included	AC
Number of cameras	1

Weight and Dimensions

Depth	132 mm
Width	250 mm
Height	152 mm
Weight	1500 g
