Sony EVI-HD7V Service Manual

1-24
EVI-HD7V

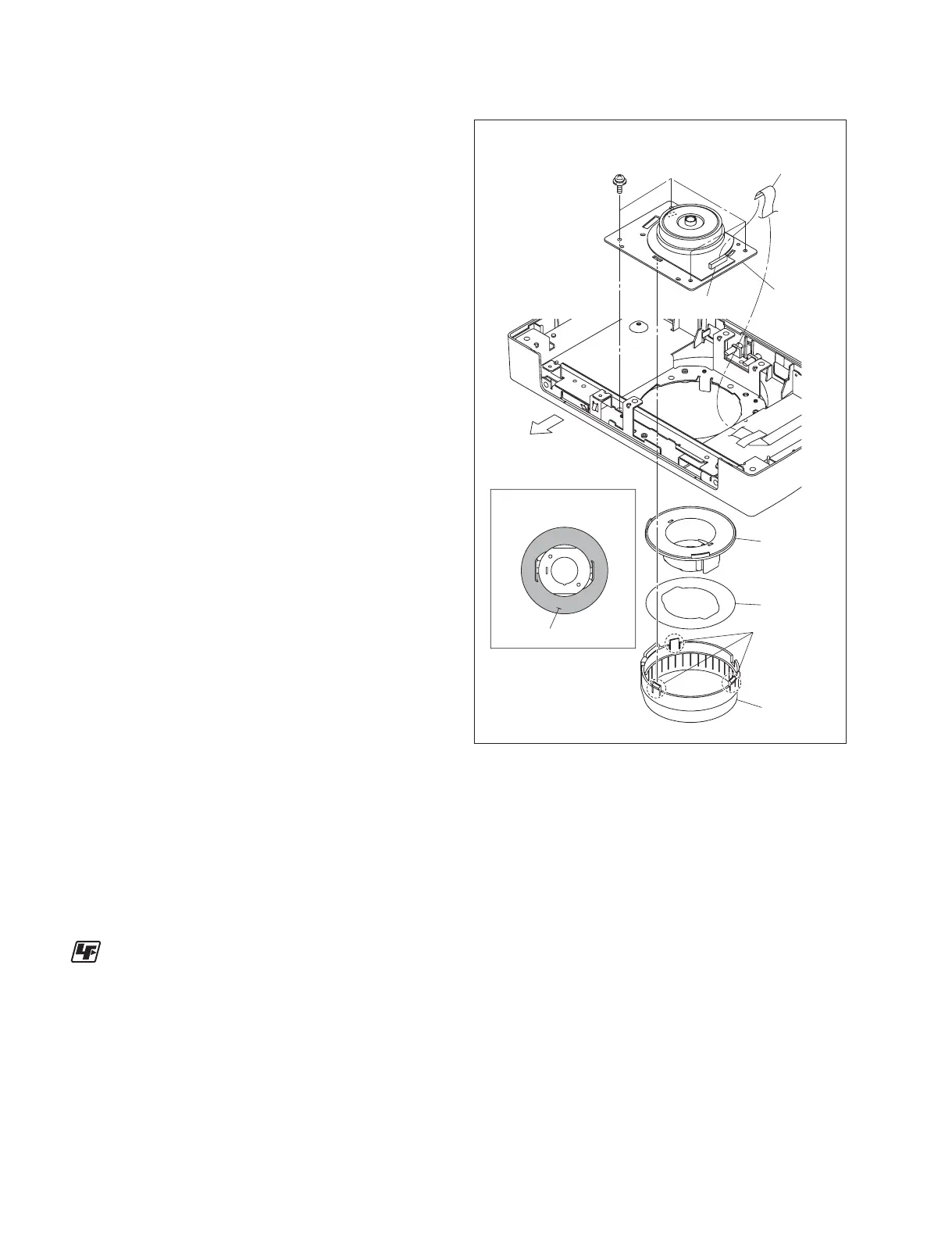

Pan motor
Flexible
flat cable
Apply grease.
Upper surface of
reel sheet
PSW2.6 x 6 (Large)
Connector
FFC reel
FFC cover
Hooks
Reel sheet
Rear side of
main unit
8. Disconnect the fl exible fl at cable from the connector
on the pan motor.
9. Remove the three hooks, then remove the FFC cover
and FFC reel.
10. Remove the four screws, then remove the pan motor.
11. To install, reverse the removal procedure.
n
When replacing the reel sheet, apply grease to the
upper surface of the reel sheet with 50% or more in
width and 0.5 mm or less in width (Floil SG-941
manufactured by Kanto Kasei). If the grease is already
applied, this is not required.
1-8. Lead-free Solder
Boards requiring use of lead-free solder are printed with a lead free mark (LF) indicating the solder
contains no lead.
(Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular
size.)
: LEAD FREE MARK
m
. Be sure to use the lead-free solder for the printed circuit board printed with the lead free mark.
. The lead-free solder melts at a temperature about 40 dC higher than the ordinary solder, therefore, it is
recommended to use the soldering iron having a temperature regulator.
. The ordinary soldering iron can be used but the iron tip has to be applied to the solder joint for a slightly
longer time. The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so
be careful.

Sony EVI-HD7V Specifications

General

Maximum resolution	1920 x 1080 pixels
Supported video modes	480p, 720p, 1080i, 1080p
Automatic gain control	Yes
Pan range	-100 - 100 °
Pan speed	300 °/sec
White balance	Auto, Indoor, Manual, Outdoor, Push
Tilt angle range	-25 - 25 °
Camera shutter speed	1/60 - 1/10000 s
Minimum illumination	15 lx
Sensor type	CMOS
Optical sensor size	1/3 \
Digital zoom	40 x
Optical zoom	10 x
Focal length range	3.4 - 33.9 mm
Maximum aperture number	2.1
Built-in HDD	No
Type	CCTV security camera
Placement supported	Indoor
Light exposure modes	Aperture priority AE, Auto, Manual
Connectivity technology	Wired
Form factor	-
Mounting type	Desk
Product color	Gray
Signal-to-Noise Ratio (SNR)	50 dB
DC output voltage	12
Power consumption (typical)	26.4 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Interface	RS-232C
Cables included	AC
Number of cameras	1

Weight and Dimensions

Depth	132 mm
Width	250 mm
Height	152 mm
Weight	1500 g
