Sony GTK-XB90 Service Manual

GTK-XB90
4

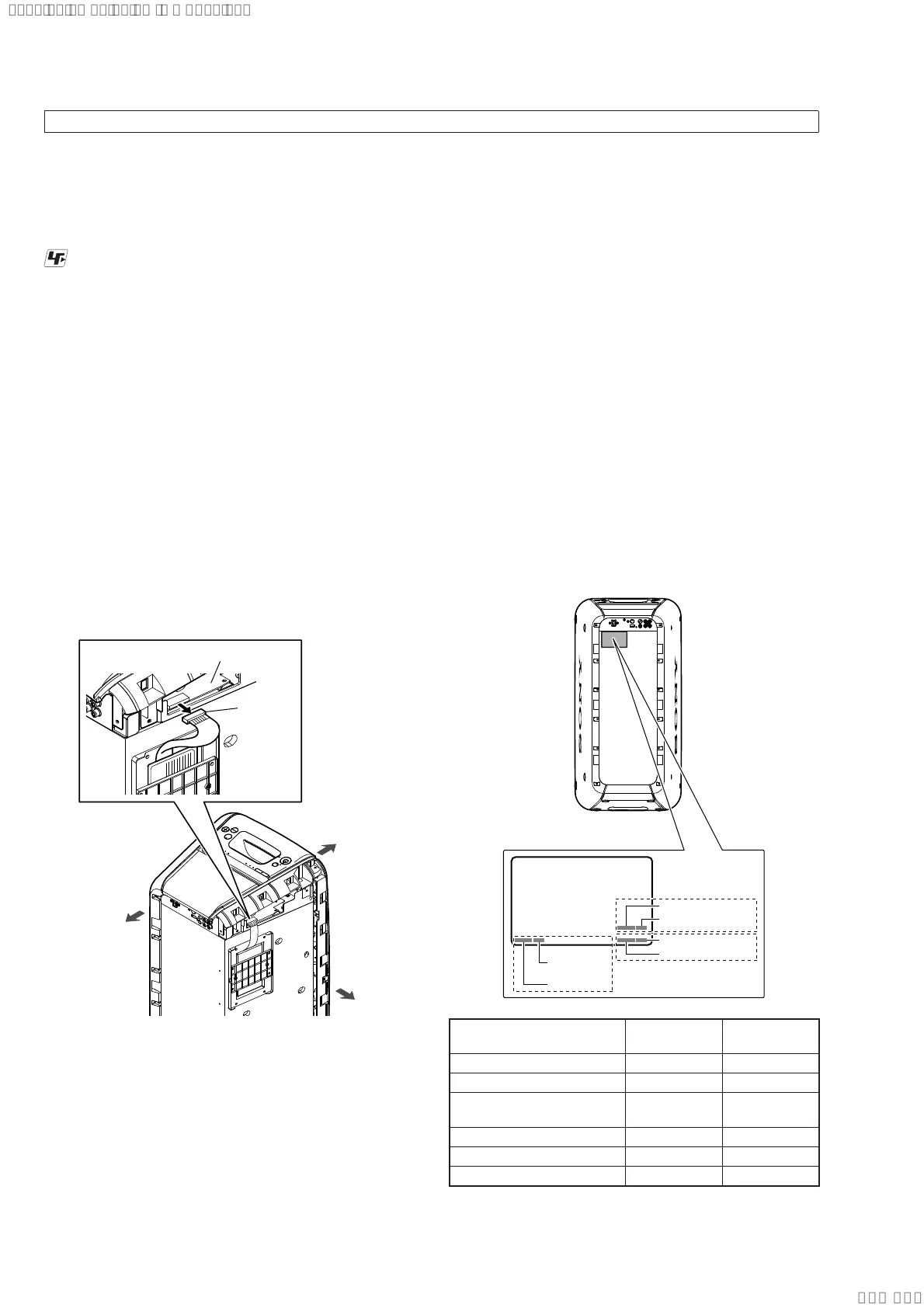

SECTION 1
SERVICING NOTES
The SERVICING NOTES contains important information for servicing. Be sure to read this section before repairing the unit.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
• Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
• Strong viscosity
Unleaded solder is more viscous (sticky, less prone to fl ow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
• Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
NOTE FOR DISASSEMBLY
Lithium ion battery is installed in this unit.
When disassembling this unit, be sure to disassembly after remov-
ing the connector of lithium ion battery from board.
MAIN board
front side
left side
rear side
lithium ion
battery
connector
(XP3)
– The state that left side panel is removed –
DESTINATION ABBREVIATIONS
The following abbreviations for model destinations are used in this
service manual.
• Abbreviations
AEP : European area (Except for UK, Ireland), East European
area, CIS area (Moldova) and Middle Eastern area (Is-
rael, Jordan) models
AR : Argentina model
AUS : Australian and New Zealand models
CND : Canadian and Latin American area (Puerto Rico) models
E4 : Middle Eastern area (Bahrain, Lebanon, Libya, Oman,
Pakistan, Qatar, Syria, Yemen) and African area (Algeria,
Angola, Egypt, Ethiopia, Morocco, Tunisia) models
E93 : Middle Eastern area (Iraq, Kuwait, Saudi Arabia, UAE),
Southeast Asian area (Sri Lanka) and African area (Ke-
nya, Nigeria, Tanzania) models
LA : Latin American area (Except for Argentina, Puerto Rico)
model
RU : CIS area (Except for Moldova) model
SP : Southeast Asian area (Except for India, Thailand, Sri Lan-
ka) model
TH : Thai model
UK : European area (UK, Ireland) model
MODEL IDENTIFICATION
Distinguish by Part No. and destination code on the rear side of
the main unit.
(E4, E93)
(Except E4, E93, AR, LA)
(AR, LA)
– Rear view –
MODEL NUMBER LABEL
SONY®
Part No.
Destination code
Part No.
Destination
code
Part No.
Destination code
Destination Part No.
Destination
code
US, CND models (UC2)
4-697-360-0[]
UC2
AEP, UK models (CEL, CEK)
4-697-361-0[]
CEL/CEK
AUS, RU, SP models
(AU1, RU1, SP6)
4-697-362-0[]
AU1/RU1/SP6
E4, E93 models (E4, E93)
4-697-363-0[]
E4/E93
AR, LA models (AR2, LA9)
4-697-364-0[]
LA9/AR2
TH model (TH1)
4-697-365-0[]
TH1
Ver. 1.2
SYSSET
2020/08/2022:42:53(GMT+09:00)

Sony GTK-XB90 Specifications

General

Type	Home audio mini system
Product color	Black
Optical disc player	No
Karaoke	Yes
Speaker type	-
RMS rated power	- W
Tweeter diameter	51 mm
Power source	Battery
Power consumption (standby)	0.5 W
Audio (L/R) in	1
Battery life (max)	16 h
Battery recharge time	4.5 h

Weight and Dimensions

Depth	330 mm
Width	330.2 mm
Height	660.4 mm
Weight	13607 g
