GTK-XB90
8

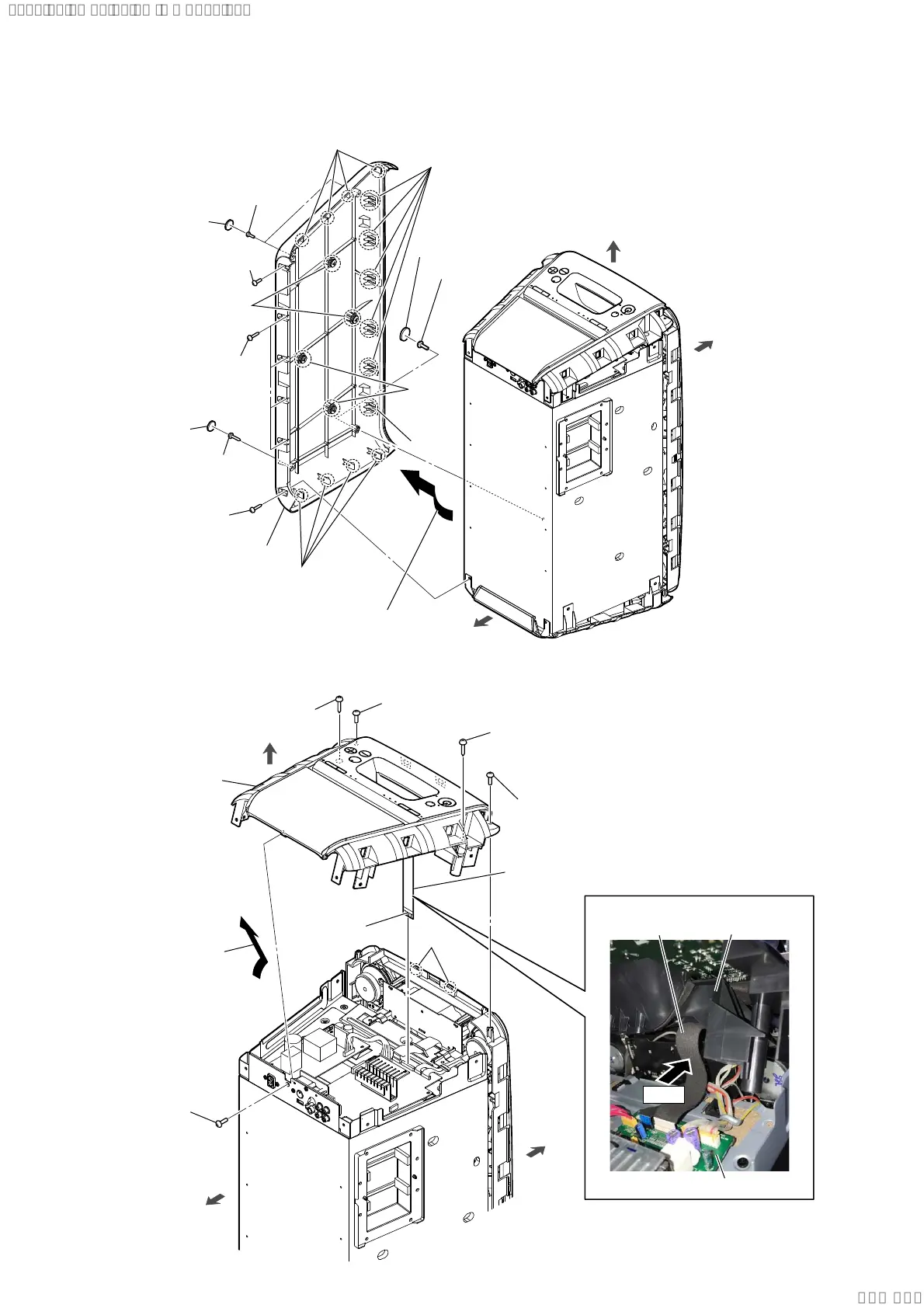

2-5. TOP PANEL BLOCK
top side
front side
rear side
3 Remove the top panel block
in the direction of the arrow.
6 top panel block
1 screw
(M3 u 10)
1 screw
(M3 u 10)
2 screw
(M4 u 20)
terminal side
4 FFC (BT-MAIN)
(XP35)
5 two
claws
:LUHVHWWLQJ
MAIN board
Push.
5HDUYLHZ
FFC (BT-MAIN)
top panel block
1 screw
(M3 u 10)
2 screw
(M4 u 20)
2-4. SIDE PANEL R (RIGHT SIDE)
6 side panel R
5 Remove the side panel R
in the direction of the arrow.
2 two screws
(M3 u 10)
2 screw
(M3 u 10)
1 foot pad
3 screw
(M4 u 20)
top side
front side
rear side
1 foot pad
3 screw
(M4 u 20)
3 four screws
(M4 u 20)
3 screw
(M4 u 20)
two bosses
two
bosses
4 claw
4 five claws
4 four claws
4 four claws
1 two foot pads
SYSSET
2020/08/2022:42:53(GMT+09:00)
