HBD-E770W
10

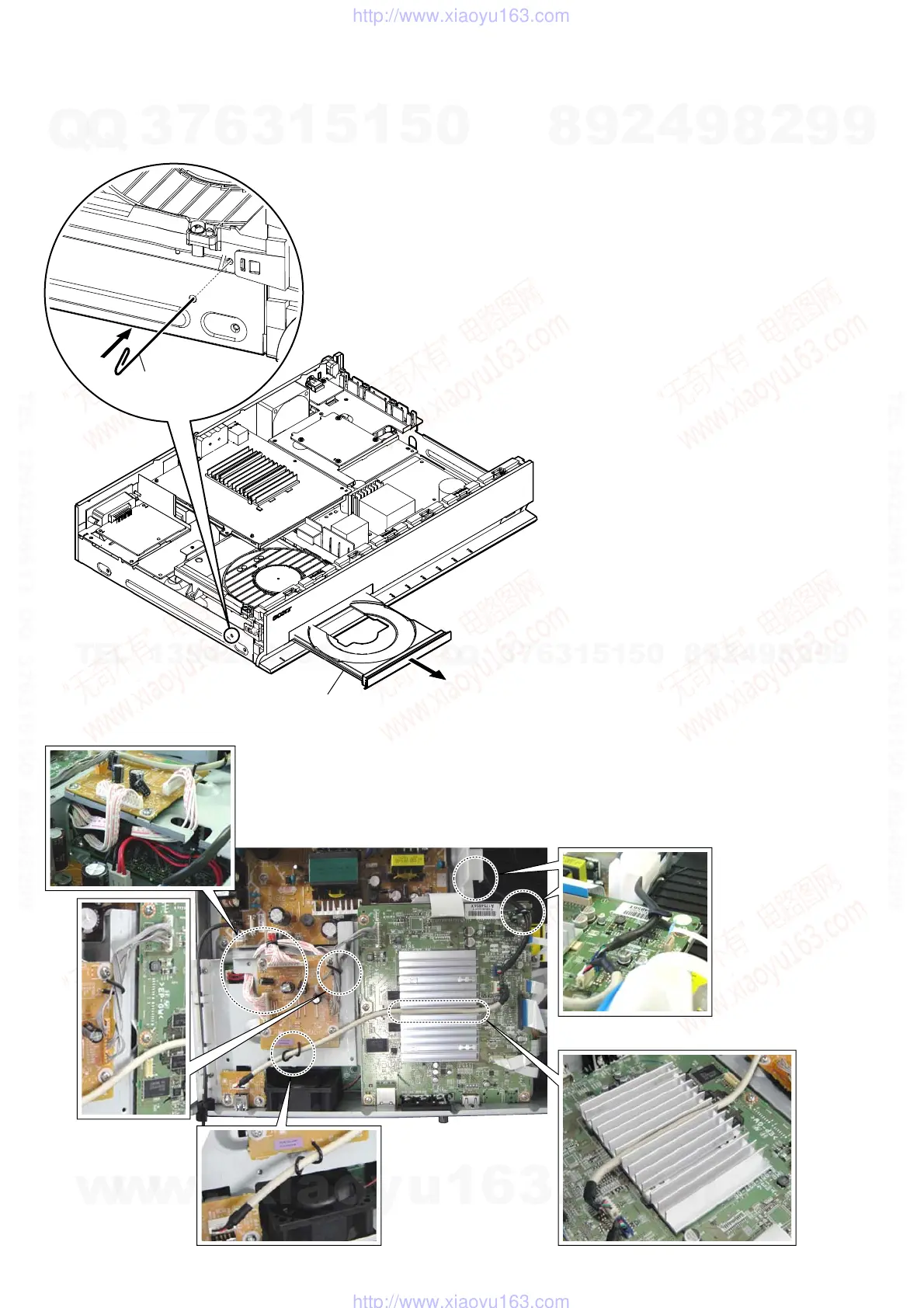

HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF
Note 1: After the case is removed, this work is done.
Note 2: Please prepare the thin wire (clip etc.).
1 Remove the case.
(Illustration of disassembly is omitted.)
3
tray
2
clip etc.
PROCESSING OF HARNESS (USB)
– Top view –
