Sony HBD-E770W - Include Board and Back Panel Block Disassembly

HBD-E770W
15

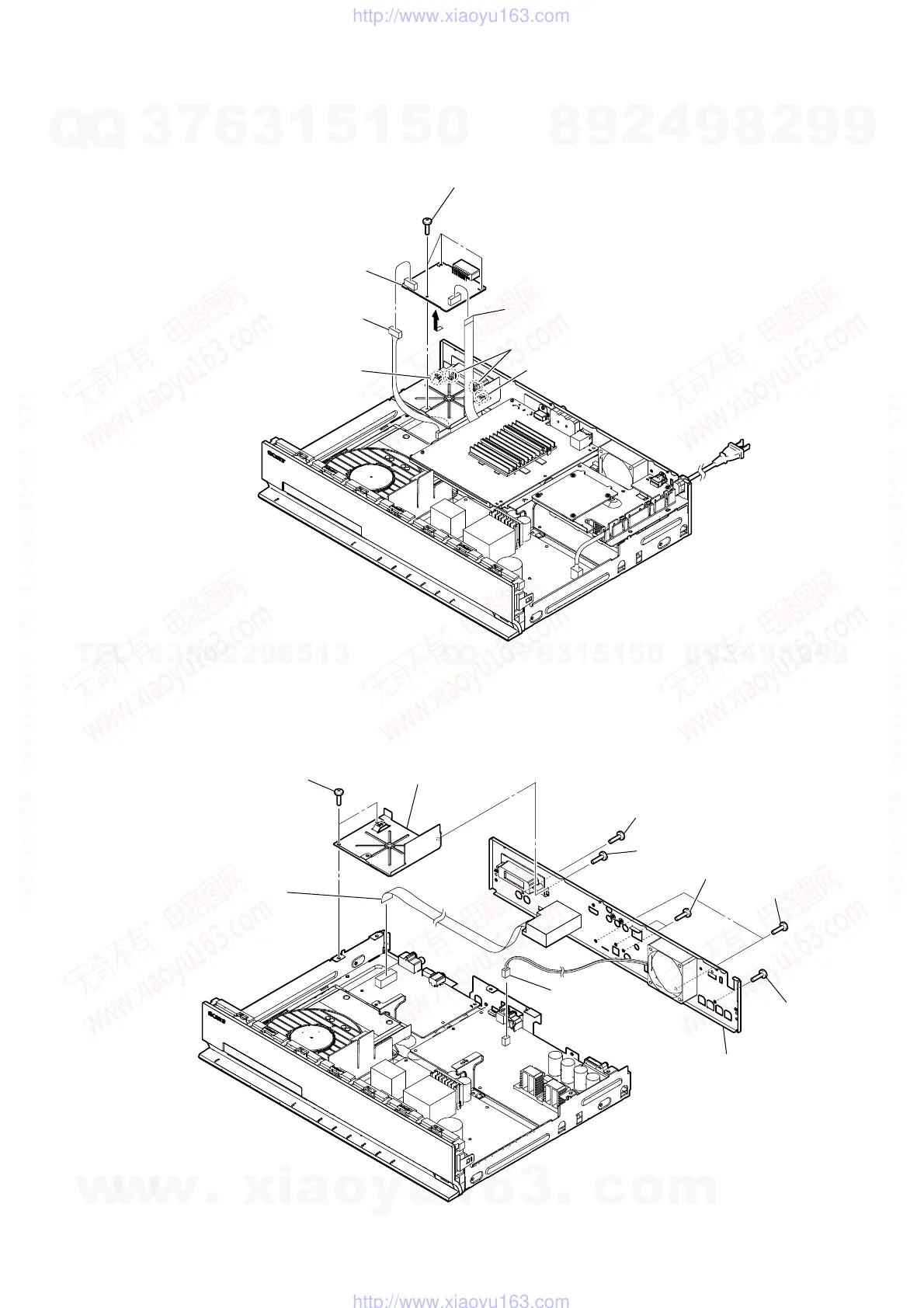

2-8. INCLUDE BOARD
2-9. BACK PANEL BLOCK
3 three screws
(BV3)
4
1 connector (CN204)
5 INCLUDE board
2 wire (flat type) (15 core)
(CN200)
two claws
guide rib
guide rib
4 wire (flat type) (9 core)
(CN10)
2 two screws
(BV3)
7 screw (BV3)
1 screw (BV3)
3 bracket (S-AIR TAKE)
7 screw (BV3)
8 back panel block
7 two screws (BV3)
6 two screws (BV3)
5 fan connector
(CN3000)
