92
HBD-E770W
SECTION 6
EXPLODED VIEWS
1 X-2546-856-2 PANEL FRONT ASSY (10EZ V)
2 3-077-331-21 +BV3 (3-CR)
3 4-161-650-01 BUTTON (PLAY-POW-EZ)
4 4-161-647-31 ESCUTCHEON (EZ)
5 X-2546-720-1 LOADING PANEL ASSY (10EZ)
8 4-161-688-01 CASE (EZ)
9 3-704-515-32 SCREW (BV/RING)
10 A-1746-097-A FL BOARD, COMPLETE
#1 7-685-504-19 SCREW +BTP 2X6 TYPE2 N-S
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Color Indication of Appearance Parts Ex-
ample:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts Color Cabinet’s Color

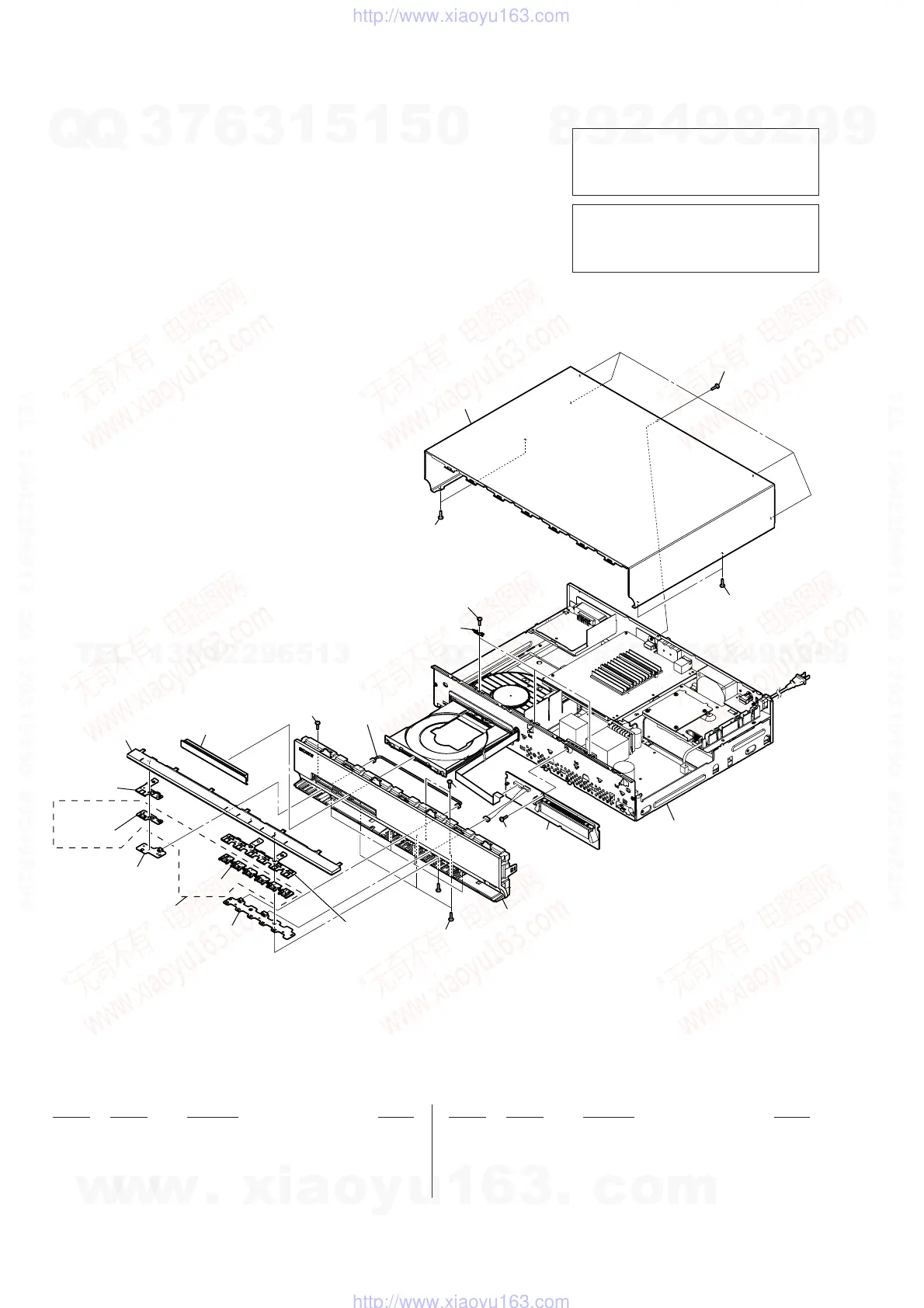

6-1. CASE, FRONT PANEL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
1
not supplied
(KEY board)
MB-134 board section
#1
2
2
2
2
2
10
3
4
5
not supplied
(P-KEY board)
not supplied
not supplied
not supplied
not
supplied
not
supplied
8
9
2
2
not
supplied
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
