64
HBD-TZ210/TZ230/TZ510/TZ630/TZ710
not supplied
CDM85MB-DVBU102
not supplied
not supplied
not supplied
not supplied
152
151
153
153
154
155
153
153
153
153
153
153
153
151
F901
not supplied
not supplied
(TZ210: CND, AUS, EA, HK, RU, SAF)
(TZ230/TZ510: CND, SAF, TW)
(TZ630/TZ710: HK, CH, RU)
153
153
not supplied
not supplied
not supplied
151 4-151-413-01 CUSHION (EGD)
152 1-828-291-11 WIRE (FLAT TYPE) (5 CORE)
153 3-077-331-21 +BV3 (3-CR)
154 A-1745-469-A POWER BOARD, COMPLETE (AEP,UK)
154 A-1745-471-A POWER BOARD, COMPLETE
(E3,E12,AUS,AR,HK,PH,RU,SAF,SP,TH,CH)
154 A-1745-473-A POWER BOARD, COMPLETE (CND,TW)
154 A-1745-475-A POWER BOARD, COMPLETE (MX)
154 A-1745-477-A POWER BOARD, COMPLETE (E32,EA)
9
155 A-1746-824-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:CND)
9
155 A-1746-825-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ230:AEP)
9
155 A-1746-826-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ230:UK)
9
155 A-1746-827-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:E12)
9
155 A-1746-828-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:SAF)
9
155 A-1746-829-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:PH,SP,TH)
9
155 A-1746-830-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:AUS)
9
155 A-1746-831-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:E32)
9
155 A-1746-832-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:MX)
9
155 A-1746-833-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ510:SP,TH)
9
155 A-1746-834-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ510:TW)
9
155 A-1746-835-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ630:AEP)
9
155 A-1746-836-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ710:CH)
9
155 A-1760-404-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:E3)
9
155 A-1760-415-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:HK)
9
155 A-1760-447-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:AR)
9
155 A-1760-469-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ510:CND)
9
155 A-1760-480-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ510:E32)
9
155 A-1760-487-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ510:MX)
9
155 A-1760-505-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ710:E3)
9
155 A-1760-520-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ710:TH)
9
155 A-1760-527-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ710:HK)
9
155 A-1760-534-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ710:MX)
9
155 A-1770-774-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:EA)
9
155 A-1771-236-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ210:RU)
9
155 A-1771-247-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ510:SAF)
9
155 A-1771-254-A MAIN BOARD, COMPLETE (for SERVICE)
(TZ710:RU)
0
F901 1-533-311-12 FUSE, GLASS (DIA. 5) (8A/125V) (CND,MX,TW)
0
F901 1-576-232-51 FUSE (H.B.C.) (5A/250V)
(EXCEPT CND,E32,EA,MX,TW)
0
F901 1-576-233-51 FUSE (H.B.C.) (6.3A/250V) (E32,EA)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

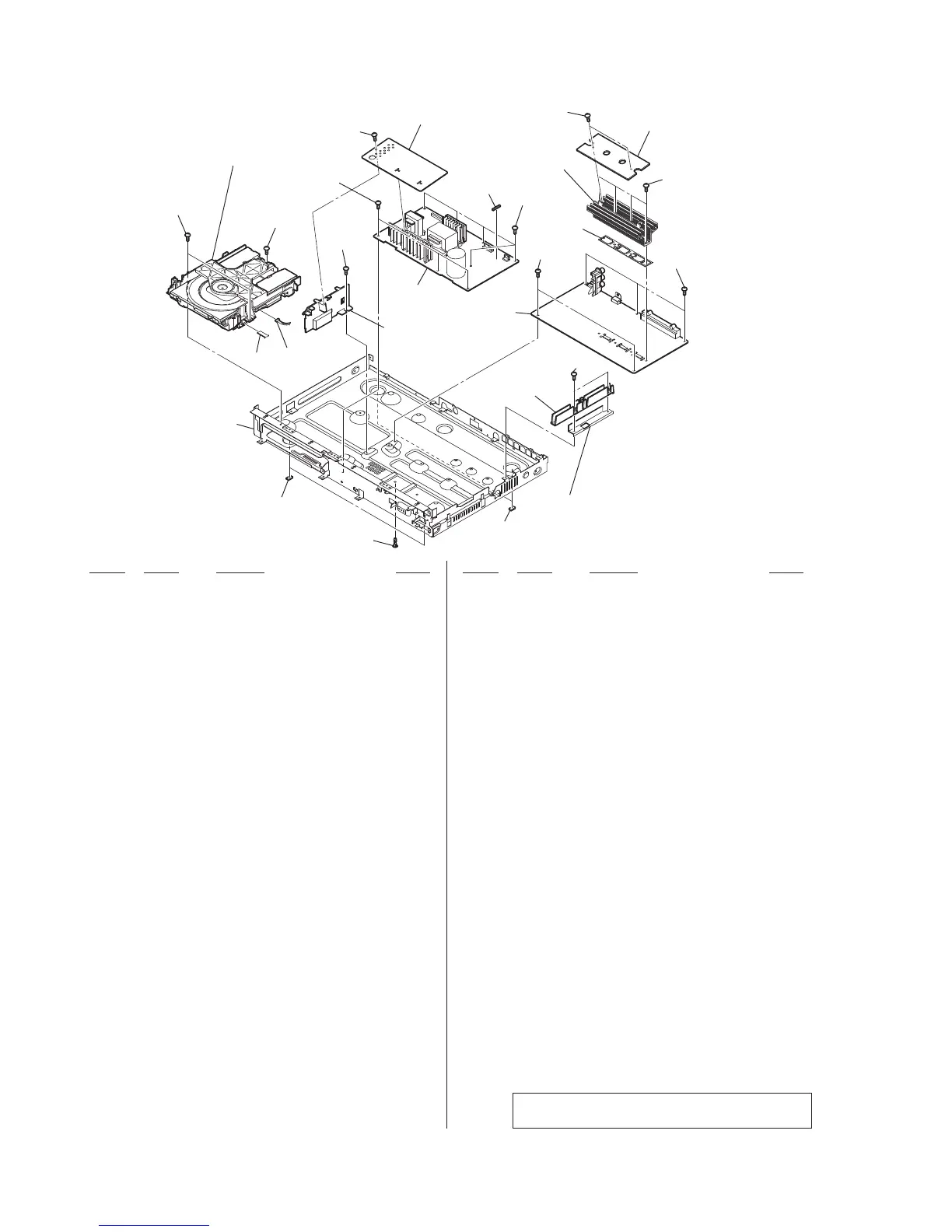

6-4. CHASSIS SECTION
Note:
If the wire (
fl
at type) was replaced, fold it some as the
wire (
fl
at type) before replacement.
Ver. 1.1
