Sony HBD-TZ710 - DVD Mechanism Deck Section (CDM85 MB-DVBU102)

65
HBD-TZ210/TZ230/TZ510/TZ630/TZ710
201 A-1749-923-A CDM85 (MB) ASSY
202 3-088-371-01 BELT
203 4-974-725-11 SCREW (M1.7X2.5), P
204 4-674-137-11 SCREW (PTP2X5)
205 2-634-618-01 INSULATOR
206 3-087-599-01 SCREW, INSULATOR
0 207 8-820-321-12 OPTICAL PICK-UP (KHM-313CAA/C2RP1)
208 1-828-773-51 WIRE (FLAT TYPE) (24 CORE)
209 3-113-851-01 SHEET (E12)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

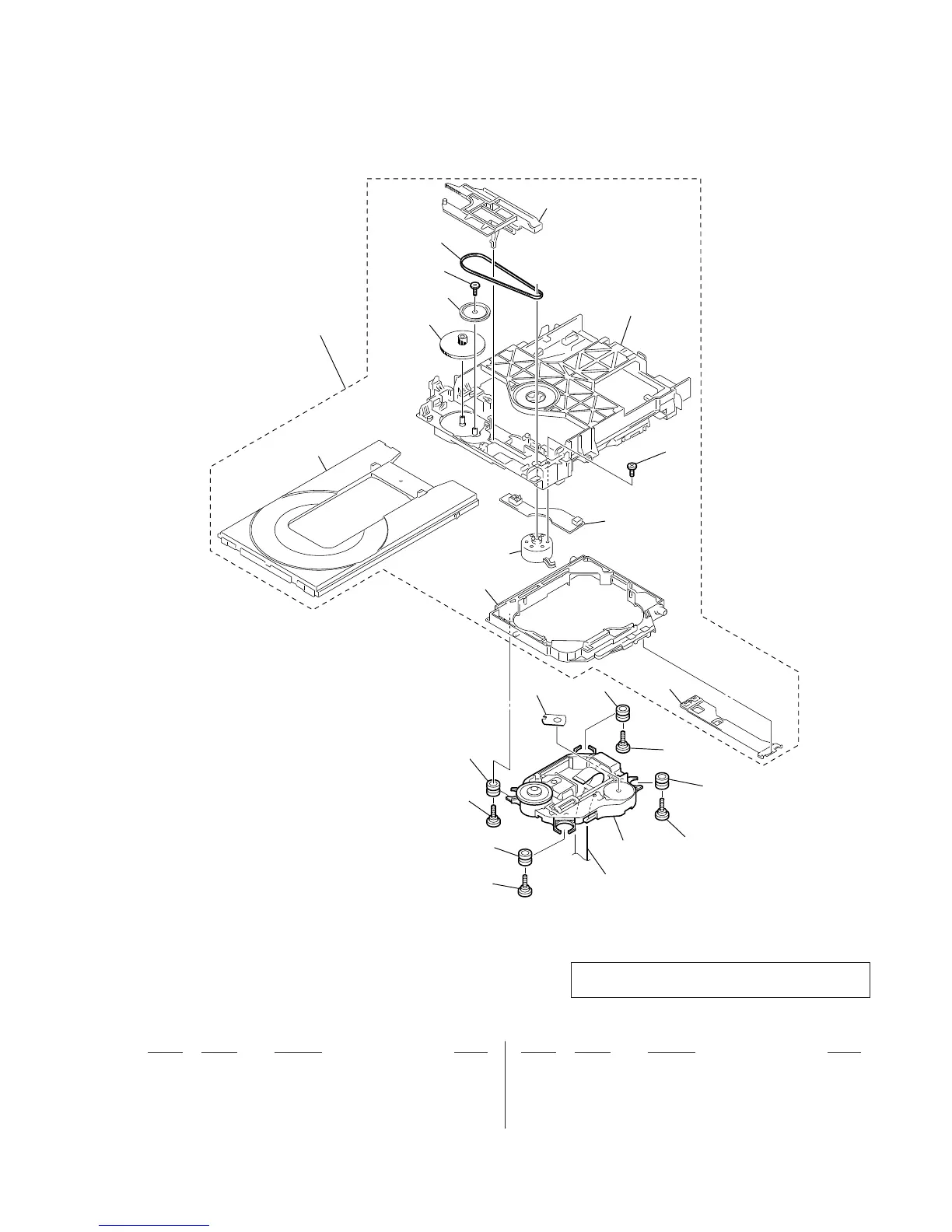

6-5. DVD MECHANISM DECK SECTION
(CDM85MB-DVBU102)
Note: If the wire ( fl at type) was replaced, fold it some as the
wire (
fl at type) before replacement.
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
(MS-203 board)
not
supplied
201
204
202
203
205
205
205
205
207
208
209
206
206
206
206
