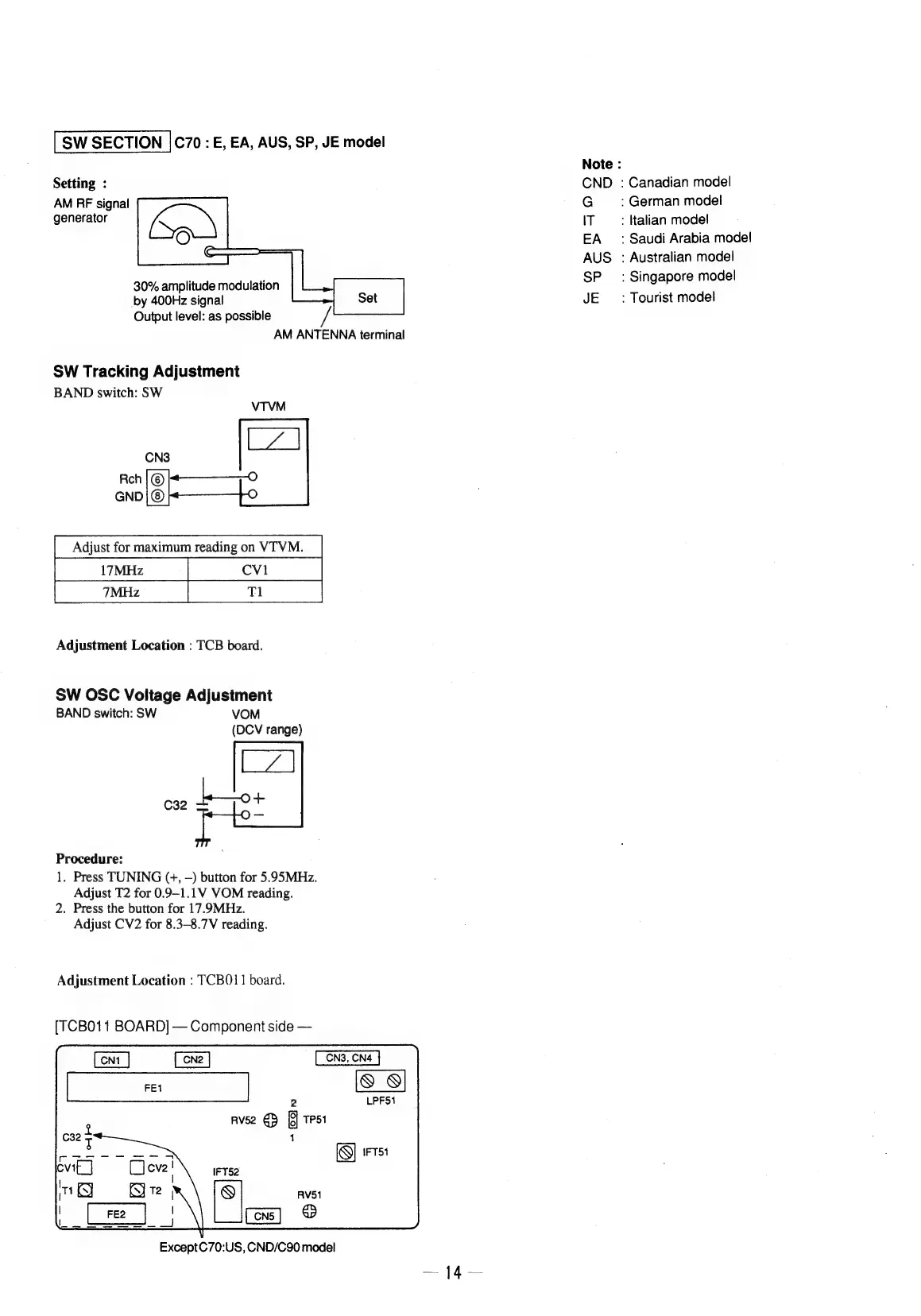

Sony HCD-C70 - Page 14

SW SECTION |C70 : E, EA, AUS, SP, JE model
Setting :
AM PF signal
generator
30% amplitude modulation
by 400Hz signal
Output level: as possible
AM ANTENNA terminal
SW Tracking Adjustment
BAND switch: SW
Reh
GND
Adjust for maximum reading on VTVM.
Adjustment Location : TCB board.
SW OSC Voltage Adjustment
BAND switch: SW VOM
(DCV range)
Procedure:
1. Press TUNING (4, —) button for 5.95MHz.
Adjust T2 for 0.9-1.1V VOM reading.
2. Press the button for 17.9MHz.
Adjust CV2 for 8.3-8.7V reading.
Adjustment Location : TCBO! 1 board.
[TCBO11 BOARD] — Component side —
2
Rvs2 €5 [| 1Ps1
RV51
©
ExceptC70:US, CND/C90 model
Note :
CND :
EA
AUS :
SP
JE
Canadian model
: German model
: Italian model
: Saudi Arabia mode!
Australian model
: Singapore model
: Tourist model
