Sony HCD-C70 - CD Mechanism Section 1 (CDM23 B-5 BD3); CD Mechanism Section 2 (CDM23 B-S5 BD3)

7-3.

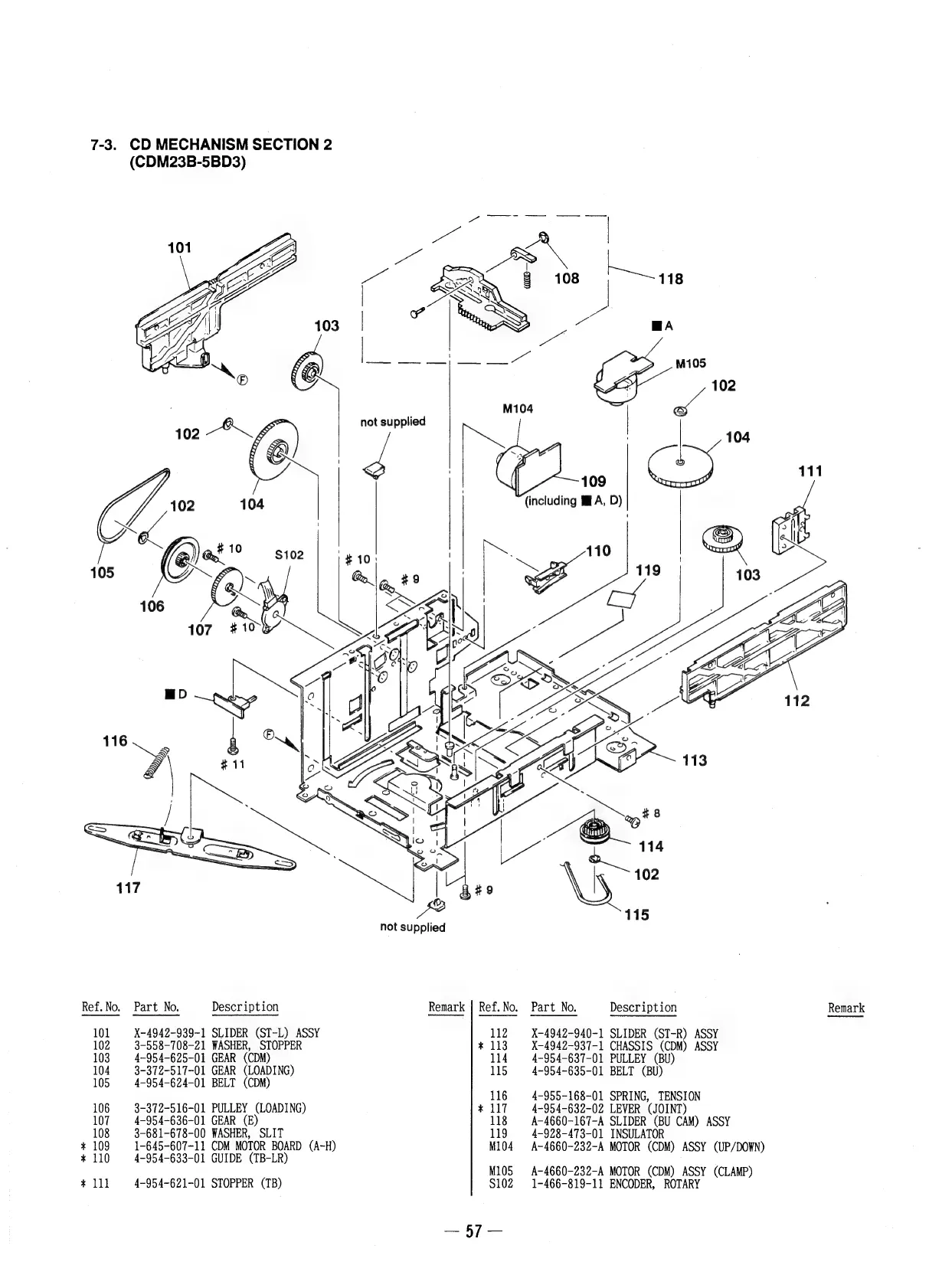

CD MECHANISM SECTION 2
(CDM23B-5BD3)
not supplied
. Part No. Description Remark | Ref. No.
X-4942-939-1 SLIDER (ST-L) ASSY 112
3-558-708-21 WASHER, STOPPER * 113
4~954-625-01 GEAR (CDM) 114
3-372-517-01 GEAR (LOADING) 115
4-954-624-01 BELT (CDM) a
3-372-516-01 PULLEY (LOADING) x 117
4-954-636-01 GEAR (E) 118
3-681-678-00 WASHER, SLIT 119
1-645-607-11 CDM MOTOR BOARD (A-H) M104
4-954-633-01 GUIDE (TB-LR) gine
4-954-621-01 STOPPER (TB) $102
Part No. Description Remark
X-4942-940-1 SLIDER (ST-R) ASSY
X-4942-937-1 CHASSIS (CDM) ASSY
4-954-637-01 PULLEY (BU)
4-954-635-01 BELT (BU)
4-955-168-01 SPRING, TENSION
4-954-632-02 LEVER (JOINT)
A-4660-167-A SLIDER (BU CAM) ASSY
4-928-473-01 INSULATOR
A-4660-232-A MOTOR (CDM) ASSY (UP/DOWN)
A-4660-232-A MOTOR (CDM) ASSY (CLAMP)
1-466-819-11 ENCODER, ROTARY
