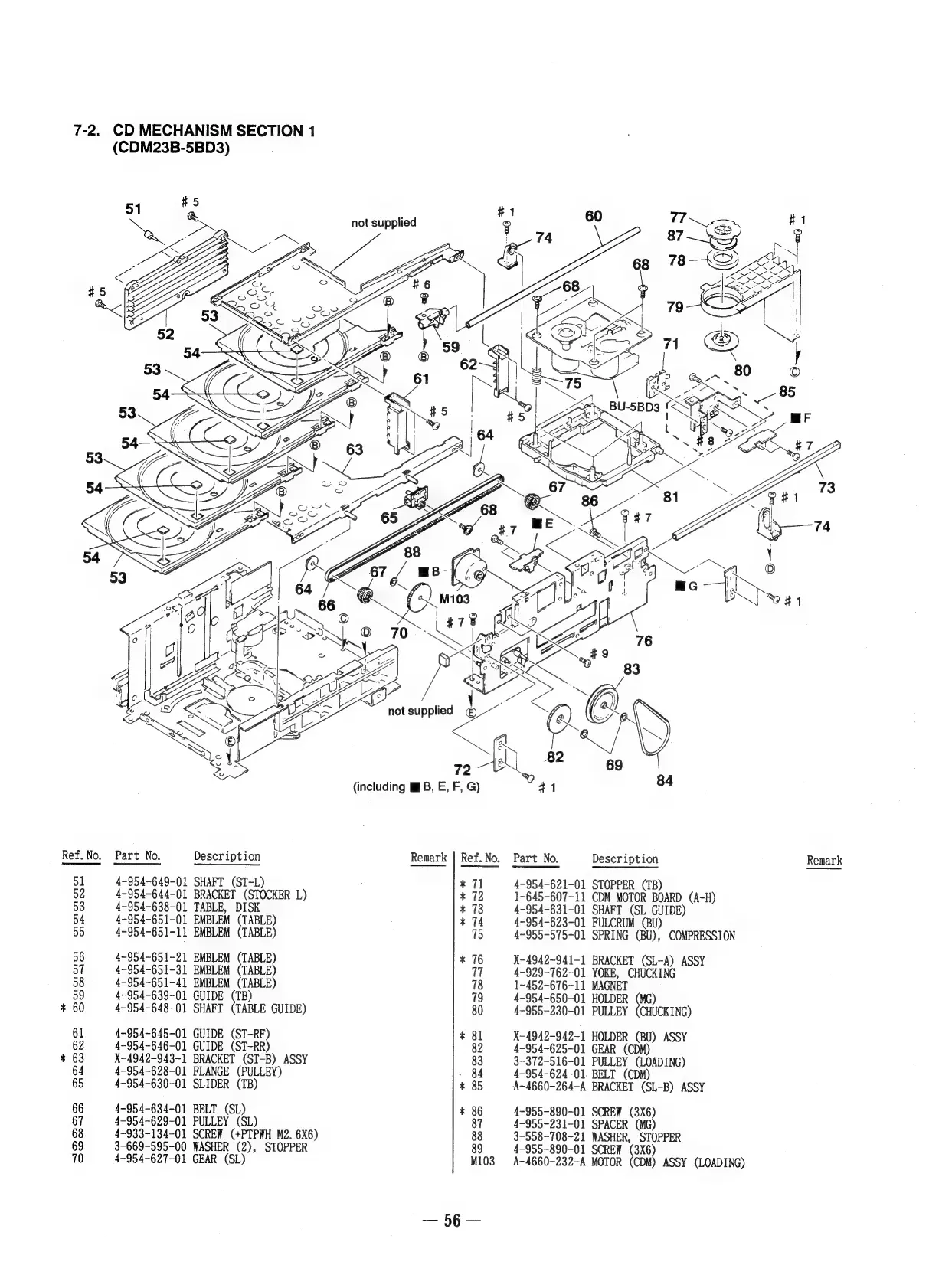

7-2. CD MECHANISM SECTION 1
(CDM23B-5BD3)
Part No. Description
51 4-954-649-01 SHAFT (ST-L)
52 4-954-644-01 BRACKET (STOCKER L)
53 4-954-638-01 TABLE, DISK
54 4-954-651-01 EMBLEM (TABLE)
55 4~954-651-11 EMBLEM (TABLE)
56 4-954-651-21 EMBLEM (TABLE)
a7 4-954-651-31 EMBLEM (TABLE)
58 4-954-651-41 EMBLEM (TABLE)
59 4-954-639-01 GUIDE (TB)
4-954-648-01 SHAFT (TABLE GUIDE)
61 4-954-645-01 GUIDE (ST-RF)
62 4-954-646-01 GUIDE (ST-RR)
X-4942-943-1 BRACKET (ST-B) ASSY
64 4-954-628-01 FLANGE (PULLEY)
65 4-954-630-01 SLIDER (TB)
66 4-954-634-01 BELT (SL)
67 4-954-629-01 PULLEY (SL)
68 4-933-134-01 SCREW (+PTPWH M2. 6X6)
69 3-669-595-00 WASHER (2), STOPPER
70 4-954-627-01 GEAR (SL)
not supplied
Remark | Ref. No.
* 71
* 72
* 73
* T4
75
Part No.
Description Remark
4-954-621-01 STOPPER (TB)
1-645-607-11 CDM MOTOR BOARD (A-H)
4-954-631-01 SHAFT (SL GUIDE)
4-954-623-01 FULCRUM (BU)
4-955-575-01 SPRING (BU), COMPRESSION
X-4942-941-1 BRACKET (SL-A) ASSY
4-929-762-01 YOKE, CHUCKING
1-452-676-11 MAGNET
4-954-650-01 HOLDER (MG)
4-955-230-01 PULLEY (CHUCKING)
X-4942-942-1 HOLDER (BU) ASSY
4-954-625-01 GEAR (CDM)
3-372-516-01 PULLEY (LOADING)
4-954-624-01 BELT (CDM)
A-4660-264-A BRACKET (SL-B) ASSY
4-955-890-01 SCREW (3X6)
4-955-231-01 SPACER (MG)
3-558-708-21 WASHER, STOPPER
4-955-890-01 SCREW (3X6)
A-4660-232-A MOTOR (CDM) ASSY (LOADING)
