Sony HCD-C70 - Section7; Exploded Views

NOTE:
e -XX, -X mean standardized parts, so they
may have some difference from the
original one.
¢ Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE)... (RED)
t t
Parts color Cabinet’s color
¢ Hardware (# mark) list is given in the last
of this parts list.

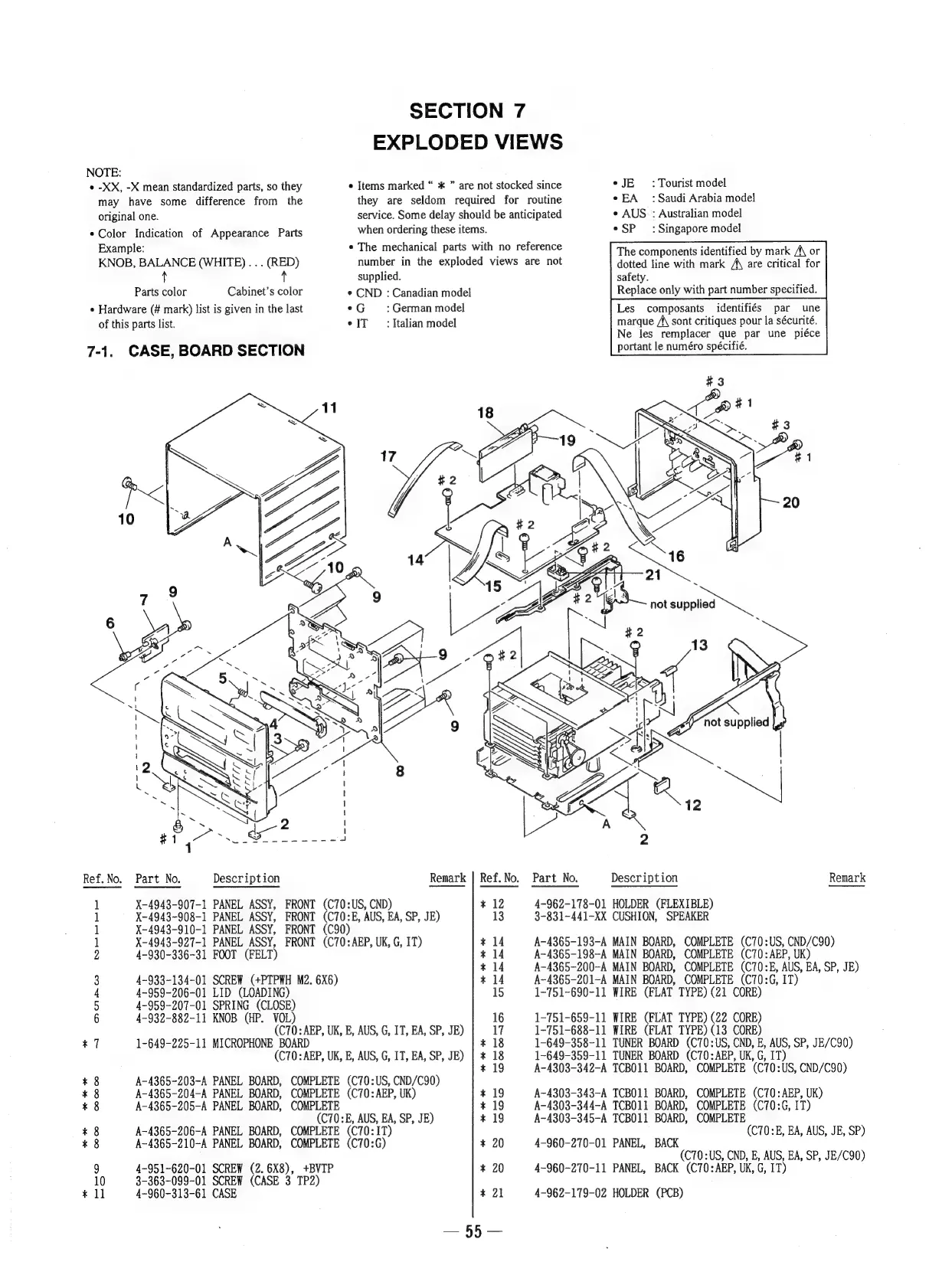

7-1. CASE, BOARD SECTION
SECTION 7
EXPLODED VIEWS
¢ Items marked “ * ” are not stocked since
they are seldom required for routine
service. Some delay should be anticipated
when ordering these items.
e The mechanical parts with no reference
number in the exploded views are not
¢ JE — : Tourist model
¢e EA : Saudi Arabia model
e AUS : Australian model
* SP __: Singapore model
The components identified by mark A\ or
supplied.
¢ CND : Canadian model
*G : German model
°IT _ : Italian model
dotted line with mark A\ are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une
marque /\ sont critiques pour la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
Ref. No. Part No. Description Remark | Ref.No. Part No.
1 X-4943-907-1 PANEL ASSY, FRONT (C70:US, CND) * 12
1 X-4943-908-1 PANEL ASSY, FRONT (C70:E, AUS, EA, SP, JE) 13
1 X-4943-910-1 PANEL ASSY, FRONT (C90)
1 X-4943-927-1 PANEL ASSY, FRONT (C70:AEP, UK, G, IT) * 14
2 4-930-336-31 FOOT (FELT) * 14
* 14
3 4-933-134-01 SCREW (+PTPWH M2. 6X6) * 14
4 4-959-206-01 LID (LOADING) 15
5 4-959-207-01 SPRING (CLOSE)
6 4-932-882-11 KNOB (HP. VOL) 16
(C70:AEP, UK, E, AUS, G, IT, EA, SP, JE) 17
*7 1-649-225-11 MICROPHONE BOARD * 18
(C70:AEP, UK, E, AUS, G, IT, EA, SP, JE) | * 18
* 19
* 8 A-4365-203-A PANEL BOARD, COMPLETE (C70:US, CND/C90)
x 8 A-4365-204-A PANEL BOARD, COMPLETE (C70:AEP, UK) * 19
x 8 A-4365-205-A PANEL BOARD, COMPLETE * 19
(C70:E, AUS, EA, SP, JE) * 19
* 8 A-4365-206-A PANEL BOARD, COMPLETE (C70:IT)
* 8 A~4365-210-A PANEL BOARD, COMPLETE (C70:G) * 20
9 4-951-620-01 SCREW (2. 6X8), +BVTP * 20
10 3-363-099-01 SCREW (CASE 3 TP2)
* 1l 4-960-313-61 CASE * 21
Description
Remark
4-962-178-01 HOLDER (FLEXIBLE)
3-831-441-XX CUSHION, SPEAKER
A-4365-193-A MAIN BOARD, COMPLETE (C70:US, CND/C90)
A-4365-198-A MAIN BOARD, COMPLETE (C70: AEP, UK)
A-4365-200-A MAIN BOARD, COMPLETE (C70:E, AUS, EA, SP, JE)
A-4365-201-A MAIN BOARD, COMPLETE (C70:G, IT)
1-751-690-11 WIRE (FLAT TYPE) (21 CORE)
1-751-659-11 WIRE (FLAT TYPE) (22 CORE)
1-751-688-11 WIRE (FLAT TYPE) (13 CORE)
1-649-358-11 TUNER BOARD (C70:US, CND, E, AUS, SP, JE/C90)
1-649-359-11 TUNER BOARD (C70:AEP, UK, G, IT)
A-4303-342-A TCBO11 BOARD, COMPLETE (C70:US, CND/C90)
A-4303-343-A TCBO11 BOARD, COMPLETE (C70: AEP, UK)
A-4303-344-A TCBO11 BOARD, COMPLETE (C70:G, IT)
A-4303-345-A TCBO11 BOARD, COMPLETE
(C70:E, EA, AUS, JE, SP)
4-960-270-01 PANEL, BACK
(C70:US, CND, E, AUS, EA, SP, JE/C90)
4-960-270-11 PANEL, BACK (C70:AEP, UK, G, IT)
4-962-179-02 HOLDER (PCB)
