Sony HCD-C70 - Electrical Parts List

NOTE:
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque \ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board
name.

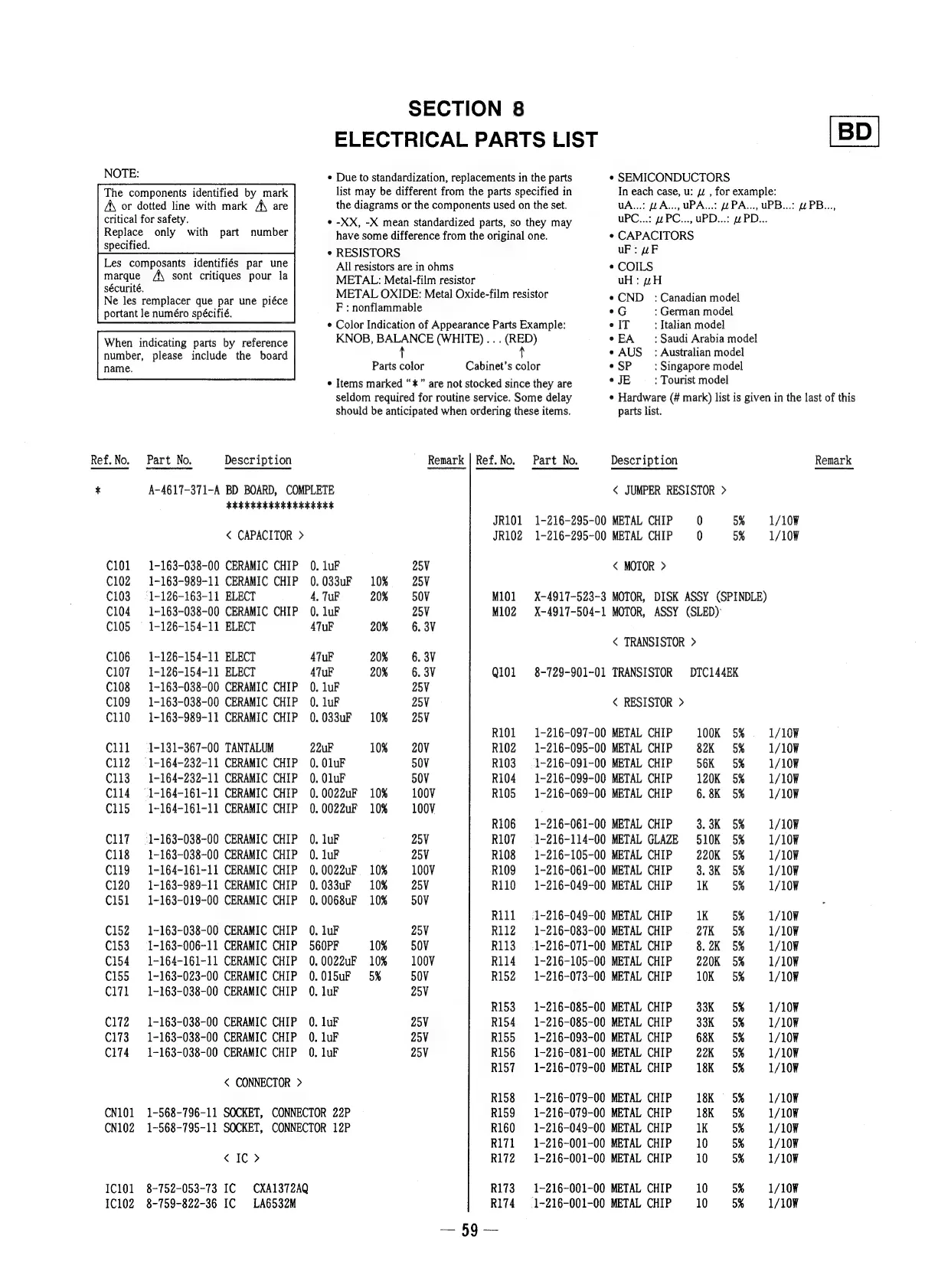

SECTION 8
ELECTRICAL PARTS LIST
¢ Due to standardization, replacements in the parts
list may be different from the parts specified in
the diagrams or the components used on the set.
* -XX, -X mean standardized parts, so they may
have some difference from the original one.
¢ RESISTORS
All resistors are in ohms
METAL: Metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F : nonflammable
¢ Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE)... (RED)
t t
Parts color Cabinet’s color
* Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
¢ SEMICONDUCTORS
In each case, u: uz , for example:
UA...: WA..., UPA... WZ PA..., UPB...:
uPC...: wPC..., uPD...: w PD...
*« CAPACITORS
uF: uF
« COILS
uH: wH
e CND : Canadian model
*G : German model
e IT : Italian model
EA — : Saudi Arabia model
¢ AUS: Australian model
«SP : Singapore model
«JE : Tourist model
UPB...,
¢ Hardware (# mark) list is given in the last of this
Remark
should be anticipated when ordering these items. parts list.
Ref.No. Part No. Description Remark | Ref.No. Part No. Description
* A-4617-371-A BD BOARD, COMPLETE < JUMPER RESISTOR >
EEAKKAKAKARAKEKAKS
JR101 1-216-295-00 METAL CHIP 0 5% 1/10¥
< CAPACITOR > JR102 1-216-295-00 METAL CHIP 0 5% 1/10¥
C101 1-163-038-00 CERAMIC CHIP 0. luF 25V < MOTOR >
C102 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V
C103. =: 1-126-163-11 ELECT 4, TuF 20% 50V M101 X-4917-523-3 MOTOR, DISK ASSY (SPINDLE)
C104 1-163-038-00 CERAMIC CHIP 0. luF 25V M102 X-4917-504-1 MOTOR, ASSY (SLED):
C105 = 1-126-154-11 ELECT ATuF 20% 6. 3V
< TRANSISTOR >
C106 = =1-126-154-11 ELECT ATuF 20% 6. 3V
C107} =1-126-154-11 ELECT ATuF 20% 6. 3V Q101 8-729-901-01 TRANSISTOR DTC144EK
C108 1~-163-038-00 CERAMIC CHIP 0. luF 25V
C109 1-163-038-00 CERAMIC CHIP 0. luF 25V < RESISTOR >
C110 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V
R101 1-216-097-00 METAL CHIP 100K 5% 1/10¥
C111 =: 1-131-367-00 TANTALUM 22uF 10% 20V R102 1-216-095-00 METAL CHIP 82K 5% 1/10¥
C112 = 1-164-232-11 CERAMIC CHIP 0. OluF 50V R103 =: 1-216-091-00 METAL CHIP 56K = 5% 1/10¥
C113: 1-164-232-11 CERAMIC CHIP 0. OluF 50V R104 1-216-099-00 METAL CHIP 120K 5% 1/10¥
C114. =: 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V R105 1-216-069-00 METAL CHIP 6.8K 5% 1/10¥
C115 = 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V
R106 1-216-061-00 METAL CHIP 3.3K 5% 1/10¥
C117 =: 1-163-038-00 CERAMIC CHIP 0. luF 25V R107 =: 1-216-114-00 METAL GLAZE 510K 5% 1/10¥
C118 1-163-038-00 CERAMIC CHIP 0. luF 25V R108 1-216-105-00 METAL CHIP 220K 5% 1/10¥
C119 =1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V R109 1-216-061-00 METAL CHIP 3.3K 5% 1/10¥
C120 =1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V R110 1-216-049-00 METAL CHIP 1K 5% 1/10¥
C151 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V
R111 =: 1-216-049-00 METAL CHIP 1K 5% 1/10¥
C152 1-163-038-00 CERAMIC CHIP 0. luF 25V R112 = 1-216-083-00 METAL CHIP 27K =5% 1/10¥
C153 =: 1-163-006-11 CERAMIC CHIP 560PF 10% 50V R113 =: 1-216-071-00 METAL CHIP 8.2K 5% 1/10¥
C154 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V R114 =1-216-105-00 METAL CHIP 220K 5% 1/10¥
C155 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V R152 1-216-073-00 METAL CHIP 10K 5% 1/10¥
C171 1-163-038-00 CERAMIC CHIP 0. luF 25V
R153: 1-216-085-00 METAL CHIP 33K = 55% 1/10¥
C172 =1-163-038-00 CERAMIC CHIP 0. luF 25V R154 1-216-085-00 METAL CHIP 33K 5% 1/10¥
C173 1-163-038-00 CERAMIC CHIP 0. luF 25V R155 1-216-093-00 METAL CHIP 68K 5% 1/10¥
C174 ~=1-163-038-00 CERAMIC CHIP 0. luF 25V R156 1-216-081-00 METAL CHIP 22K ob 1/10¥
R157 = 1-216-079-00 METAL CHIP 18K = 5% 1/10¥
< CONNECTOR >
R158 1-216-079-00 METAL CHIP 18K | 5% 1/10¥
CN101 1-568-796-11 SOCKET, CONNECTOR 22P R159 =1-216-079-00 METAL CHIP 18K 5% 1/10¥
CN102 1-568-795-11 SOCKET, CONNECTOR 12P R160 =1-216-049-00 METAL CHIP 1K 5% 1/10¥
R171 1-216-001-00 METAL CHIP 10 5% 1/10¥
< IC > R17Z =1-216-001-00 METAL CHIP 10 5% 1/10¥
IC101 8-752-053-73 IC CXA1372AQ R173: 1-216-001-00 METAL CHIP 10 5% 1/10¥
1C102 8-759-822-36 IC LA6532M R174 ~—- 1-216-001-00 METAL CHIP 10 5% 1/10¥
