Sony HCD-C70 - Section6; Diagrams; Circuit Boards Location

SECTION 6
DIAGRAMS

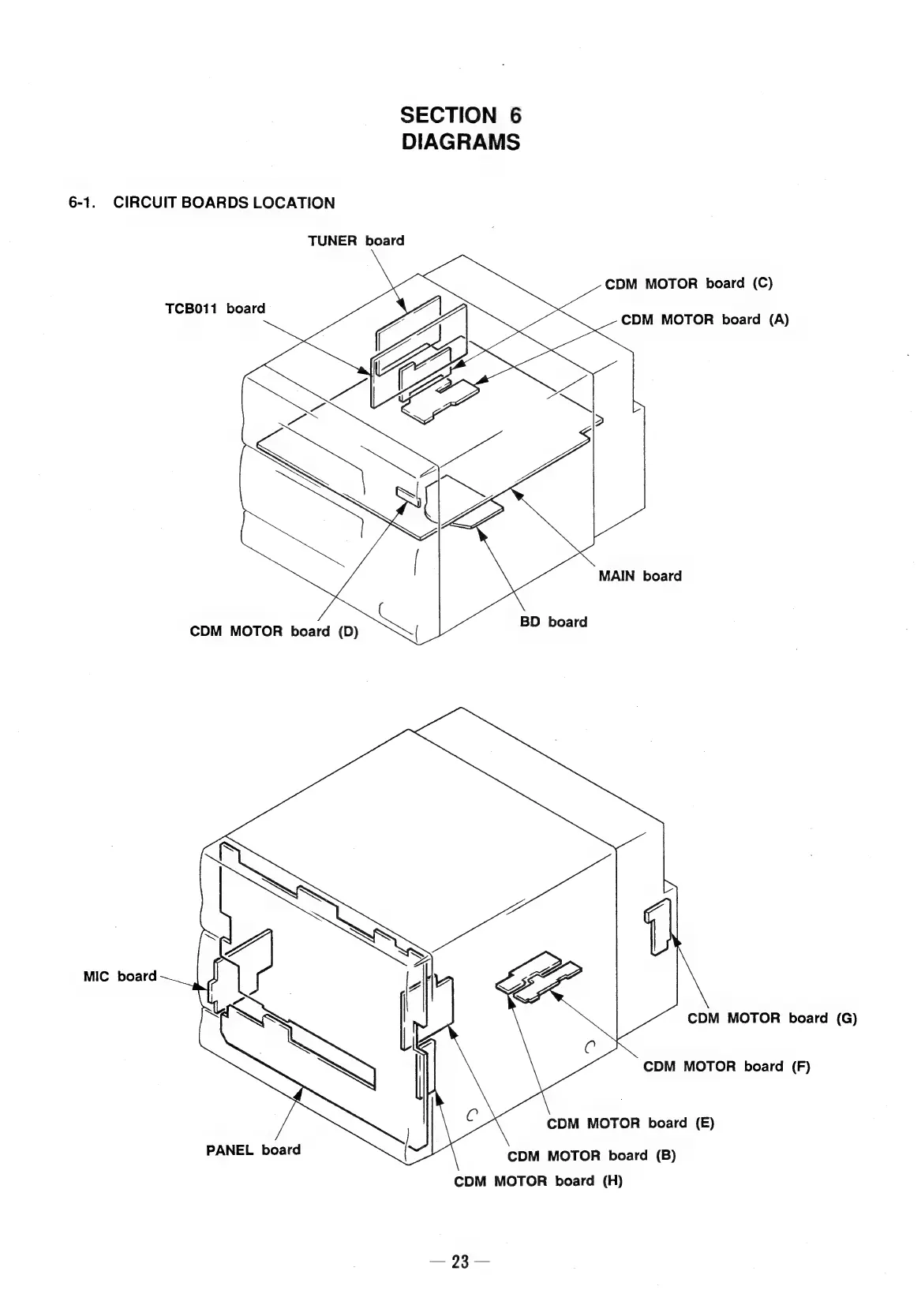

6-1. CIRCUIT BOARDS LOCATION
TUNER board
CDM MOTOR board (C)
TCBO11 board
CDM MOTOR board (A)
MAIN board
CDM MOTOR board (D) ep peud
MIC board
CDM MOTOR board (G)
CDM MOTOR board (F)
CDM MOTOR board (E)
PANEL
board
CDM
MOTOR
board
(B)
CDM MOTOR board (H)
