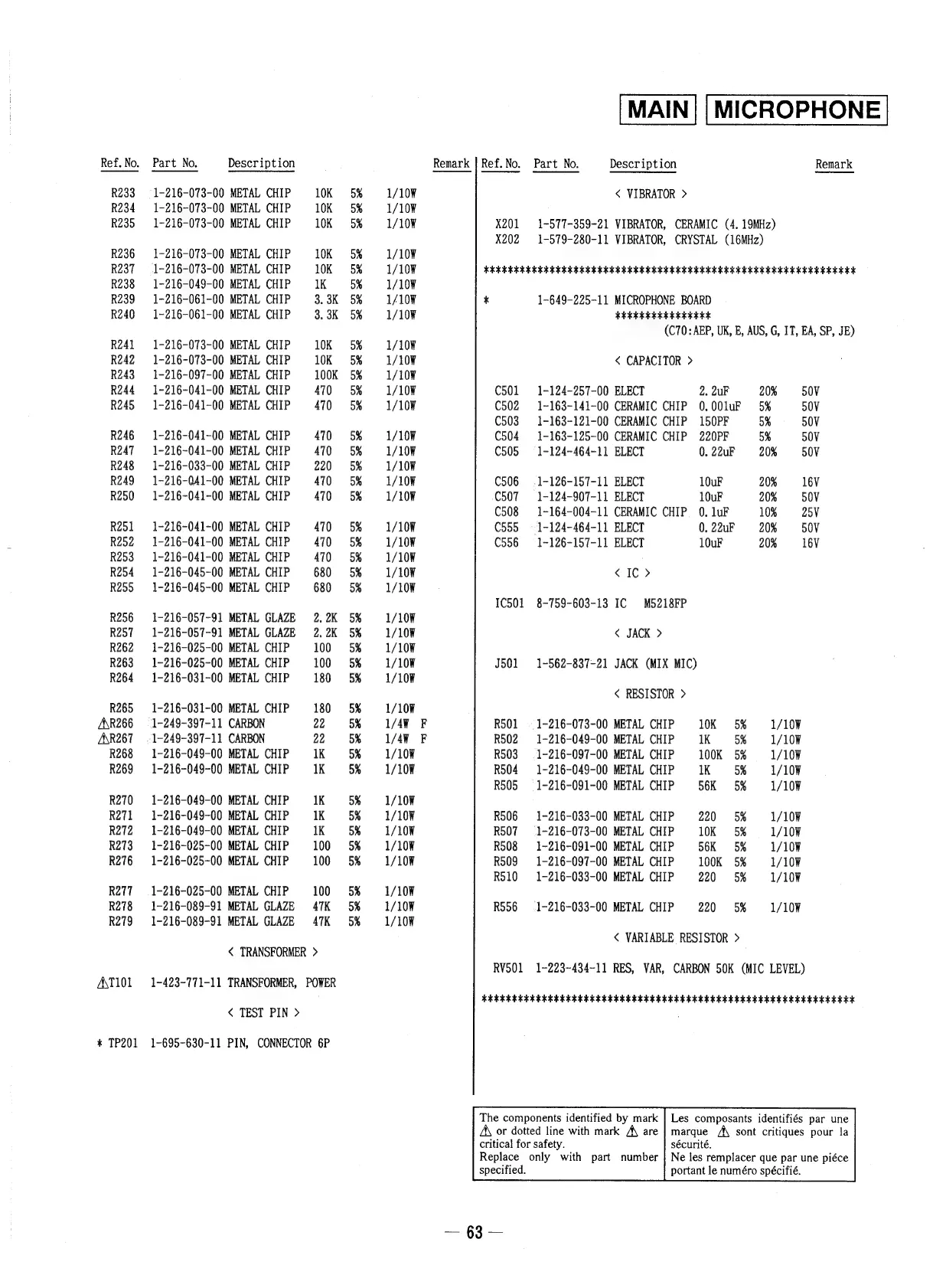

Sony HCD-C70 - Page 41

Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
R233 = 1-216-073-00 METAL CHIP 10K 5% 1/10¥ < VIBRATOR >
R234 1-216-073-00 METAL CHIP 10K = 5% 1/10¥
R235 1-216-073-00 METAL CHIP 10K 5% 1/10¥ X201 1-577-359-21 VIBRATOR, CERAMIC (4. 19MHz)
X202 1-579-280-11 VIBRATOR, CRYSTAL (16MHz)
R236 1-216-073-00 METAL CHIP 10K 5% 1/10W
R237 =: 1-216-073-00 METAL CHIP 10K 5% 1/104 tests csisitserssetses cts ecsectetsessetissressesreses ses sess ss,
R238 1-216-049-00 METAL CHIP 1K 5% 1/10¥
R239 1-216-061-00 METAL CHIP 3.3K 5% 41/10W t 1-649-225-11 MICROPHONE BOARD
R240 1-216-061-00 METAL CHIP 3.3K 5% 1/10¥ KXKKKKEKAAKE EERE
(C70: AEP, UK, E, AUS, G, IT, EA, SP, JE)
R241 1-216-073-00 METAL CHIP 10K 5% ~ 1/10¥
R242 1-216-073-00 METAL CHIP 10K 5% ~ 1/10¥ < CAPACITOR >
R243 1-216-097-00 METAL CHIP 100K 5% 1/10¥
R244 1-216-041-00 METAL CHIP 470 5% 1/10W C501 1-124-257-00 ELECT 2. 2uF 20% 50V
R245 1-216-041-00 METAL CHIP 470 5% 1/10W C502 1~-163-141-00 CERAMIC CHIP 0.00luF 5% 50V
C503 1-163-121-00 CERAMIC CHIP 150PF 5% 50V
R246 1-216-041-00 METAL CHIP 470 5% 1/10W C504 1-163-125-00 CERAMIC CHIP 220PF 5% 50V
R247 1-216-041-00 METAL CHIP 470 5% 1/10¥ C505 = 1-124-464-11 ELECT 0.22uF 20% 50V
R248 1-216-033-00 METAL CHIP 220 5% 1/10W
R249 1-216-0A41-00 METAL CHIP 470 5% 1/10W C506 = 1-126-157-11 ELECT 10uF 20% 16V
R250 1-216-041-00 METAL CHIP 470 5% 41/10¥ C507 =1-124-907-11 ELECT 10uF 20% 50V
C508 1-164-004-11 CERAMIC CHIP 0. luF 10% 25V
R251 1-216-041-00 METAL CHIP 470 5% 1/10W C555 =: 1-124-464-11 ELECT 0.22uF 20% 50V
R252 1-216-041-00 METAL CHIP 470 5% 1/10W C556 = 1-126-157-11 ELECT 10uF 20% 16V
R253 = 1-216-041-00 METAL CHIP 470 5% 41/10W
R254 1-216-045-00 METAL CHIP 680 5% 41/10¥ < IC >
R255 1-216-045-00 METAL CHIP 680 5% 1/10W
IC501 8-759-603-13 IC M5218FP
R256 1-216-057-91 METAL GLAZE 2.2K 5% 1/10W
R257 1-216-057-91 METAL GLAZE 2.2K 5% 1/108 < JACK >
R262 = 1-216-025-00 METAL CHIP 100 5% 1/10W
R263: 1-216-025-00 METAL CHIP 100 5% 1/10W J501 1-562-837-21 JACK (MIX MIC)
R264 1-216-031-00 METAL CHIP 180 5% 1/10¥
< RESISTOR >
R265 1-216-031-00 METAL CHIP 180 5% 1/10¥
A\R266 =: 1-249-397-11 CARBON 22 5e 8 1/4¥ F R501 = 1-216-073-00 METAL CHIP 10K 5% 1/10¥
A\R267 =: 1-249-397-11 CARBON 22 5% 1/44 F R502 1-216-049-00 METAL CHIP 1K 5% 1/10¥
R268 1-216-049-00 METAL CHIP IK 5% 1/10¥ R503 =: 1-216-097-00 METAL CHIP 100K 5% 1/10W
R269 1-216-049-00 METAL CHIP IK 5% 1/10¥ R504 1-216-049-00 METAL CHIP IK 5% 1/10W
R505 = 1-216-091-00 METAL CHIP 56K 5% 1/10W
R270 1-216-049-00 METAL CHIP 1K 5% 1/10¥
R271 1-216-049-00 METAL CHIP 1K 5% 1/10¥ R506 =1-216-033-00 METAL CHIP 220 5% 41/10W
R272 1-216-049-00 METAL CHIP IK 5% = 1/10W R507 =: 1-216-073-00 METAL CHIP 10K 5% 41/10¥
R273 1-216-025-00 METAL CHIP 100 5% 1/10¥ R508 1-216-091-00 METAL CHIP 56K 5% 1/10¥
R276 1-216-025-00 METAL CHIP 100 5% 1/10¥ R509 =1-216-097-00 METAL CHIP 100K 5% 1/10¥
R510 1-216-033-00 METAL CHIP 220 5% 1/10¥
R277 = 1-216-025-00 METAL CHIP) 100 5% 1/10¥
R278 1-216-089-91 METAL GLAZE 47K 5% ~ 1/10¥ R556 =: 1-216-033-00 METAL CHIP 220 5% 41/10¥
R279 1-216-089-91 METAL GLAZE 47K 5% 41/10¥
< VARIABLE RESISTOR >
< TRANSFORMER >
RV501 1-223-434-11 RES, VAR, CARBON 50K (MIC LEVEL)
A\T101 — 1-423-771-11 TRANSFORMER, POWER
HARKER KRRREER EER ERE REE ERE EER ERE REE EK ERE AREER AER EE RE KERR EK EEE E
< TEST PIN >
* TP201 1-695-630-11 PIN, CONNECTOR 6P
The components identified by mark
A\ or dotted line with mark A\ are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque /\ sont critiques pour la
sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
ae 63 a
