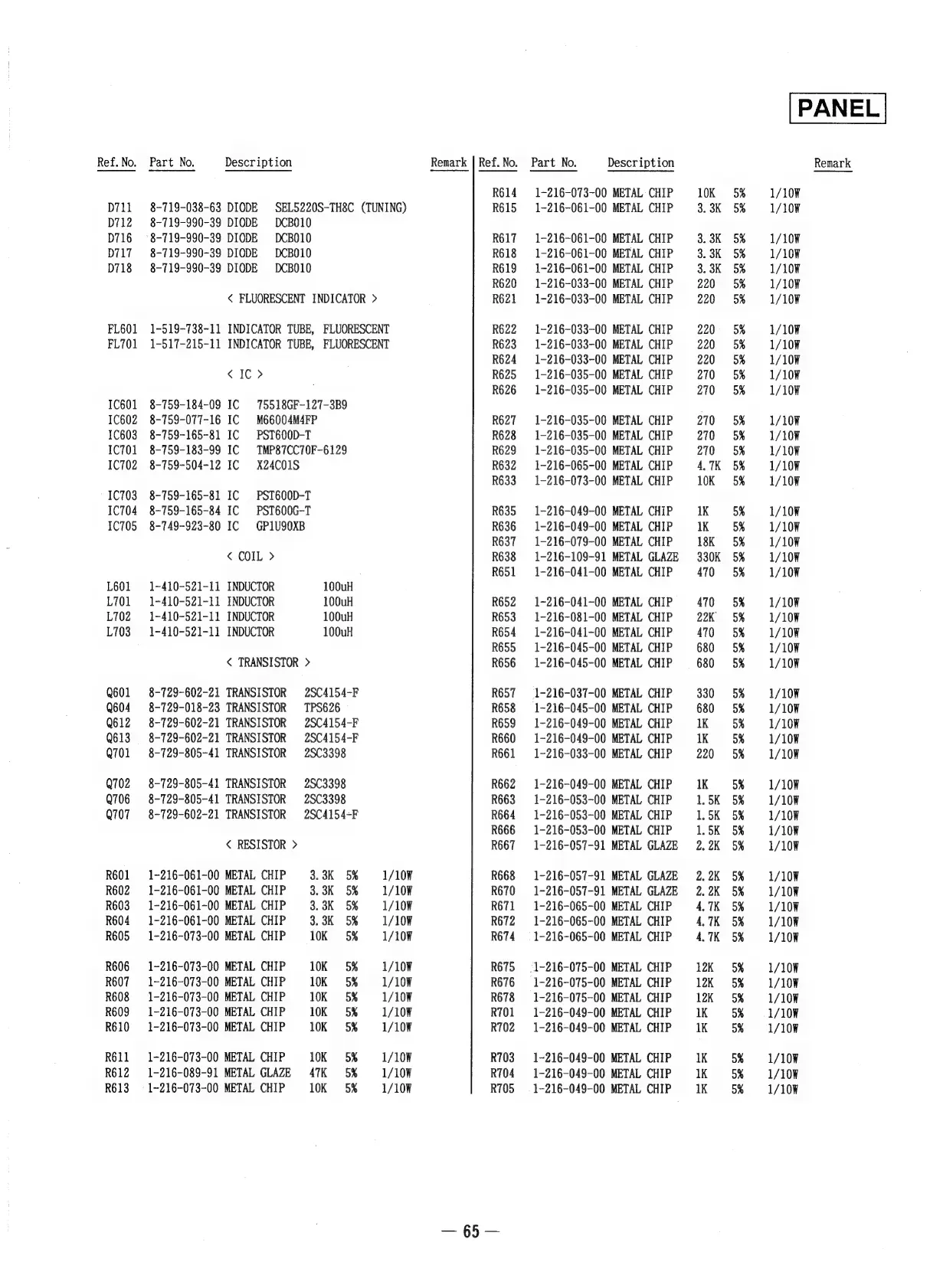

Sony HCD-C70 - Page 43

Ref.No. Part No. Description Remark | Ref.No. Part No. Description Remark
R614 = 1-216-073-00 METAL CHIP 10K 5% 1/10¥
D711 8-719-038-63 DIODE SEL5220S-TH8C (TUNING) R615 1-216-061-00 METAL CHIP 3.3K 5% 1/10¥
D712 8-719-990-39 DIODE DCBO10
D716 © 8-719-990-39 DIODE DCBO10 R617 =1-216-061-00 METAL CHIP 3.3K 5% 1/10¥
D717. += 8-719-990-39 DIODE DCBO010 R618 1-216-061-00 METAL CHIP 3.3K 5% 1/10¥
D718 8-719-990-39 DIODE DCBO10 R619 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R620 1-216-033-00 METAL CHIP 220 5% 1/10¥
< FLUORESCENT INDICATOR > R621 1-216-033-00 METAL CHIP 220 5% 41/10W
FL601 1-519-738-11 INDICATOR TUBE, FLUORESCENT R622 1-216-033-00 METAL CHIP 220 5% 1/10W
FL701 1-517-215-11 INDICATOR TUBE, FLUORESCENT R623 =1-216-033-00 METAL CHIP 220 5% 1/10¥
R624 1-216-033-00 METAL CHIP 220 5% 1/10¥
<..1C-? R625 1-216-035-00 METAL CHIP 270 5% 1/10¥
R626 =1-216-035-00 METAL CHIP 270 5% 1/10¥
IC601 8-759-184-09 IC 75518GF-127-3B9
IC602 8-759-077-16 IC M66004M4FP R627 1-216-035-00 METAL CHIP 270 5% 1/10W
IC603 8-759-165-81 IC PST600D-T R628 1-216-035-00 METAL CHIP 270 5% 1/10¥
IC701 8-759-183-99 IC TMP87CC70F-6129 R629 = 1-216-035-00 METAL CHIP 270 5% 1/10¥
IC702 8-759-504-12 IC X24C01S R632 1-216-065-00 METAL CHIP 4.7K 5% 1/10¥
R633 1-216-073-00 METAL CHIP 10K 5% ~~ 1/10¥
IC703 8-759-165-81 IC PST600D-T
1704 8-759-165-84 IC PST600G-T R635 1-216-049-00 METAL CHIP IK 5% ~ 41/10¥
IC705 8-749-923-80 IC GP1U90XB R636 =1-216-049-00 METAL CHIP IK 5% 1/10¥
R637 1-216-079-00 METAL CHIP 18K 5% 1/10¥
< COIL > R638 = 1-216-109-91 METAL GLAZE 330K 5% 1/10¥
R651 1-216-041-00 METAL CHIP 470 5% 1/10¥
L601 1-410-521-11 INDUCTOR 100uH
L701 1-410-521-11 INDUCTOR 100uH R652 =1-216-041-00 METAL CHIP 470 5% = 1/10¥
L702 1-410-521-11 INDUCTOR 100uH R653: 1-216-081-00 METAL CHIP 22K 5% 1/10¥
L703 1-410-521-11 INDUCTOR 100uH R654 =1-216-041-00 METAL CHIP 470 5% 1/10¥
R655: 1-216-045-00 METAL CHIP 680 5% 1/10¥
< TRANSISTOR > R656 1-216-045-00 METAL CHIP 680 5% 1/10¥
Q601 8-729-602-21 TRANSISTOR 2SC4154-F R657. =: 1-216-037-00 METAL CHIP 330 5% 1/10¥
Q604 8-729-018-23 TRANSISTOR TPS626 R658 1-216-045-00 METAL CHIP 680 5% 1/10¥
Q612 8-729-602-21 TRANSISTOR 2SC4154-F R659 1-216-049-00 METAL CHIP IK 5% ~~ 1/10W
Q613 8-729-602-21 TRANSISTOR 2SC4154-F R660 1-216-049-00 METAL CHIP 1K 5% ~ 1/10W
Q701 8-729-805-41 TRANSISTOR 2SC3398 R661 1-216-033-00 METAL CHIP 220 5% 1/10¥
Q702 8-729-805-41 TRANSISTOR 2SC3398 R662 1-216-049-00 METAL CHIP 1K 5% 1/10¥
Q706 8-729-805-41 TRANSISTOR 25C3398 R663 = 1-216-053-00 METAL CHIP 1.5K 5% 1/10¥
Q707 8-729-602-21 TRANSISTOR 2SC4154-F R664 1-216-053-00 METAL CHIP 1.5K 5% 1/10¥
R666 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
< RESISTOR > R667 1-216-057-91 METAL GLAZE 2.2K 5% 1/10¥
R601 1-216-061-00 METAL CHIP 3.3K 5% 1/10¥ R668 1-216-057-91 METAL GLAZE 2.2K 5% 1/10¥
R602 1-216-061-00 METAL CHIP 3.3K 5% ~ 1/10W R670 = =1-216-057-91 METAL GLAZE 2.2K 5% 1/10¥
R603 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R671 =1-216-065-00 METAL CHIP 4.7K 5% 1/10¥
R604 1-216-061-00 METAL CHIP 3.3K 5% 1/10¥ R672 1-216-065-00 METAL CHIP 4.7K 5% 1/10¥
R605 1-216-073-00 METAL CHIP 10K 5% 1/10¥ R674 = 1-216-065-00 METAL CHIP 4.7K 5% 1/108
R606 1-216-073-00 METAL CHIP 10K 5% ~ 1/10¥ R675 =: 1-216-075-00 METAL CHIP 12K 5% = 1/10W
R607 1-216-073-00 METAL CHIP 10K 5% = 1/10W R676 = 1-216-075-00 METAL CHIP 12K 5% 1/10¥
R608 1-216-073-00 METAL CHIP 10K 5% ~~ 1/10¥ R678 = =1-216-075-00 METAL CHIP 12K 5% ~ 1/10¥
R609 1-216-073-00 METAL CHIP 10K 5% 1/10¥ R701 1-216-049-00 METAL CHIP 1K 5% 1/10W
R610 1-216-073-00 METAL CHIP 10K 5% ~ 1/10¥ R702 1-216-049-00 METAL CHIP 1K 5% 1/10¥
R611 = 1-216-073-00 METAL CHIP 10K 5% = 1/10¥ R703. 1-216-049-00 METAL CHIP 1K 5% ~~ 1/10¥
R612 =1-216-089-91 METAL GLAZE 47K 5% ~ 1/10¥ R704 1-216-049-00 METAL CHIP 1K 5% 1/108
R613 = 1-216-073-00 METAL CHIP 10K 5% 1/10¥ R705 = 1-216-049-00 METAL CHIP 1K 5% = 1/10¥
