NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
•Abbreviation
CND : Canadian model
E51 : Chilean and peruvian model
The components identified by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
SECTION 7
EXPLODED VIEWS
44
HCD-CP333
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

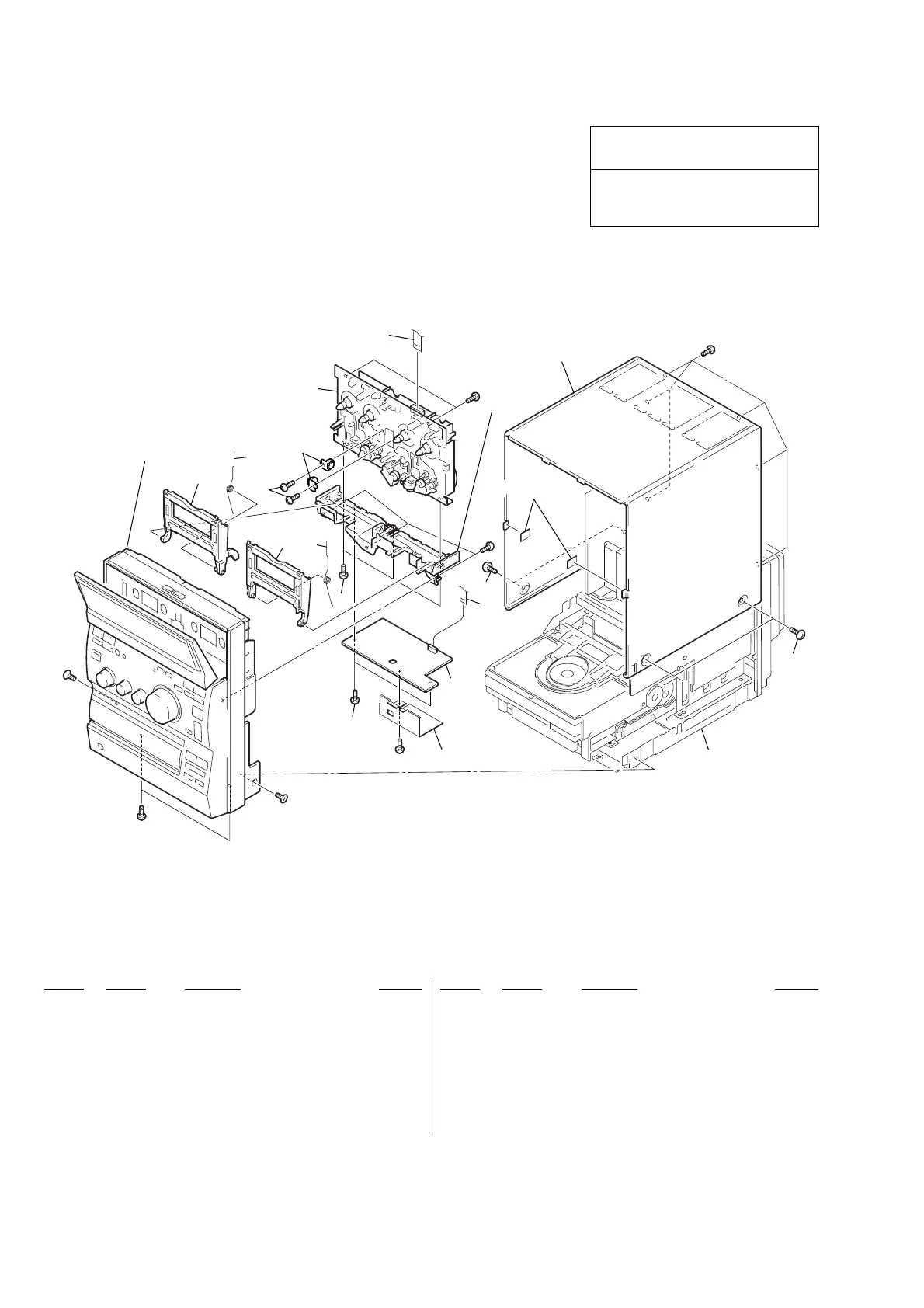

7-1. Cover Section
12
1
2
3
4
13
5
8
7
9
10
11
9
6
not supplied
Chassis section
not
supplied
not supplied
Front panel section
#1
#2
#7
#2
#2
#7
#1
13
1 X-4952-972-1 HOLDER (A) SUB ASSY, CASSETTE
2 X-4952-973-1 HOLDER (B) SUB ASSY, CASSETTE
3 4-229-008-01 SPRING (CASSETTE A)
4 4-229-009-01 SPRING (CASSETTE B)
5 4-229-013-11 DAMPER
6 1-796-078-11 DECK, MECH
7 1-757-707-11 CABLE, FLEXIBLE FLAT (11 CORE)
8 4-229-015-01 SCREW, +BVTTWH TAPPING
9 4-221-580-01 SCREW, CASE
10 1-757-705-11 CABLE, FLEXIBLE FLAT (11 CORE)
11 A-2007-972-A TC BOARD, COMPLETE
12 4-222-370-21 COVER (UPPER)
13 4-229-428-01 SCREW, +BVTP TAPPING
#1 7-685-245-19 SCREW +KTP 3X6 TYPE2 NON-SLIT
#2 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
#7 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
To Next Page
