Sony HCD-D11 - Page 10

– 10 –

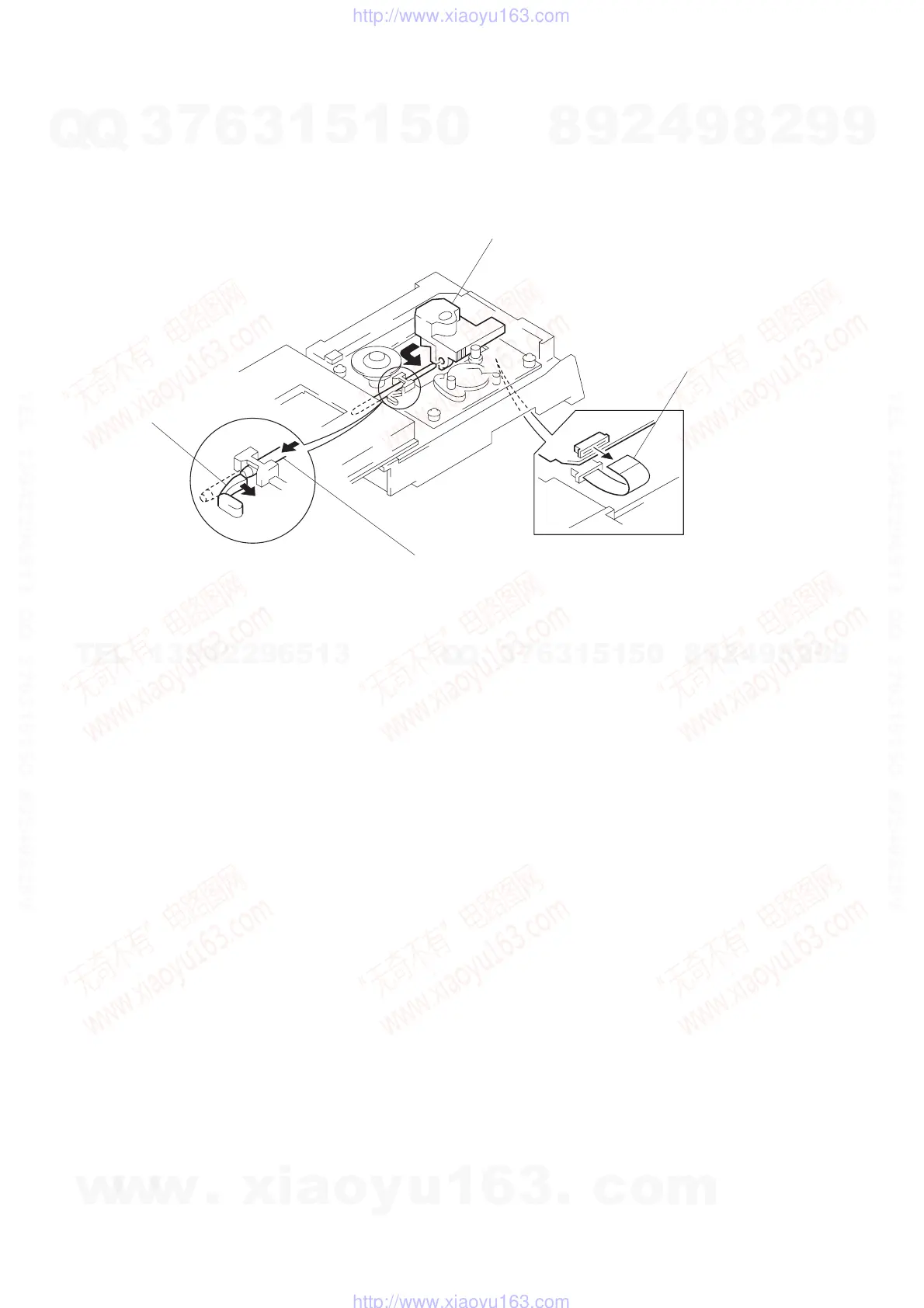

OPTICAL PICK-UP
4 Remove the optical pick-up
in the direction of the arrow
C .
3 wire (flat type) (16 core)
(CNU101)
C
2 Remove the sled shaft in the
direction of the arrow
B .
B
A
1
Move the claw in the
direction of the arrow
A .
