– 4 –

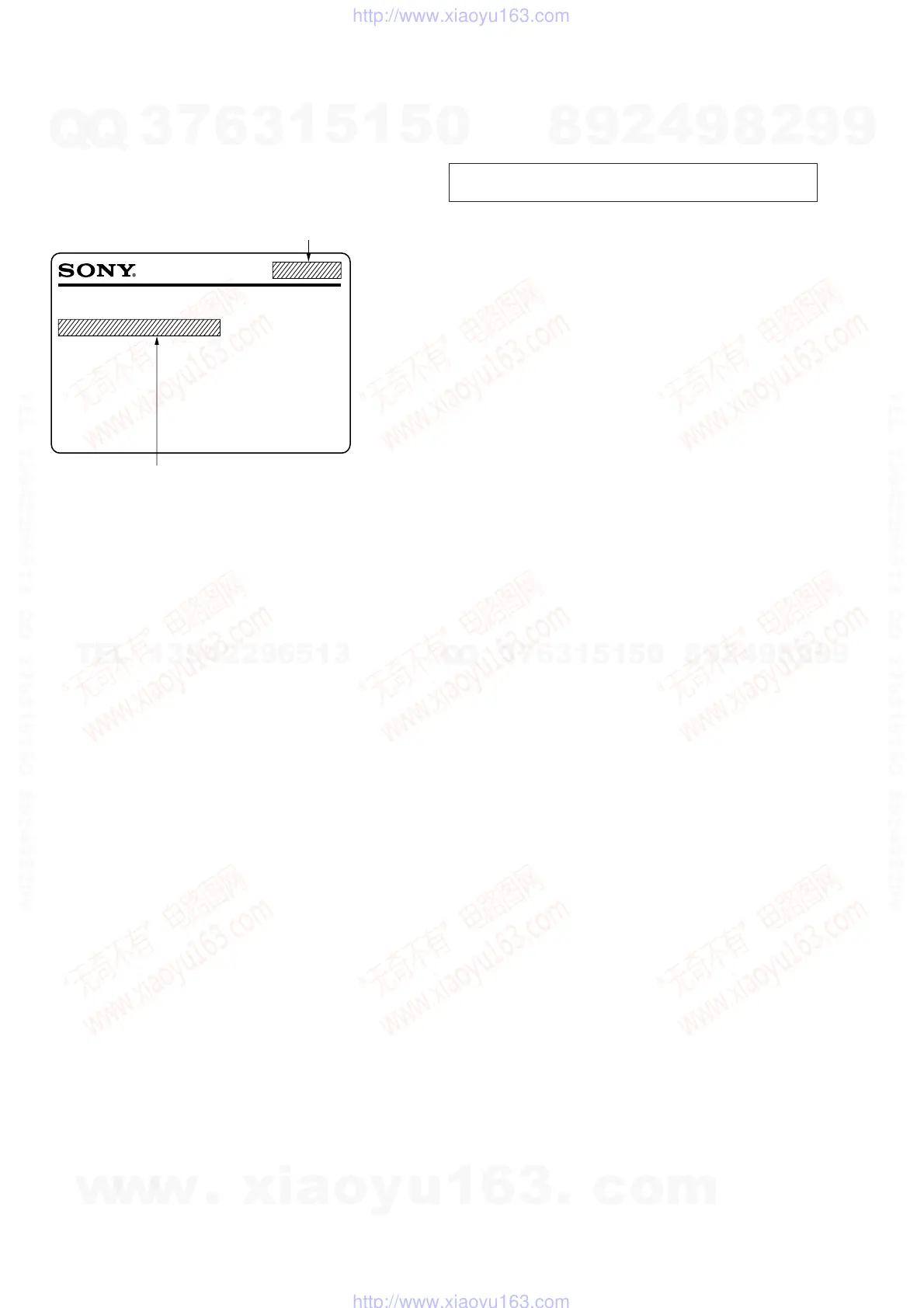

MODEL IDENTIFICATION
– Specification Label Printed on Back Panel –
MODEL NO.
TUNER CD PLAYER
SERIAL NO.
MADE IN JAPAN
HCD-D11/T11
NOTES ON HANDLING THE OPTICAL PICK-UP
BLOCK OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission, ob-
serve from more than 30 cm away from the objective lens.
Notes on chip component replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Flexible Circuit Board Repairing
• Keep the temperature of soldering iron around 270 ˚C during re-
pairing.
• Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
• Be careful not to apply force on the conductor when soldering or
unsoldering.
SECTION 1
SERVICE NOTES
US, Canadian model : AC : 120 V 60 Hz 25 W
Except
US, Canadian model : AC : 120 V/220 – 240 V
⁄
50/60 Hz 20 W (HCD-D11)
: AC : 120 V/220 – 240 V
⁄
50/60 Hz 25 W (HCD-T11)
