– 40 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearrance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
• Abbreviation
CND : Canadian HK: Hong Kong JE : Tourist
MY : Malaysia SP : Singapore

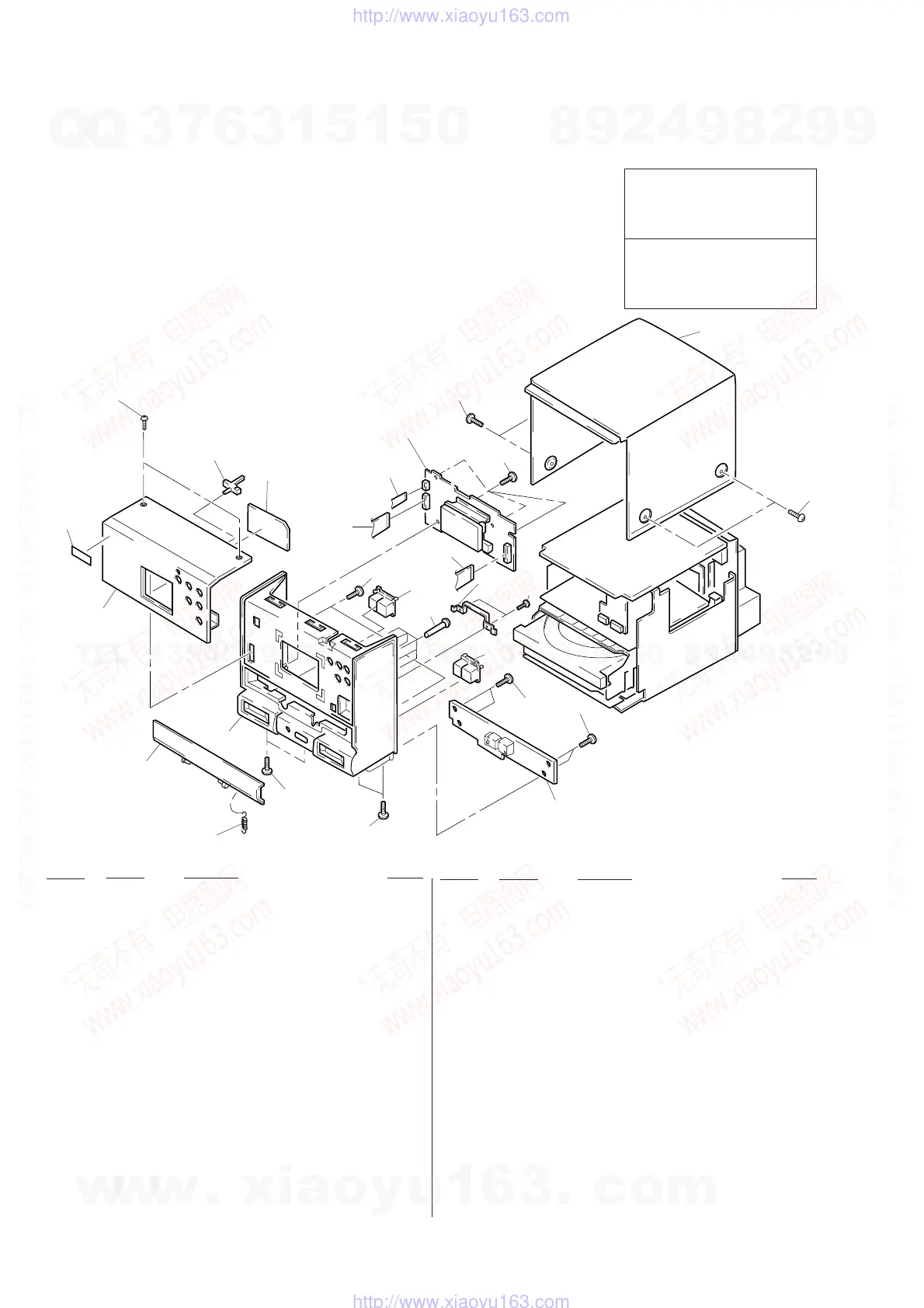

(1) FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 X-4946-207-1 PANEL SUB ASSY, FRONT
(US, CND, E, HK, SP, MY, JE) (SILVER)
1 X-4947-698-1 PANEL SUB ASSY, FRONT (HK) (GOLD)
2 3-704-366-61 SCREW (CASE)
3 4-975-343-02 PANEL (AL), FRONT
(US, CND, E, HK, SP, MY, JE) (SILVER)
3 4-975-343-11 PANEL (AL), FRONT (HK) (GOLD)
4 4-975-365-01 SCREW (ALUMINUM)
5 4-975-346-01 INDICATOR (PLAY)
6 4-975-345-01 PLATE (WINDOW), INDICATION
7 1-775-731-11 WIRE (FLAT TYPE) (7 CORE)
8 4-951-620-01 SCREW (2.6X8), +BVTP
9 1-775-732-11 WIRE (FLAT TYPE) (13 CORE)
10 4-975-351-01 BUTTON (POWER)
(US, CND, E, HK, SP, MY, JE) (SILVER)
10 4-975-351-11 BUTTON (POWER) (HK) (GOLD)
11 4-975-355-01 BUTTON (PLAY)
(US, CND, E, HK, SP, MY, JE) (SILVER)
11 4-975-355-11 BUTTON (PLAY) (HK) (GOLD)
SECTION 6
EXPLODED VIEWS
The components identified by mark
! or dotted line with mark ! are
critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
12 1-775-733-11 WIRE (FLAT TYPE) (15 CORE)
13 4-942-636-21 EMBLEM (NO. 3.5), SONY
(US, CND, E, HK, SP, MY, JE) (SILVER)
13 4-942-636-31 EMBLEM (NO. 3.5), SONY (HK) (GOLD)
* 15 A-4378-477-A DISPLAY BOARD, COMPLETE (E)
* 15 A-4378-886-A DISPLAY BOARD, COMPLETE (D11)
* 15 A-4378-911-A DISPLAY BOARD, COMPLETE (T11: HK, SP, MY)
* 15 A-4390-139-A DISPLAY BOARD, COMPLETE (US, CND)
* 15 A-4392-535-A DISPLAY BOARD, COMPLETE (JE)
16 4-975-358-11 CASE (US, CND, E, HK, SP, MY, JE) (SILVER)
16 4-975-358-51 CASE (HK) (GOLD)
17 4-975-352-01 BUTTON (VOLUME)
(US, CND, E, HK, SP, MY, JE) (SILVER)
17 4-975-352-11 BUTTON (VOLUME) (HK) (GOLD)
* 18 1-657-286-11 PANEL BOARD (US, CND)
* 18 1-659-288-11 PANEL BOARD (EXCEPT US, CND)
19 X-4946-431-1 DOOR ASSY
(US, CND, E, HK, SP, MY, JE) (SILVER)
19 X-4947-699-1 DOOR ASSY (HK) (GOLD)
4
13
3
5
6
9
7
15
2
8
12
10
8
11
17
8
8
18
19
1
2
16
#2
#2
not supplied
8
not supplied
