– 41 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 1-775-172-11 WIRE (FLAT TYPE) (19 CORE)
* 52 4-975-356-01 PANEL, LOADING
* 53 1-657-289-11 CONNECT BOARD (US, CND)
* 53 1-659-290-11 CONNECT BOARD (EXCEPT US, CND)
* 54 A-4390-992-A MAIN BOARD, COMPLETE (T11: E, HK, SP, MY)
* 54 A-4390-995-A MAIN BOARD, COMPLETE (US, CND)
* 54 A-4390-996-A MAIN BOARD, COMPLETE (D11)
* 54 A-4392-536-A MAIN BOARD, COMPLETE (JE)
55 4-975-366-01 SHEET (TRANSFORMER) (US, CND)
55 4-979-539-01 SHEET (TRANSFORMER) (EXCEPT US, CND)
56 3-531-576-11 RIVET
* 57 A-4390-993-A POWER BOARD, COMPLETE
(T11: E, HK, SP, MY, JE)
* 57 A-4390-994-A POWER BOARD, COMPLETE (US, CND)
* 57 A-4390-997-A POWER BOARD, COMPLETE (D11)
! 58 1-569-008-11 ADAPTOR, CONVERSION 2P (SP, MY)
! 59 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK)
* 60 4-975-361-11 PANEL (AU BASS), BACK
* 61 4-975-359-22 PANEL (MAIN), BACK (T11: E, HK, SP, MY, JE)
* 61 4-975-359-32 PANEL (MAIN), BACK (D11)
* 61 4-975-359-41 PANEL (MAIN), BACK (US, CND)
* 62 4-975-362-01 COVER (BACK PANEL)
* 63 3-703-244-00 BUSHING (2104), CORD (HK, SP, MY)
* 63 3-703-571-11 BUSHING (S) (4516), CORD (US, CND, E, JE)
* 64 1-657-288-11 AU BUS BOARD (US, CND)
* 64 1-659-289-11 AU BUS BOARD (EXCEPT US, CND)
* 65 1-657-287-11 A.C. BOARD (US, CND)
* 65 1-659-292-11 A.C. BOARD (EXCEPT US, CND)
* 66 4-975-360-11 PANEL (AC OUTLET), BACK (HK, SP, MY)
* 66 4-975-360-21 PANEL (AC OUTLET), BACK (E, JE)
* 66 4-975-360-61 PANEL (AC OUTLET), BACK (US, CND)
67 4-965-822-01 FOOT
* 68 4-977-364-01 COVER (PIN JACK 2P)
69 4-975-903-01 PLATE (PIN JACK 6P), INDICATION
70 1-775-378-11 CORD (WITH CONNECTOR)
(SYSTEM CONTROL)(T11)
! CNJ1 1-526-794-11 OUTLET, AC (HK, SP, MY)
! CNJ1 1-526-882-00 OUTLET, AC (US, CND, E, JE)
! CNP1 1-558-943-71 CORD, POWER (E, JE)
! CNP1 1-558-945-21 CORD, POWER (POLAR. SPT-1) (US, CND)
! CNP1 1-776-060-11 CORD, POWER (HK, SP, MY)
! T1 1-429-096-11 TRANSFORMER, POWER (EXCEPT US, CND)
! T1 1-429-549-11 TRANSFORMER, POWER (US, CND)

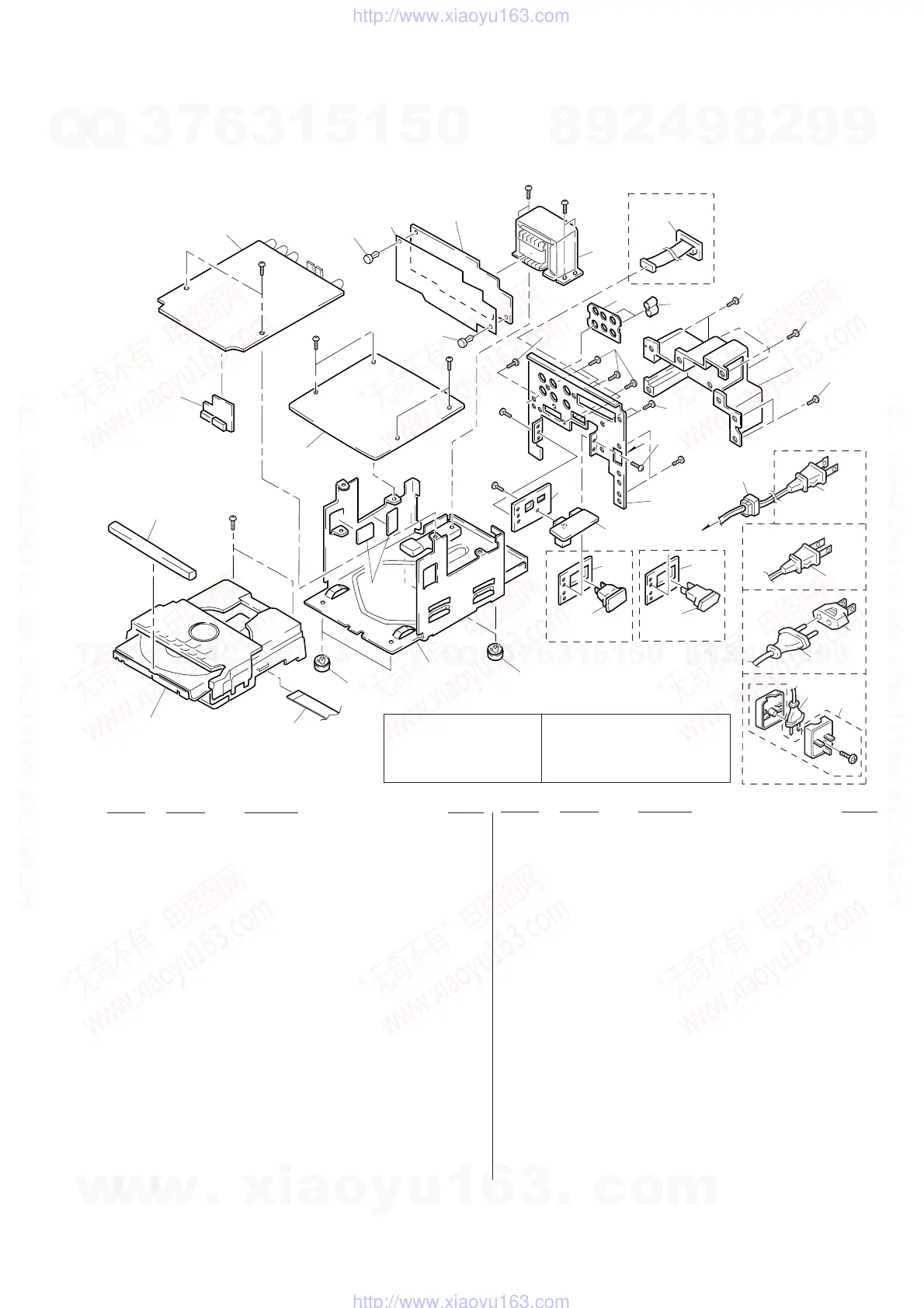

(2) CHASSIS SECTION
#3
T1
54
#4
53
52
CD MECHANISM SECTION
51
67
#1
not supplied
67
not
supplied
HK, SP, MY
CNJ1
66
66
CNJ1
64
60
#4
63
61
#4
#4
#3
US, CND
CNP1
E, JE
CNP1
SP, MY
58
CNP1
CNP1
59
HK
#4
#4
#4
#4
70
#1
#1
56
56
55
65
#3
#3
#4
57
68
69
US, CND, E, JE
T11 only
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
