– 42 –

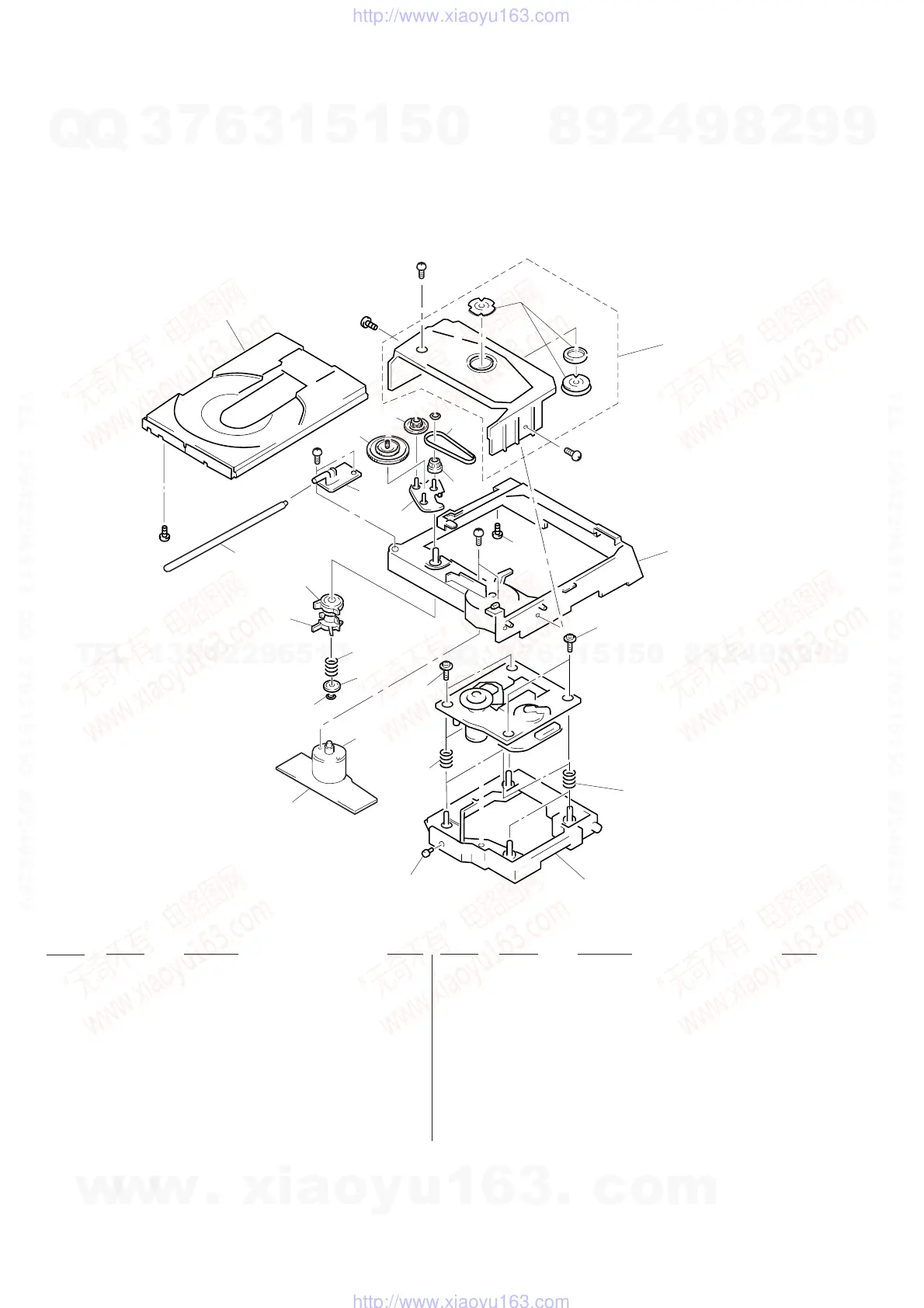

(3) CD MECHANISM SECTION-1
(CDM13C-5BD19)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 101 1-634-461-11 LOADING BOARD
102 4-927-654-01 WASHER (LIMITER)
103 3-659-338-00 SPRING, COMPRESSION
104 4-929-764-01 SHAFT (TABLE GUIDE)
105 4-927-620-01 GEAR (P)
106 4-944-006-11 BEARING
107 4-927-628-01 GEAR (C)
108 4-927-649-01 BELT
109 4-929-724-01 PULLEY (B)
110 X-4947-265-1 ARM ASSY, SWING
111 4-944-012-01 TABLE, DISC
112 A-4604-752-A HOLDER (MG) ASSY
* 113 4-917-583-21 BRACKET, YOKE
* 114 X-4946-208-2 CHASSIS (MD) ASSY
115 4-933-134-01 SCREW (+PTPWH M2.6X6)
116 4-958-593-01 SPRING (BU), COMPRESSION
117 4-929-747-01 HOLDER (BU)
118 4-929-727-01 CAM (A)
119 4-929-729-01 CAM (B)
M903 A-4608-362-A MOTOR (L) ASSY (LOADING)
111
#1
#1
112
not supplied
#1
#6
108
109
107
105
#1
#7
104
119
118
103
102
#6
M903
101
117
116
not supplied
116
115
115
114
113
#8
106
110
