Sony HCD-D290 - Page 23

– 23 –

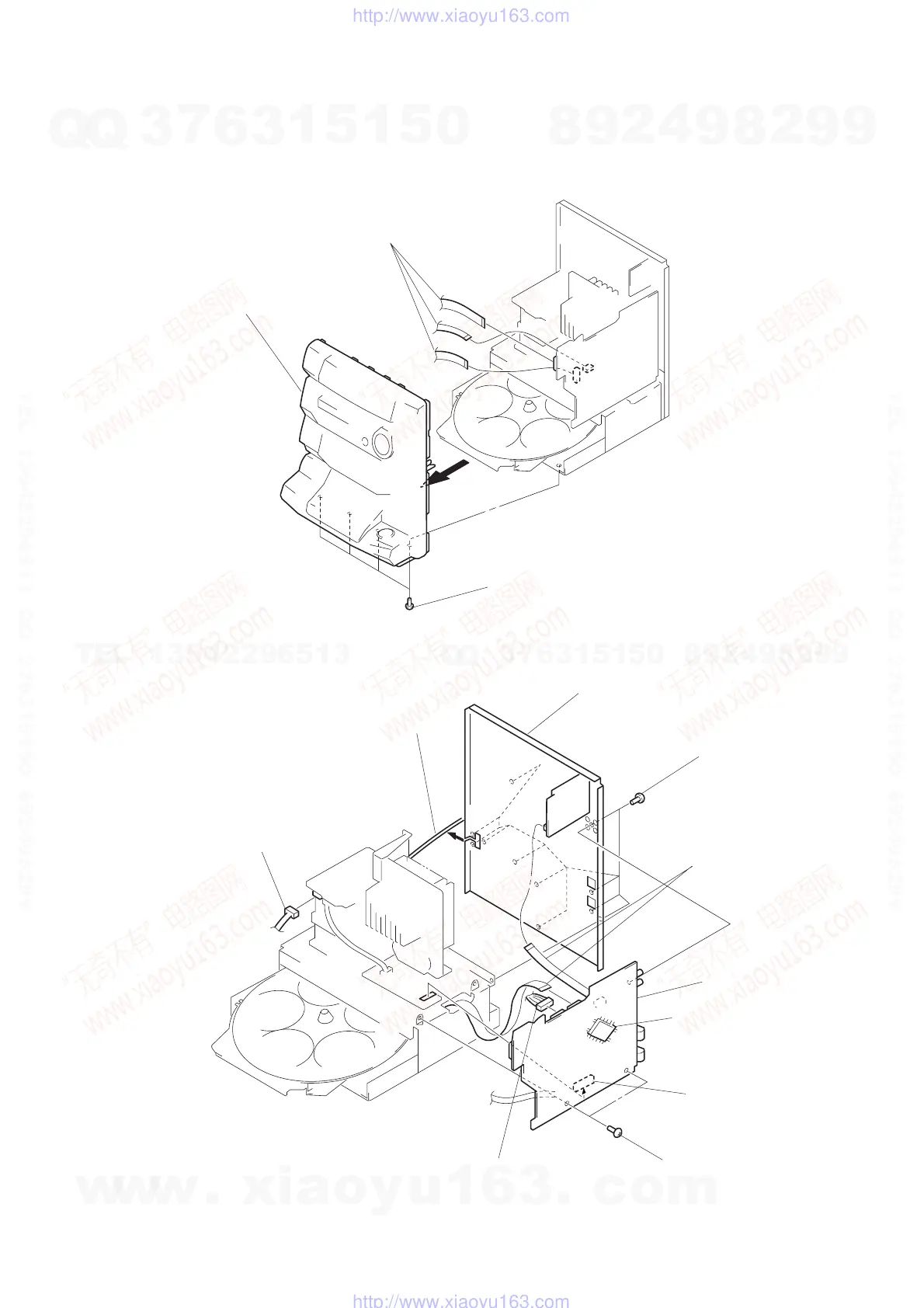

FRONT PANEL SECTION
MAIN BOARD
6 back panel
5 power cord
3 connector
(CN901)
2 connector
(CN203)
7 two screws
(BVTP 3
× 8)
8 connector
(CN101)
IC201
9 MAIN board
1 two flat wires
(CN1, 202)
4 ereven screws
(BVTP 3
× 8)
1 three frat wires
(CN102, 205, 206)
3 front panel section
2 four screws
(BVTP 3
× 8)
