Sony HCD-DX2 - CD Mechanism Deck Exploded Views

40

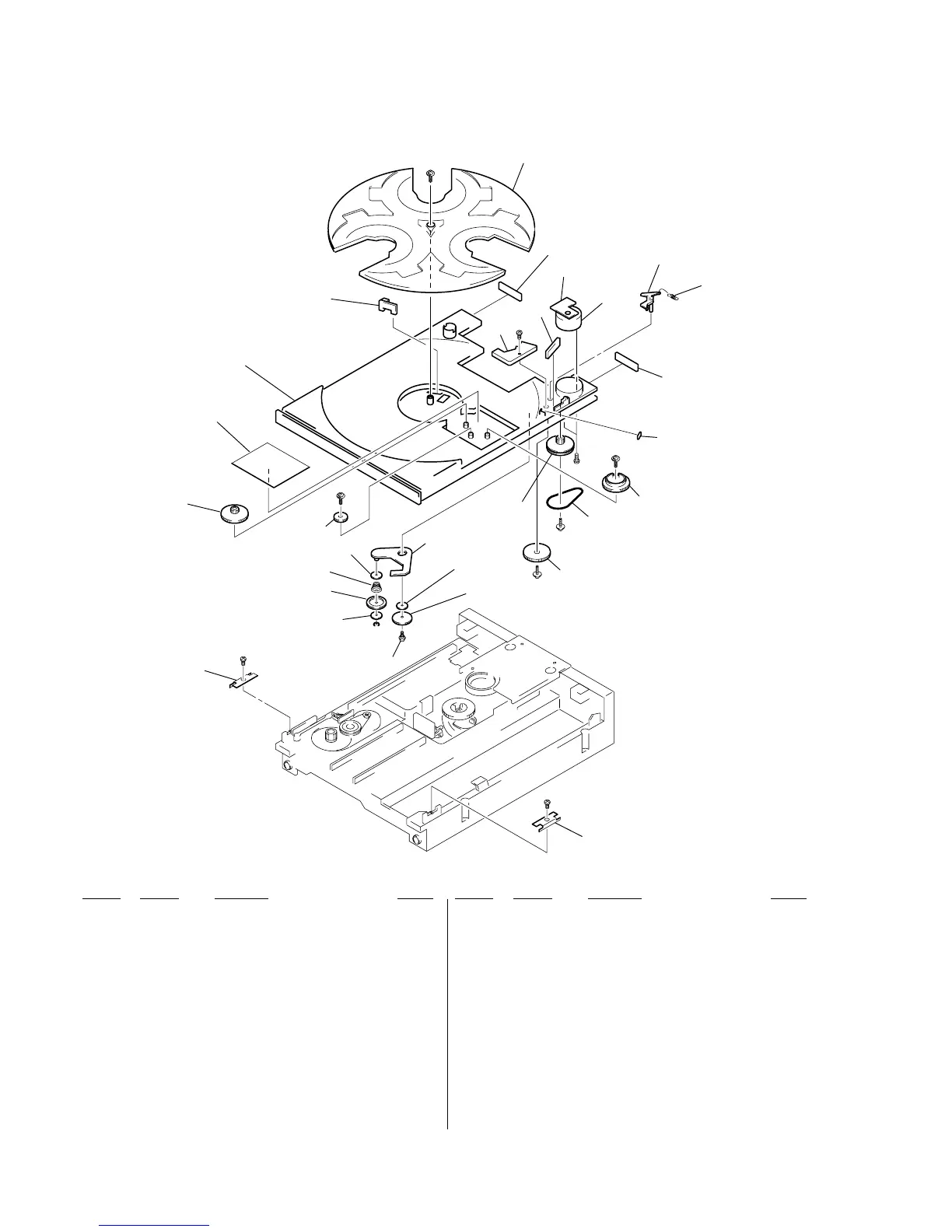

(4) CD MECHANISM DECK SECTION-1
(EXL-M7)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-674-792-11 MOTOR BOARD
103 4-229-503-01 BASE, CHANGER
104 4-221-895-01 SHEET, BLIND
105 4-221-896-01 LEVER, SENSOR SW
106 4-992-182-01 SPRING, SENSOR (SW) LEVER
107 4-992-170-01 BELT, LOADING
108 4-992-171-01 PULLEY, GEAR
109 4-221-894-01 GEAR, TR
110 4-229-504-01 GEAR, TR LOCK
111 4-221-893-01 GEAR (C), RELAY
112 4-992-187-01 CUSHION
113 4-992-186-01 CUSHION, SW LEVER
114 4-992-173-01 GEAR (B), RELAY
115 4-992-183-01 SCREW, RELAY GEAR (B)
116 4-992-174-01 GEAR, CHANGE
117 4-992-184-01 WASHER, CHANGE GEAR
118 4-229-505-01 SPRING, CHANGE GEAR
119 4-992-185-01 WASHER, CHANGE PLATE
120 4-992-172-01 GEAR (A), RELAY
121 4-221-902-01 PLATE, T/T
123 1-674-789-11 SW B BOARD
124 1-674-788-11 SW A BOARD
125 4-229-499-01 GUIDE, RAIL
126 4-229-529-01 TABLE, TURN
127 4-229-500-01 PROTECTOR, TURN TABLE
M103 X-4948-765-1 MOTOR ASSY (TURN TABLE)
103
123
104
109
125
125
117
115
119
114
121
111
122
118
116
120
107
110
113
112
108
106
105
101
124
127
112
126
#9
#14
#10
#11
#10
#9
M103
#9
#11
#11
#12
