Sony HCD-DX2 - Page 41

41

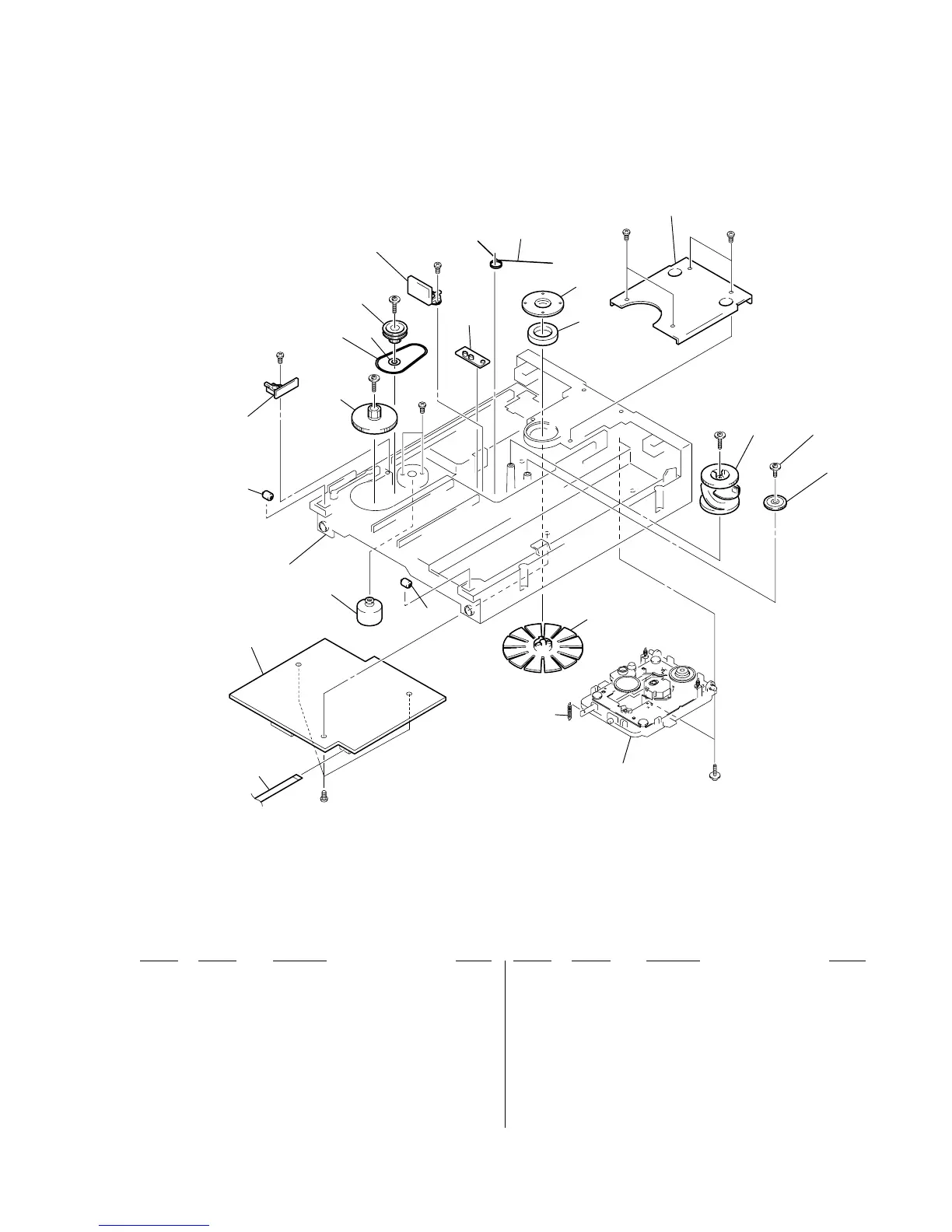

(5) CD MECHANISM DECK SECTION-2
(EXL-M7)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 1-769-856-11 WIRE (FLAT TYPE) (5 CORE)
152 4-221-897-01 CAM, UD
153 4-992-191-01 UD-GEAR
154 4-992-195-01 MAGNET
156 4-992-197-01 BELT, LOADING GEAR
157 4-992-198-01 PULLEY (B), GEAR
158 4-992-199-01 GEAR, SLIDE
159 4-992-200-01 ROLLER
160 4-992-192-01 SPRING, BRAKE CAM
161 4-992-193-01 LEVER, SW
162 4-992-193-01 LEVER, SW
163 1-674-791-11 SW D BOARD
164 1-674-790-11 SW C BOARD
165 4-229-512-01 SCREW, FLANGE
166 4-229-509-01 HOLDER, MAGNET
168 A-4473-611-A DECODE BOARD, COMPLETE
169 4-221-900-01 COVER, MAGNET
170 4-221-903-01 SPRING, MECHANICAL BASE
171 4-229-510-01 CHASSIS, MAIN
M104 X-4948-766-1 MOTOR ASSY (A) (TRAY)
159
164
163
157
167
156
158
162
161
154
169
166
152
153
165
151
170
168
171
159
#15
#15
#15
#4
#4
#11
#11
not supplied
#11
#3
Base unit block
#8
M104
