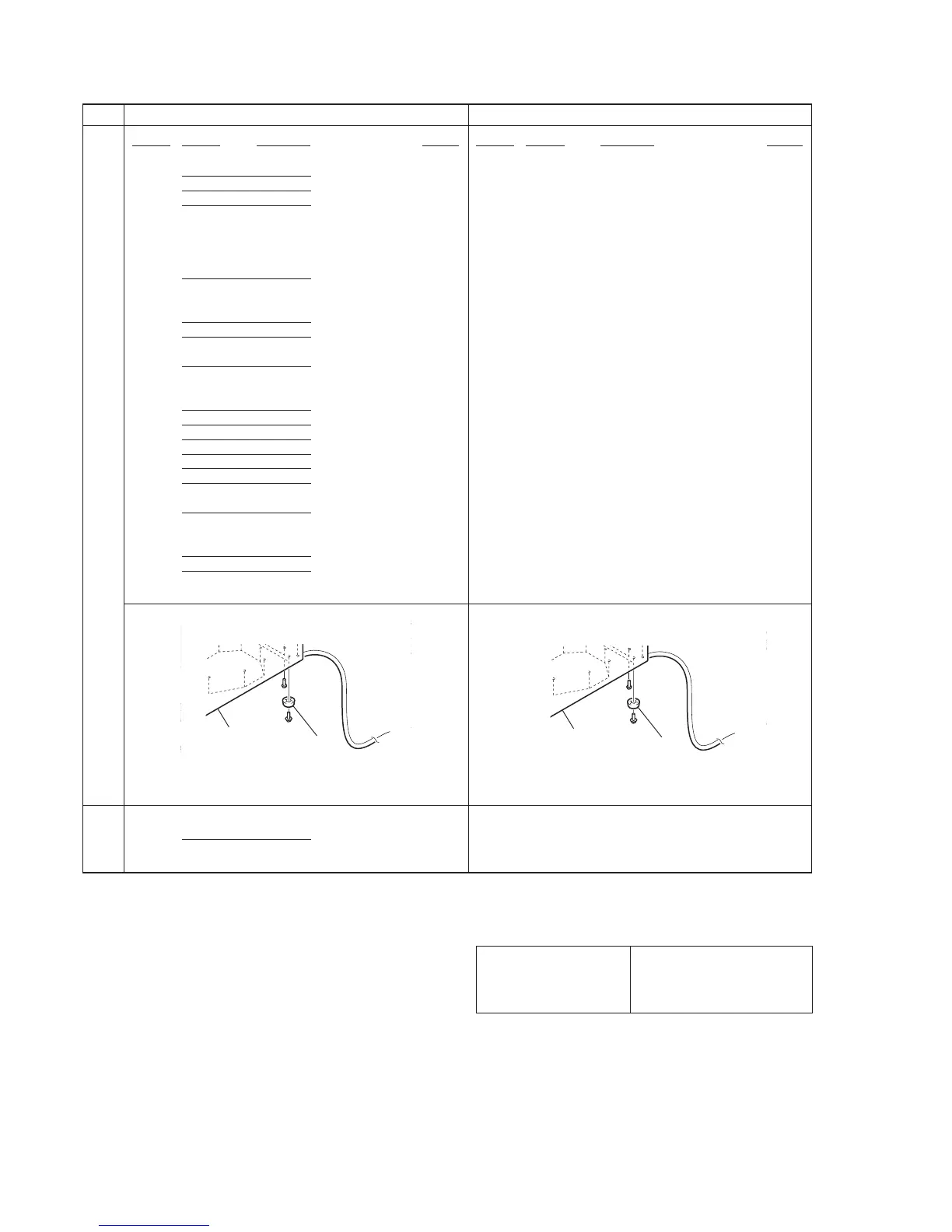

Page Before Change After Change
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
40
251 4-229-486-01 CABINET, BOTTOM
254 A-4473-603-A MAIN BOARD, COMPLETE
255 A-4473-607-A AMP BOARD, COMPLETE
0262 1-783-531-51 CORD, POWER
0T001 1-435-611-11 TRANSFORMER, POWER
39
251 4-229-486-01 CABINET, BOTTOM (US, CND, MX)
251 4-230-066-01 CABINET, BOTTOM (AEP, UK)
251 4-230-069-01 CABINET, BOTTOM (CIS)
251 4-231-357-01 CABINET, BOTTOM
(EXCEPT BX2/DX2: MX)
254 A-4473-603-A MAIN BOARD, COMPLETE
(US, CND, E, AUS)
254 A-4473-999-A MAIN BOARD, COMPLETE (AEP, UK)
255 A-4473-607-A AMP BOARD, COMPLETE (US, CND, MX)
255 A-4475-001-A AMP BOARD, COMPLETE (AEP, UK)
255 A-4475-328-A AMP BOARD, COMPLETE
(SP, TW, KR, AUS)
255 A-4475-333-A AMP BOARD, COMPLETE (E2, E3, AR)
0262 1-783-531-51 CORD, POWER (US, CND)
0262 1-555-795-00 CORD, POWER (AEP, E3)
0262 1-696-570-21 CORD, POWER (UK)
0262 1-696-966-11 CORD, POWER (E2, SP, TW, AUS)
0262 1-776-985-21 CORD, POWER (KR)
0262 1-783-941-52 CORD, POWER (AR)
0262 1-558-943-41 CORD, POWER (MX)
265 4-230-067-01 FOOT (B)
0T001 1-435-611-11 TRANSFORMER, POWER (US, CND, MX)
0T001 1-435-630-11 TRANSFORMER, POWER (AEP, UK)
0T001 1-435-631-11 TRANSFORMER, POWER
(EXCEPT BX2/DX2: MX)
$
264
251
not
supplied
#3
#
4
#17
122 4-229-502-01 PLATE (A), CHANGER
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
• Abbreviation
AR : Argentine model
AUS : Australian model
CND : Canadian model
E2 : 120 V AC Area in E model
E3 : 240 V AC Area in E model
KR : Korean model
MX : Mexican model
SP : Singapore model
TW : Taiwan model
