For Schematic Diagrams.
Note:
All capacitors are in μF unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
All resistors are in Ω and 1/4 W or less unless otherwise
speci ed.
f
: internal component.
2
: non ammable resistor.
C
: panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
A
: B+ Line.
B
: B– Line.
Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
– BD76 Board –
no mark
: CD MODE
– Other Boards –
no mark
: TUNER (FM/AM)
Voltages are taken with VOM (Input impedance 10 M
).
Voltage variations may be noted due to normal production
tolerances.
Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
Circled numbers refer to waveforms.
• Signal path.
F
: AUDIO
J
: CD
f
: FM/AM
E
: USB
• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
For Printed Wiring Boards.
Note:
X
: parts extracted from the component side.
Y
: parts extracted from the conductor side.
W
: indicates side identi ed with part number.
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
Indication of transistor.
C
B
These are omitted.
E
Q
B
These are omitted.
CE
Q
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• Abbreviation
AR : Argentina model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
Note: The components identi ed by mark
0
or dotted
line with mark
0
are critical for safety.
Replace only with part number speci ed.
Circuit Boards Location
PANEL board
POWER board
DB76 board
TUNER1 board
TRANS board

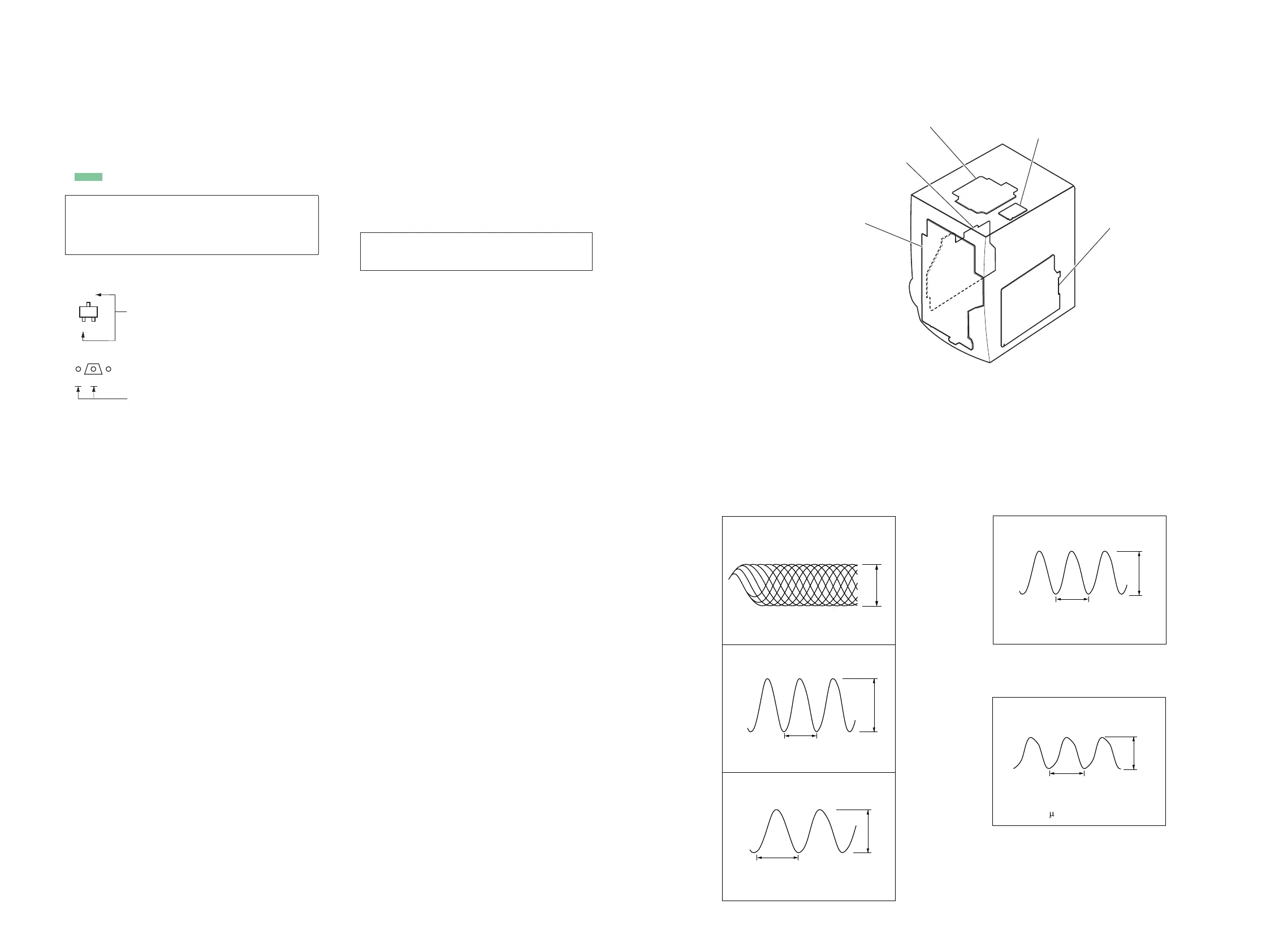

• Waveforms
– BD76 Board –
– PANEL Board –
60.6 ns
50 mV/DIV, 20 nsec/DIV
2
IC101 us (XOUT)
261.7 mVp-p
100 mV/DIV, 20 nsec/DIV
3
IC901 7 (CF2)
84 ns
350.0 mVp-p
200 mV/DIV, 500 nsec/DIV
1
IC101 2 (RFOUT)
(CD play mode)
0.6 to 1.5 Vp-p
56.0 ns
100 mV/DIV, 20 nsec/DIV
4
IC100 qh (MAIN-CLK-OUT)
280 mVp-p
– TUNER1 Board –
5
IC101 qk (X1)
200 mV/DIV, 5 sec/DIV
32.768 kHz
0.6 Vp-p
