Sony HCD-EC599 - Chassis Section

36
HCD-EC599

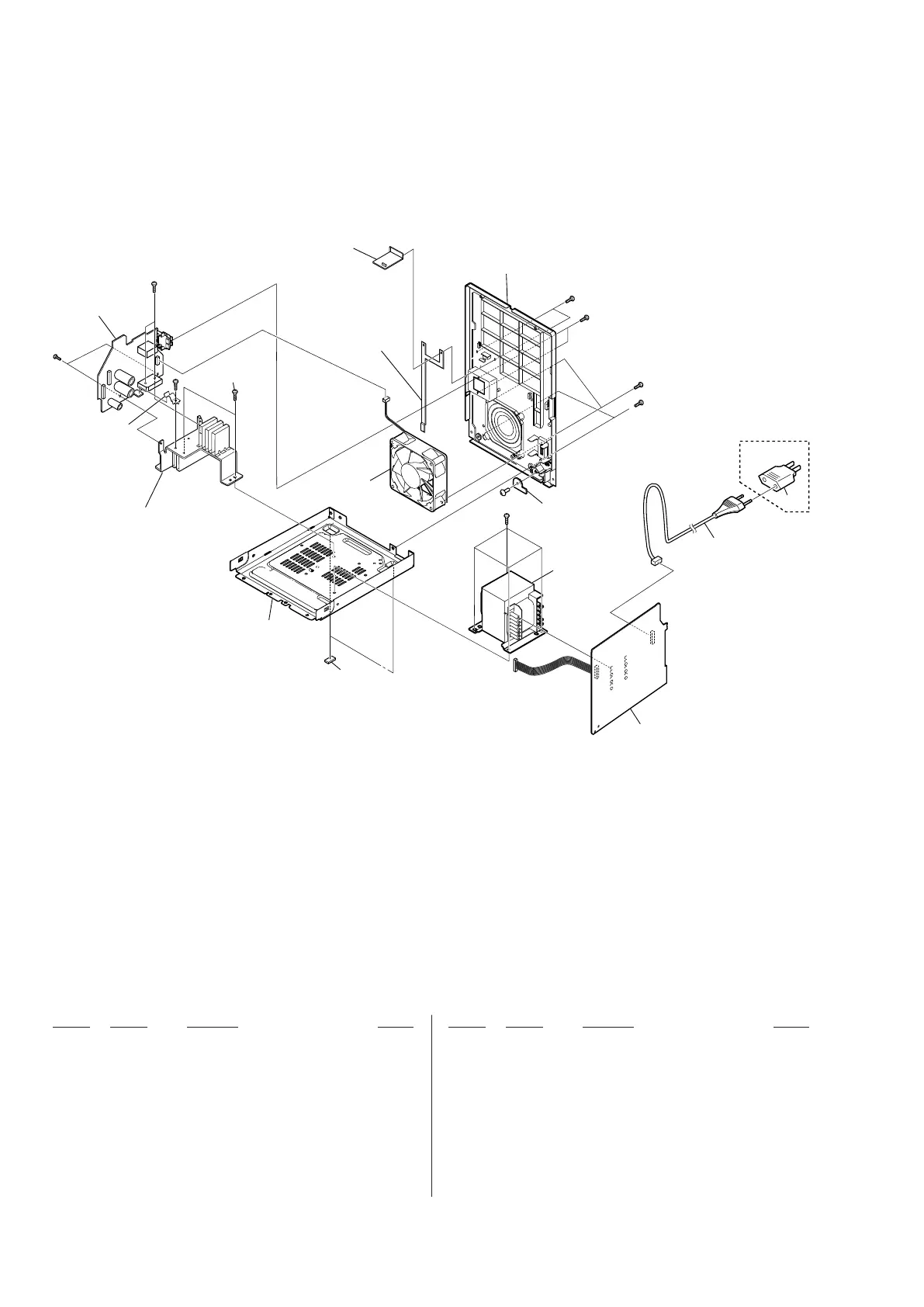

6-3. CHASSIS SECTION
101 4-264-672-01 CUSHION (FOOT)
102 4-411-871-01 PANEL, BACK (E2, E51)
102 4-411-871-11 PANEL, BACK (MX, AR)
103 A-1846-435-A TUNER1AM3R-NS
0 104 1-855-006-11 FAN, DC
0 105 1-834-966-41 POWER-SUPPLY CORD (E51)
0 105 1-837-312-11 CORD, POWER-SUPPLY (AR)
0 105 1-837-344-11 CORD, POWER-SUPPLY (E2, MX)
0 106 1-569-007-12 ADAPTOR, CONVERSION 2P (E2)
0 106 1-569-008-33 ADAPTOR, CONVERSION (E51)
107 3-077-331-01 +BV3 (3-CR)
108 3-905-609-31 SCREW (TRANSISTOR)
109 4-900-386-01 SCREW +BV SUMITITE S 4X8 ROUND
0 PT602 1-697-157-11 TRANSFORMER, POWER (EXCEPT MX)
0 PT602 1-697-158-11 POWER TRANSFORMER (MX)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
( POWER board )
105
102
106
E2,E51
#1
not supplied
(GUIDE board)
104
PT602
101
107
109
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
not supplied
( TRANS board )
108
103
#1
