Sony HCD-EC599 - Top Panel Section

37
HCD-EC599

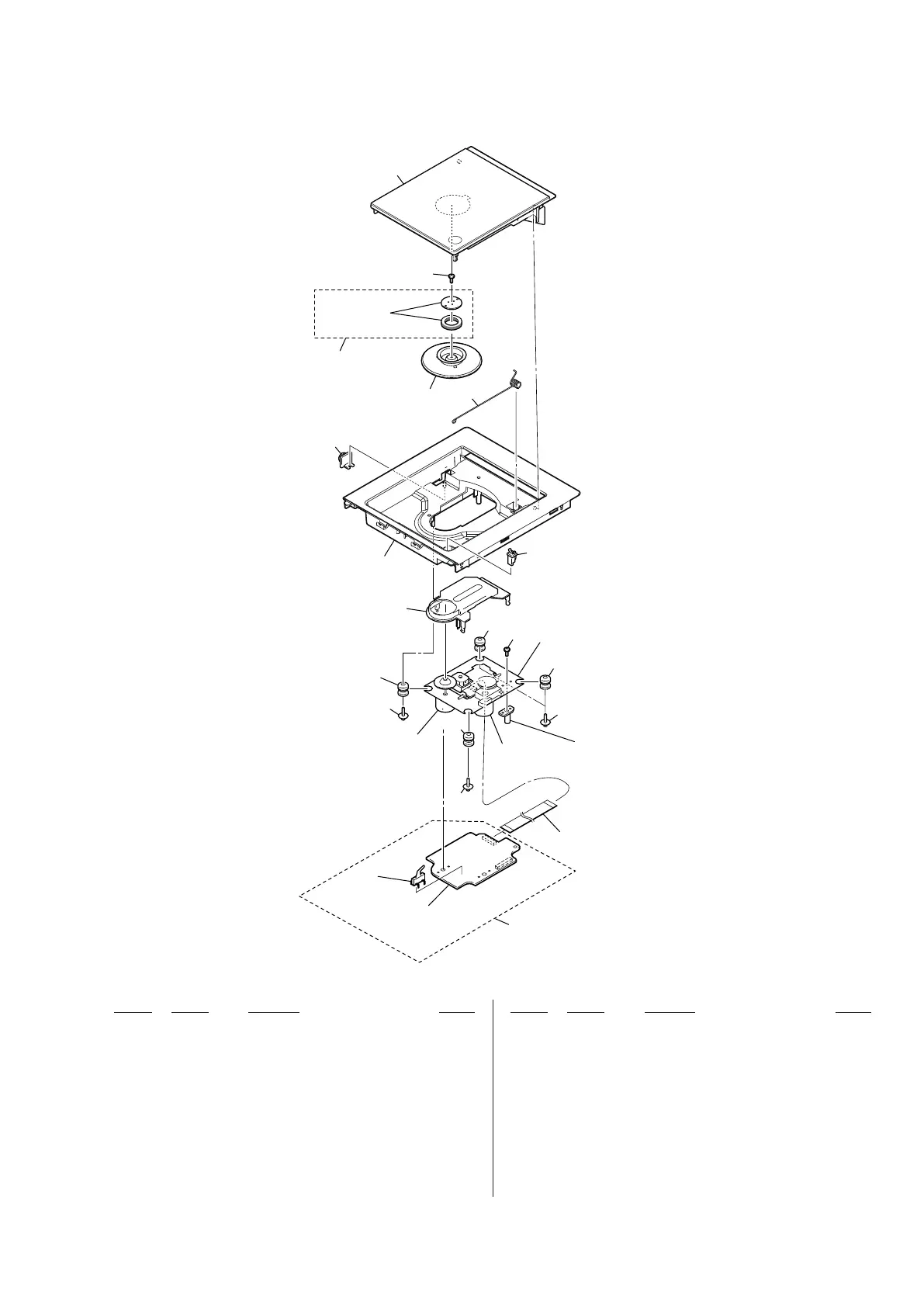

6-4. TOP PANEL SECTION
151 A-1853-274-A BD76 PC BOARD ASSY
152 1-834-268-21 WIRE (FLAT TYPE) (16 CORE)
153 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
154 4-189-053-01 INSULATOR (BLUE)
155 4-189-053-11 INSULATOR (GRAY)
156 3-080-204-31 SCREW, TAPPING, P2
157 4-166-292-01 SHAFT (SUPPORT)
0 158 A-1800-257-A OPTICAL PICK-UP BLOCK (DA11MMVGP)
(Including sled motor (M402), spindle motor (M401))
159 4-166-010-01 COVER (D1)
160 4-232-238-11 DAMPER
161 4-145-341-01 SPRING (LID)
162 4-161-552-01 PULLEY, CHUCKING (D1)
163 1-452-899-31 MAGNET
164 3-253-143-01 SCREW (B2.6), (+) P TAPPING
165 4-413-340-01 LID, CD
S001 1-771-853-11 SWITCH, DETECTION
SW305 1-692-960-11 SWITCH, PUSH (1 KEY)
(CD LID OPEN/CLOSE DETECT)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
158
(including sled motor (M402), spindle motor (M401))
153
154
153
157
153
SW305
not supplied
(sled motor (M402))
not supplied
not supplied
(spindle motor (M401))
not supplied
(BD76 board)
155
155
159
154
160
161
162
163
164
165
156
151
152
S001
