– 45 –
SECTION 6
EXPLODED VIEWS
NOTE:
-XX, -X mean standardized parts, so they may have
some difference from the original one.
Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
The mechanical parts with no reference number in
the exploded views are not supplied.
Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
Abbreviation
CND : Canadian model
EE : East European model
HK : Hong Kong model
SP : Singapore model
MY : Malaysia model
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.

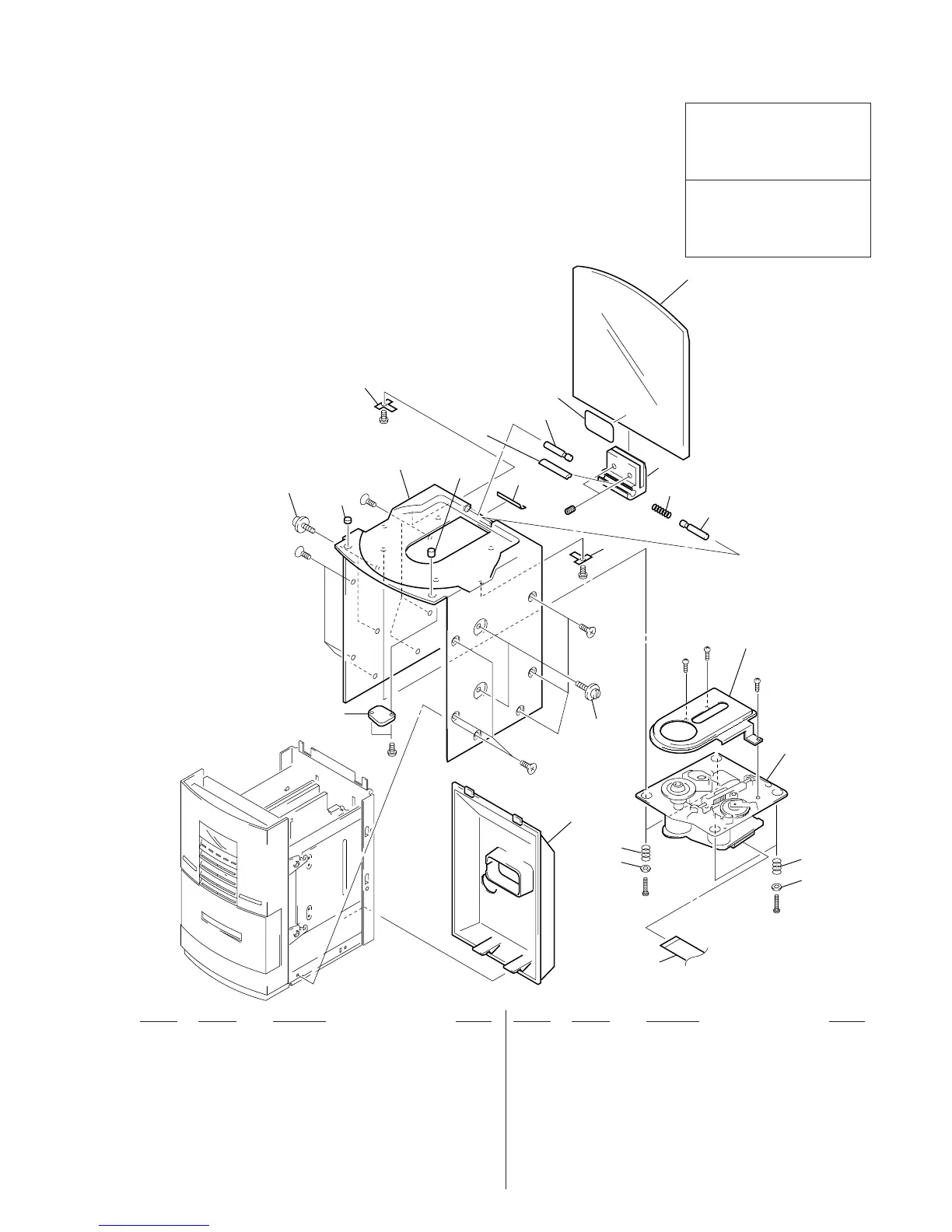

6-1. CD SECTION
1
2
4
5
17
6
18
7
18
8
9
10
10
12
13
12
15
11
11
14
16
4
3
Base uni
t
#2
#4
#3
#3
#2
#1
#3
#5
#5
#5
#2
#2
#3
1 4-997-375-01 GLASS DOOR W/PRINGING
2 4-997-373-01 HINGE PLATE
3 4-997-355-01 DOOR HINGE
4 4-997-365-01 HINGE PIN
5 4-997-370-01 BAR RUBBER
6 4-997-356-01 HINGE SPRING
7 4-997-349-01 CD BASE
8 4-997-367-01 PUSH BUTTON
9 4-997-369-01 CUSHION
10 4-997-345-01 HOOK SCREW
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
11 4-948-503-01 SPRING (BU), COMPRESSION
12 4-997-372-01 WASHER
13 1-783-091-11 WIRE (FLAT TYPE)
* 14 4-997-350-01 BACK COVER (US,CND,MY,SP,HK)
* 14 4-997-350-11 BACK COVER (AEP,UK,EE,CIS)
15 4-997-353-01 PICK UP COVER
* 16 A-4407-244-A CD DOOR SW BOARD, COMPLETE
17 4-977-376-01 STOP SPRING
18 4-977-371-01 STOPPER
