Sony HCD-ED1A - Front Panel Section

– 47 –

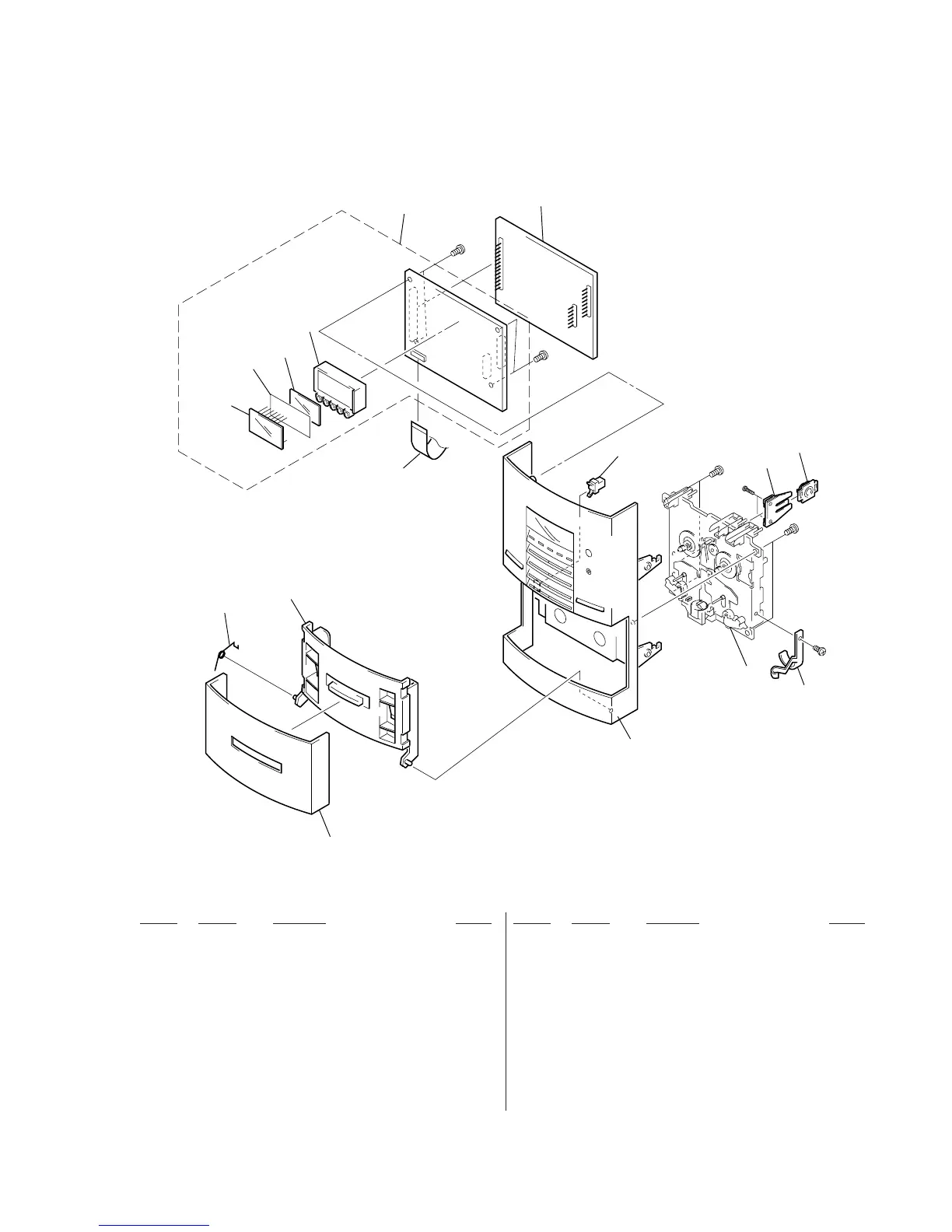

6-3. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
108 X-4949-449-1 FRONT PANEL SUB ASSY
109 4-997-362-01 DOOR LATCH
110 1-759-548-11 DECK, MECHANICAL
111 4-997-357-01 GEAR HOLDER
112 4-997-381-01 LCD HOLDER
113 4-997-382-01 LIGHT BAR
114 4-997-383-01 DISPLAY FILTER
115 4-997-374-01 SOLDER LUG
Z201 1-803-020-11 DISPLAY PANEL, LIQUID CRYSTAL
101 4-997-351-01 DOOR COVER
102 4-997-354-01 DOOR SPRING
103 X-4949-450-1 CASS DOOR SUB ASSY
104 1-773-009-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK,EE,CIS)
104 1-751-688-11 WIRE (FLAT TYPE) (13 CORE)
(US,CND,MY,SP,HK)
* 105 A-4407-247-A DISPLAY BOARD, COMPLETE (AEP,UK,EE,CIS)
* 105 A-4407-248-A DISPLAY BOARD, COMPLETE (US,CND)
* 105 A-4407-249-A DISPLAY BOARD, COMPLETE (MY,SP,HK)
* 106 A-4407-245-A RELAY BOARD, COMPLETE
107 4-997-361-01 GEAR DAMPER
101
102
103
108
109
110
115
111
107
104
105
112
113
114
106
#7
#5
Z201
#6
#6
#9
#7
