– 2 –
Ref. No. Part No. Description Remark
*** LED BOARD ***
FORMER TYPE (use lamp)Page
–
Ref. No. Part No. Description Remark
*** LED BOARD ***
* 1-670-517-11 LED BOARD
D1 8-719-064-63 DIODE SELU5823A-TP15
D2 8-719-064-63 DIODE SELU5823A-TP15
R1 1-247-807-11 CARBON 100 5% 1/4W
R2 1-249-404-00 CARBON 82 5% 1/4W
NEW TYPE (use LED)

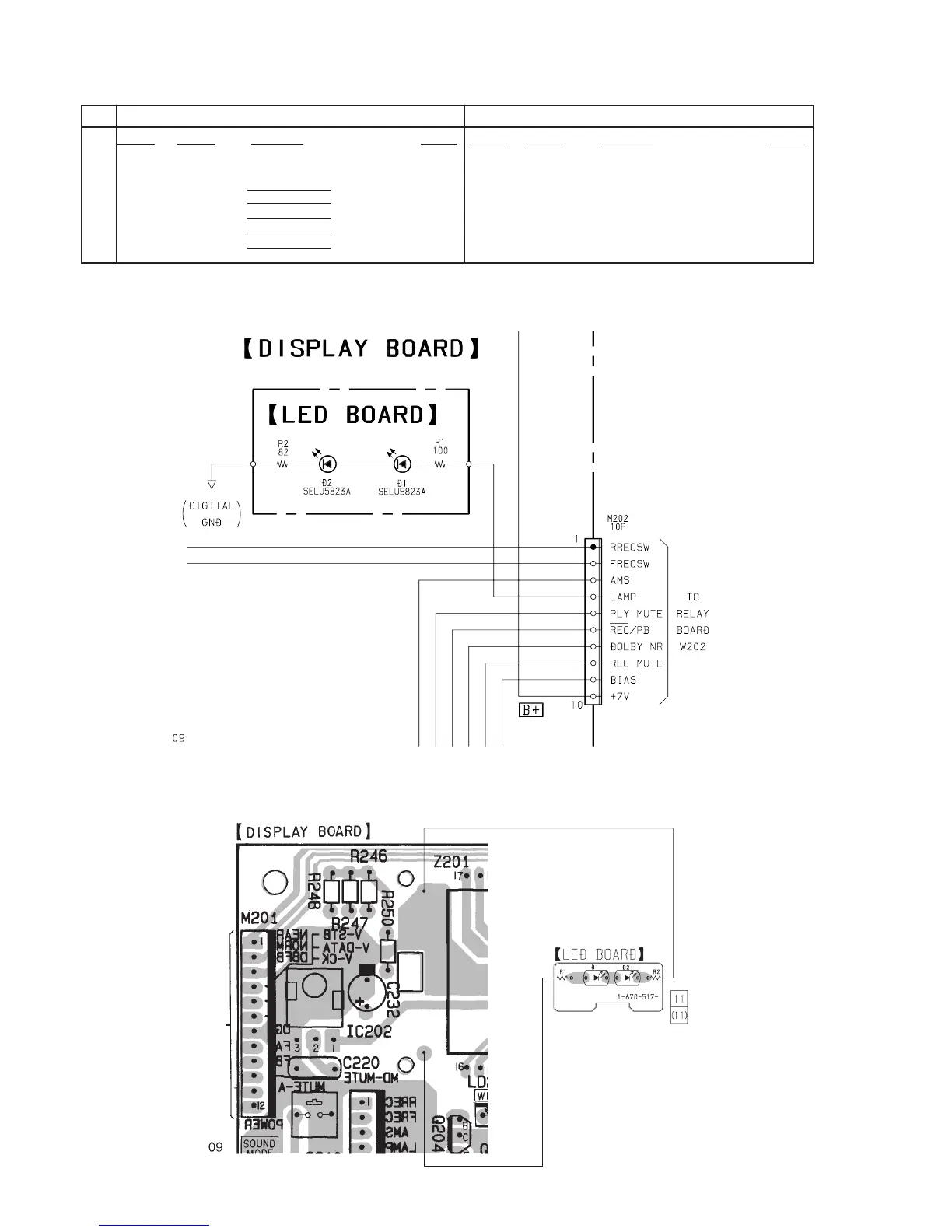

SCHEMATIC DIAGRAM -DISPLAY SECTION- Page 31
Location: D-E, 9-10
PRINTED WIRING BOARD -DISPLAY SECTION- Page 33
Location: C-E, 1-3
Note: Pattern of the rear side is not mentioned.
