Sony HCD-FX100W - DMB10 Board, TX Board

12
HCD-FX100W

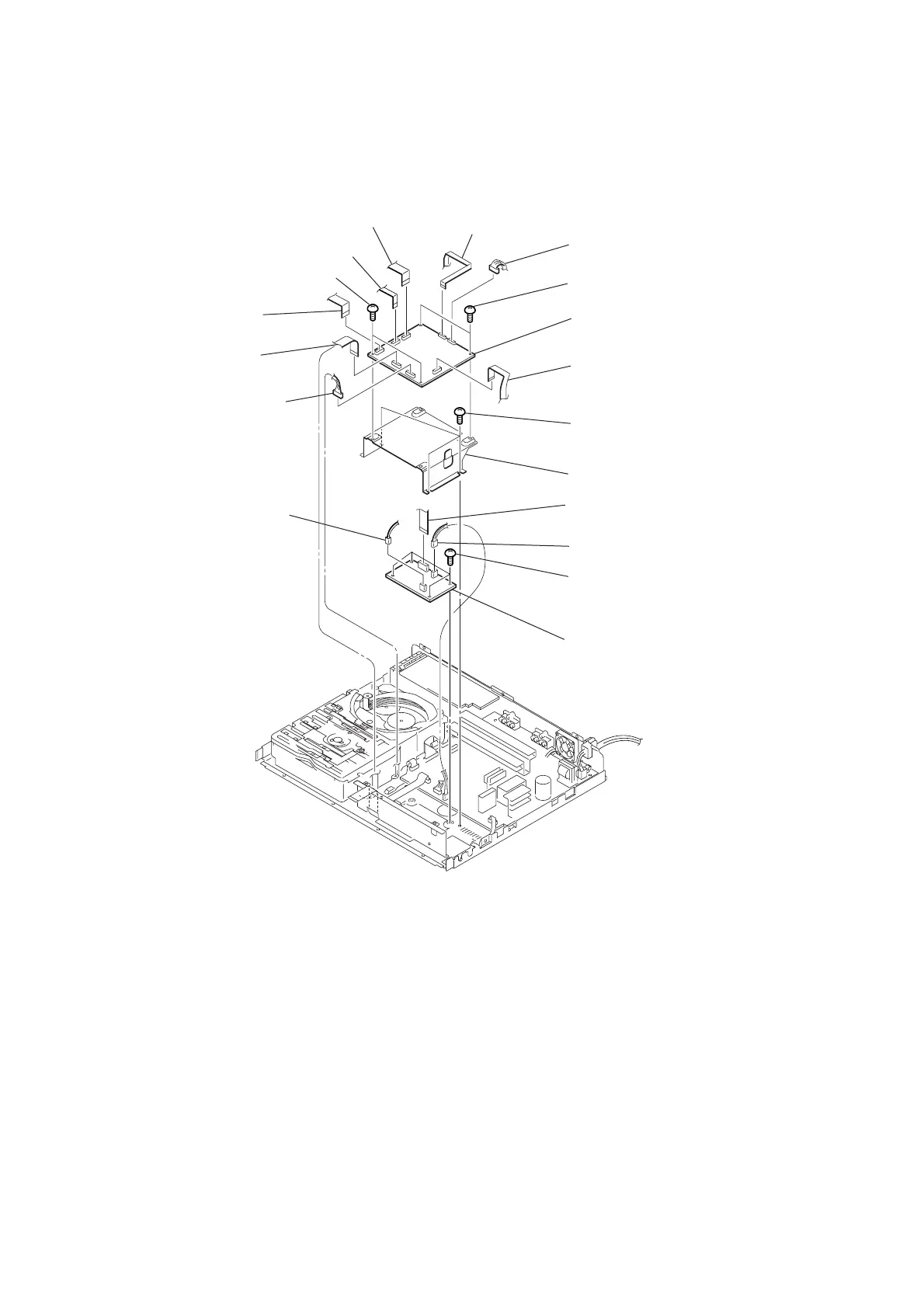

3-6. DMB10 BOARD, TX BOARD
qa DMB10 board
qk TX board
qd dmb chassis
0 two screws
(+BV 3)
9 two screws
(+BV 3)
qs three screws
(+BVTP 3
× 8)
qj four screws
(+BVTP 3
× 8)
6 wire (flat type)
11p(CN4501)
8 wire (flat type)
13p(CN106)
7 connector (CN401)
qh connector (CN802)
qf connector (CN803)
1 connector (CN201)
3 wire (flat type)
13p(CN301)
4 wire (flat type)
12p(CN4802)
5 wire (flat type)
28p(CN4801)
2 wire (flat type)
24p(CN101)
qg wire (flat type)
11p(CN801)
