Sony HCD-FX100W - Printed Wiring Board - TX Section

6868
HCD-FX100W
HCD-FX100W

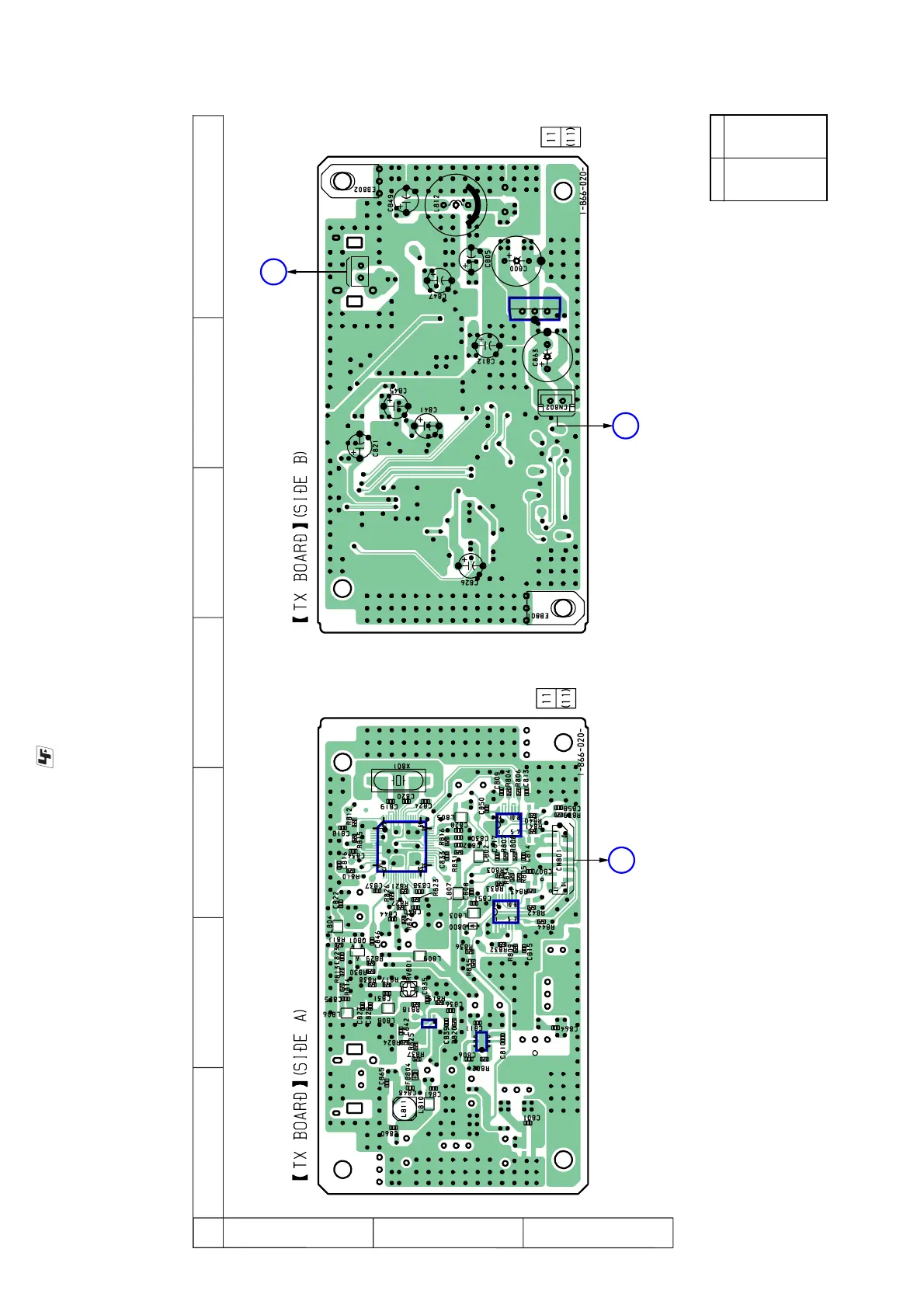

7-34. PRINTED WIRING BOARD – TX SECTION –
• See page 29 for Circuit Boards Location. :Uses unleaded solder.
• Semiconductor
Location
Ref. No.
Location
D800 B-2 IC800 B-7 IC801 B-2 IC802 B-3 IC803 B-2 IC804 B-3 IC805 B-2 Q801 A-2
IC801
IC803
IC802
IC804
IC805
IC800
P
MAIN BOARD
CN512
(Page 45)
Q
MAIN BOARD
CN902
(Page 46)
R
I/O BOARD
CN603
(Page 60)
1
2
CN803
12
A B
C
3456 7
