HCD-FX100W
3
boss
5
boss
2
boss
4
boss
1
floating
screw
(DIA. 12)
6
base unit (DVBU101)
2
two screws
(+BV 3)
1
two screws
(+BV 3)
3
DVD mechanism deck
(CDM69EH-DVBU101)

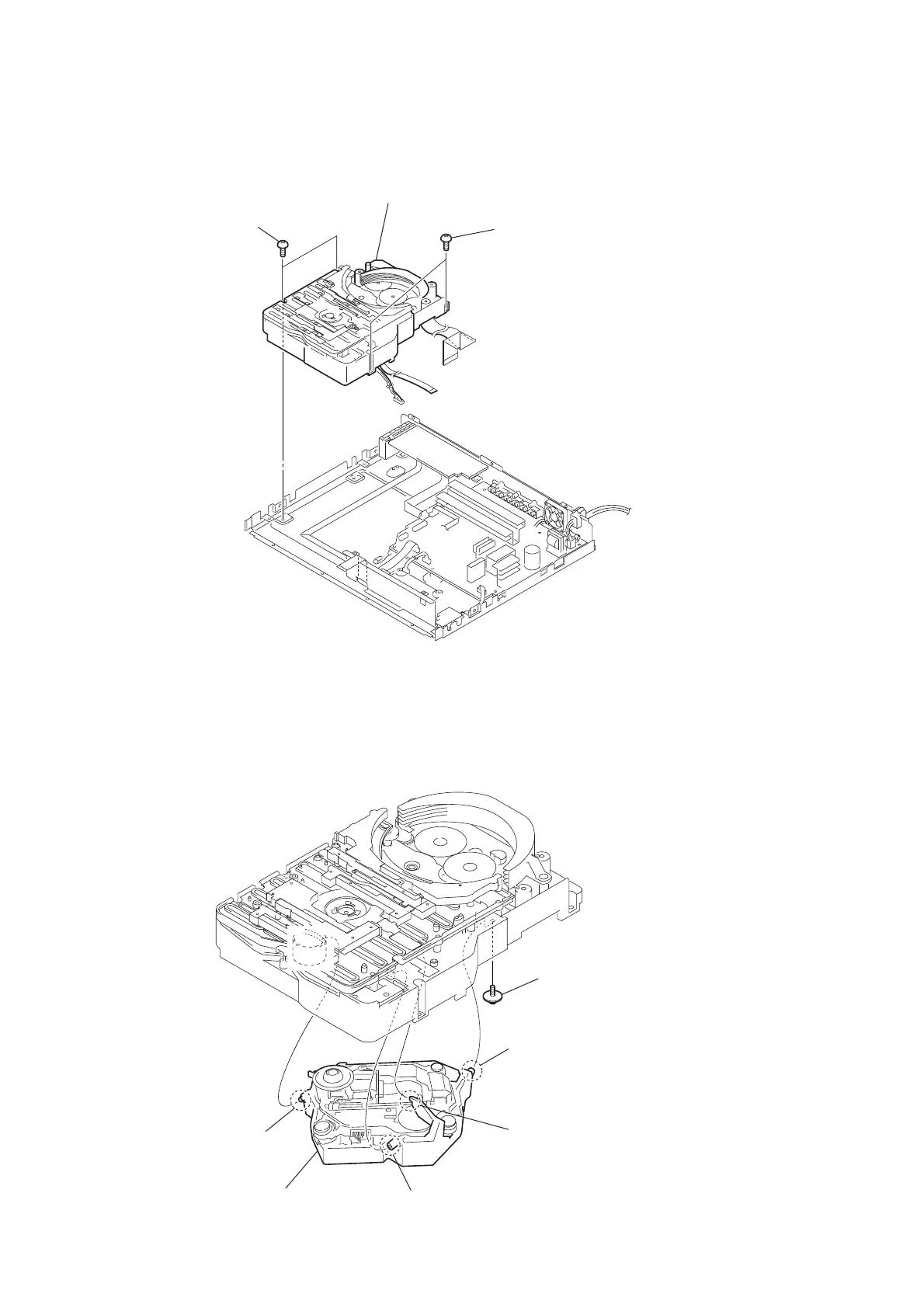

3-9. DVD MECHANISM DECK (CDM69EH-DVBU101)
3-10. BASE UNIT (DVBU101)
