Sony HCD-FX100W - Page 14

66
TA-WR2
TA-WR2

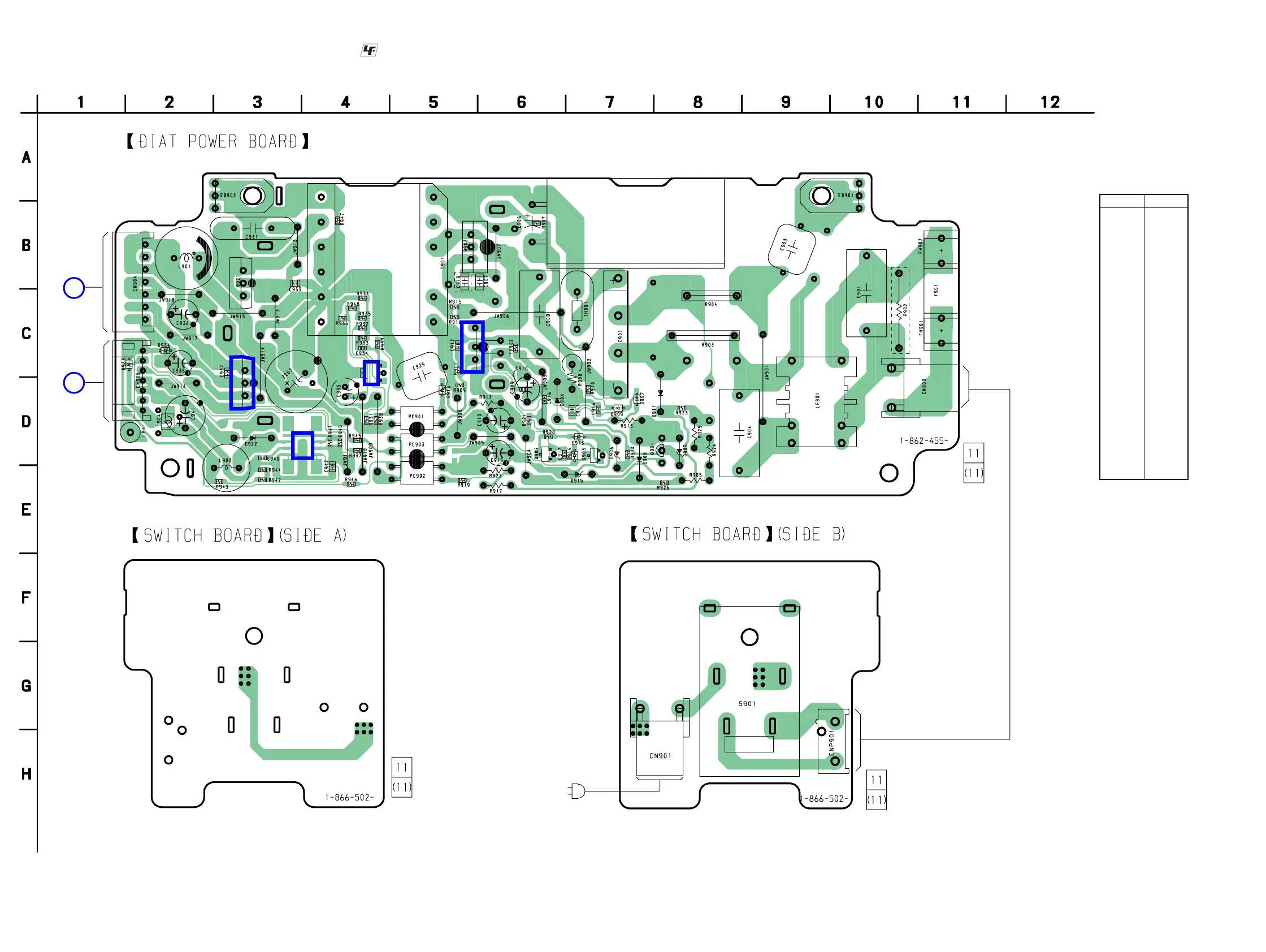

2-2. PRINTED WIRING BOARD — DIAT POWER SECTION —
:Uses unleaded solder.
1
1
1
1
1
1
6
EE
E
3
3
7
45
8
K
AC
E
K
AC
E
K
A
C
E
2
3
7
7
POWER
AC IN
AEP, UK, RU
AEP, UK, RU
A
RX BOARD
CN102
(Page 8)
B
RX BOARD
CN103
(Page 8)
IC903
IC904
IC905
IC901
• Semiconductor
Location
Ref. No. Location
D901 C-7
D902 B-5
D904 D-6
D905 D-8
D906 D-7
D907 D-7
D908 D-7
D909 D-7
D910 D-5
D911 D-8
D913 D-7
D914 D-7
D915 E-7
D921 B-3
D922 D-3
D933 C-2
D934 C-2
IC901 C-5
IC903 C-3
IC904 D-3
IC905 C-4
Q901 D-8
Q902 D-6
Q903 D-7
