Sony HCD-FX100W - Page 37

97
HCD-FX100W

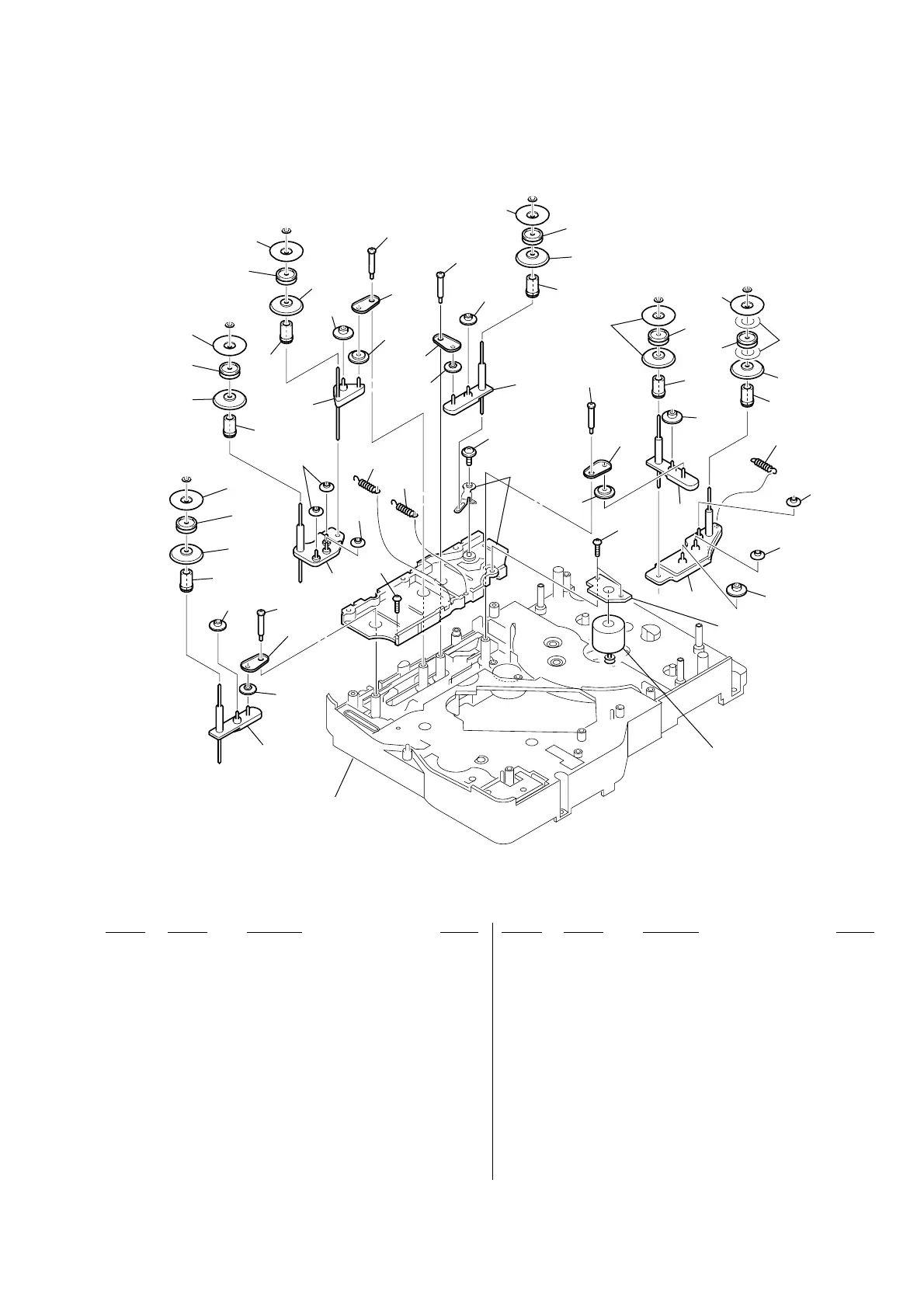

8-8. DVD MECHANISM DECK SECTION-4 (CDM69EH-DVBU101)
453
454
457
457
457
457
456
455
458
458
457
458
#6
#6
#6
453
453
452
452
462
454
456
456
457
455
455
454
457
457
457
456
467
#6
453
452
454
469
470
471
464
461
461
455
470
456
455
458
468
451
451
463
not
supplied
#6
#6
451
452
460
466
461
461
465
475
472
M781
473
466
DVD mechanism deck section-5
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
451 X-4954-626-1 LEVER (ROLLER) ASSY
452 4-239-666-01 GEAR
453 4-239-668-01 LEVER (CENTER)
454 4-239-652-02 SCREW (ROLLER), STEP
455 4-239-669-01 GEAR (ROLLER COMMUNICATION)
456 4-239-667-01 GEAR (ROLLER CENTER)
457 4-239-647-01 PARASOL (MAIN)
458 4-244-032-01 ROLLER, RUBBER
460 X-4954-622-1 BASE (SLIDER 2) ASSY
461 4-239-670-01 GEAR (ROLLER 5 COMMUNICATION)
462 X-4954-624-1 LEVER (SLIDER 4) ASSY
463 4-992-069-01 SCREW (+PTPWH) (M2) (DIA. 7)
464 4-240-981-01 SPRING (BASE SLIDER 5), TENSION
465 4-240-041-01 SPRING (SLIDER 2), TENSION
466 3-087-053-01 +BVTP2.6 (3CR)
467 4-243-916-01 ROLLER (S), RUBBER
468 4-244-035-01 ROLLER (STOCKER), RUBBER
469 4-241-209-01 SHEET, ADHESIVE
470 4-239-649-01 PARASOL (STOCKER)
471 4-239-671-01 GEAR (ROLLER 5 CENTER
472 X-4954-627-1 BASE (SLIDER 5) ASSY
473 1-686-726-13 ROLLER MOTOR BOARD
475 4-244-162-01 SPRING (SLIDER 4), TENSION
M781 A-4735-953-A MOTOR (STOCKER) ASSY (ROLLER)
#6 7-623-921-01 RING, RETAINING, CAPSTAN
