Sony HCD-FX100W - Page 39

99
HCD-FX100W

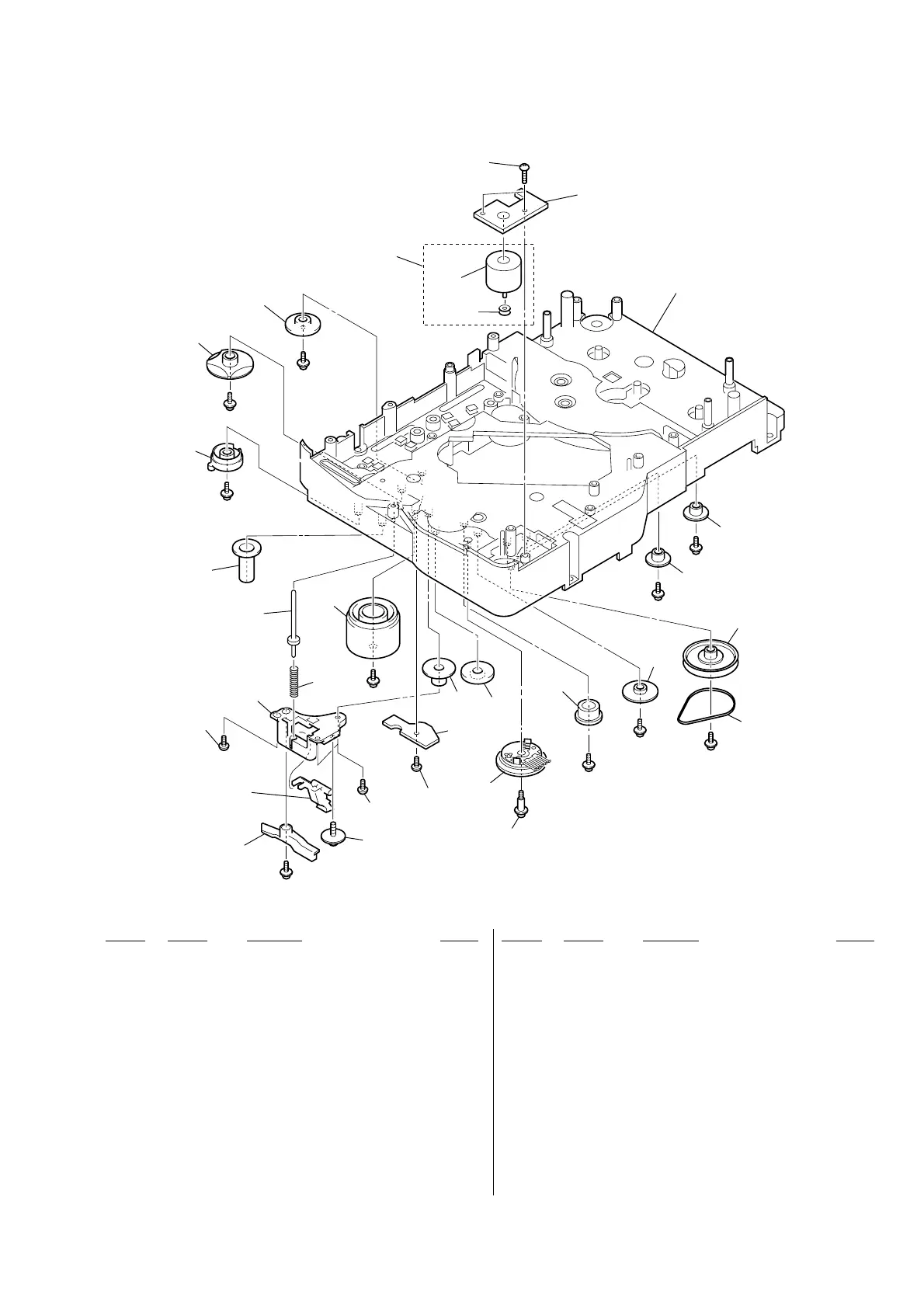

8-10. DVD MECHANISM DECK SECTION-6 (CDM69EH-DVBU101)
558
559
563
568
575
576
551
569
570
564
554
565
553
#7
#7
#7
#7
#7
#7
#7
#7
#7
#7
not
supplied
not supplied
M771
557
562
572
560
552
563
563
571
563
566
567
561
S771
555
555
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
551 4-239-693-02 CAM (GEAR)
552 1-686-723-13 SENSOR BOARD
553 4-239-696-01 GEAR (EJECT LOCK)
554 4-239-695-02 CAM (EJECT LOCK)
555 4-240-019-01 GEAR (MODE 5)
557 4-243-682-01 GEAR (MODE C)
558 4-239-683-01 PULLEY (MODE DECELERATION)
559 4-243-702-01 BELT (MODE V)
560 4-243-683-01 GEAR (MODE D)
561 4-239-618-02 SCREW (+PWH, 2X6), STEP TAPPING
562 4-243-681-01 GEAR (MODE B)
563 3-087-053-01 +BVTP2.6 (3CR)
564 4-239-692-02 CAM (BU U/D)
565 4-239-694-01 GEAR (MODE CAM)
566 4-241-731-01 SHUTTER (A), LEVER
567 4-241-732-01 SHUTTER (B), LEVER
568 1-763-967-11 MOTOR, DC
569 4-241-734-01 SHAFT (SHUTTER)
570 4-241-735-01 SPRING (SHUTTER), COMPRESSION
571 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
572 4-243-680-01 GEAR (MODE A)
575 1-686-724-13 MODE MOTOR BOARD
576 4-986-156-01 PULLEY, MOTOR
M771 A-4735-953-A MOTOR (STOCKER) ASSY (MODE)
S771 1-477-300-11 ENCODER, ROTARY (MODE)
#7 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)
