Sony HCD-GN700 - Subwoofer Board, Rear Panel; Main Board

12
HCD-GN700/GX8800

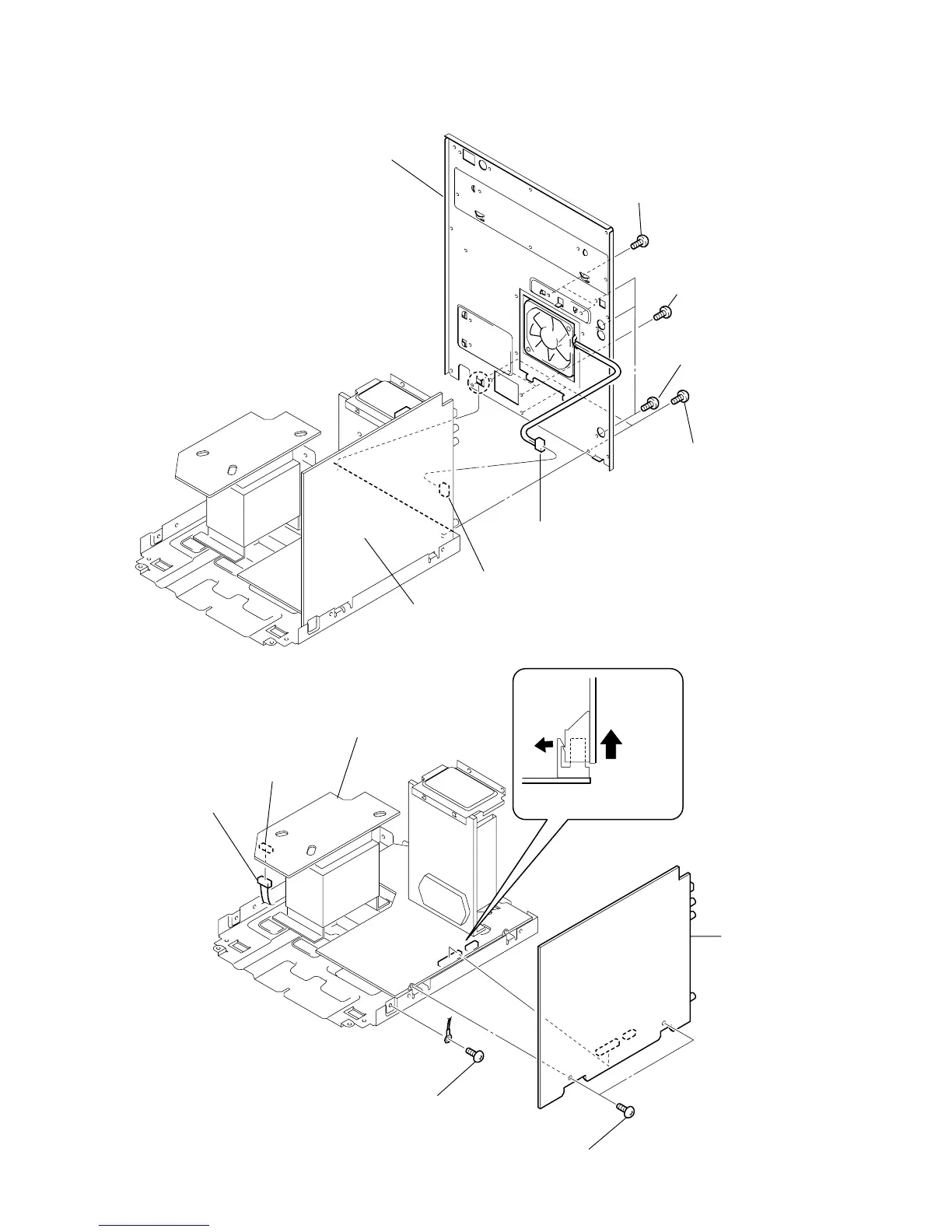

3-9. REAR PANEL
3-10. MAIN BOARD
3 three screws
(+BVTP3 x 10
)
2 two screws
(+BVTP3 x 10
)
1 two screws
(+BVTT3 x 6)
4 three screws
(+BVTP3 x 10)
5 connector
CN851
main board
6 rear panel
with fan
3 Two screws
(+BVTP3 x 10)
2 Screw
(+BVTP3 x 10)
1 Connector
6 MAIN boar
d
MAIN board
(CN901, 902)
POWER AMP board
(CN503, 504)
5
4
CN998
TRAN board
