Sony HCD-GN700 - Chassis Section

56
HCD-GN700/GX8800
107
108
103
104
105
109
106
101
not
supplied
not
supplied
not
supplied
F976
T910
F977
F975
F978
F974
not
supplied
#5
#5
#1
#1
#3
#1
#1
#1
#1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
101 1-686-930-11 TRANS BOARD
0 103 1-777-071-53 CORD, POWER (GN700:E51)
0 103 1-783-531-31 CORD, POWER (GX8800)
0 103 1-783-941-12 CORD, POWER (GN700:AR)
0 103 1-791-901-12 CORD, POWER (GN700:E2,E3,MX)
* 104 3-703-244-00 BUSHING (2104), CORD
(GN700:AR,E51,MX,GX8800)
104 3-703-571-11 BUSHING (S) (4516), CORD (GN700:E2,E3)
105 A-4731-356-A MAIN BOARD, COMPLETE
(GN700:AR,E2,E51,MX)
105 A-4733-061-A MAIN BOARD, COMPLETE (GN700:E3)
105 A-4733-066-A MAIN BOARD, COMPLETE (GX8800)
106 4-225-252-01 CUSHION (FOOT)
107 A-4731-361-A POWER AMP BOARD, COMPLETE (GN700)
107 A-4733-071-A POWER AMP BOARD, COMPLETE (GX8800)
108 4-943-687-01 HOLDER, PC BOARD
* 109 4-988-533-01 HOLDER, PWB
0 F974 1-533-454-11 FUSE, GLASS TUBE (DIA. 5) (6.3A 125V)
(GX8800)
0 F974 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V)
(GN700)
0 F975 1-533-454-11 FUSE, GLASS TUBE (DIA. 5) (6.3A 125V)
(GX8800)
0 F975 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) (T6.3AL 250V)
(GN700)
0 F976 1-576-537-11 FUSE, GLASS TUBE (DIA.5) (8A 125V)
(GX8800)
0 F976 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250)
(GN700)
0 F977 1-576-537-11 FUSE, GLASS TUBE (DIA.5) (8A 125V)
(GX8800)
0 F977 1-576-655-11 FUSE, GLASS TUBE (DIA. 5) (T8AL 250)
(GN700)
0 F978 1-533-452-11 FUSE, GLASS TUBE (DIA. 5) (4A 125V)
(GX8800)
0 F978 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) (T4AL 250V)
(GN700)
0 T910 1-439-555-11 POWER TRANSFORMER (GN700)
0 T910 1-439-617-11 POWER TRANSFORMER (GX8800)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-881-09 SCREW +BVTT 4X8 (S)

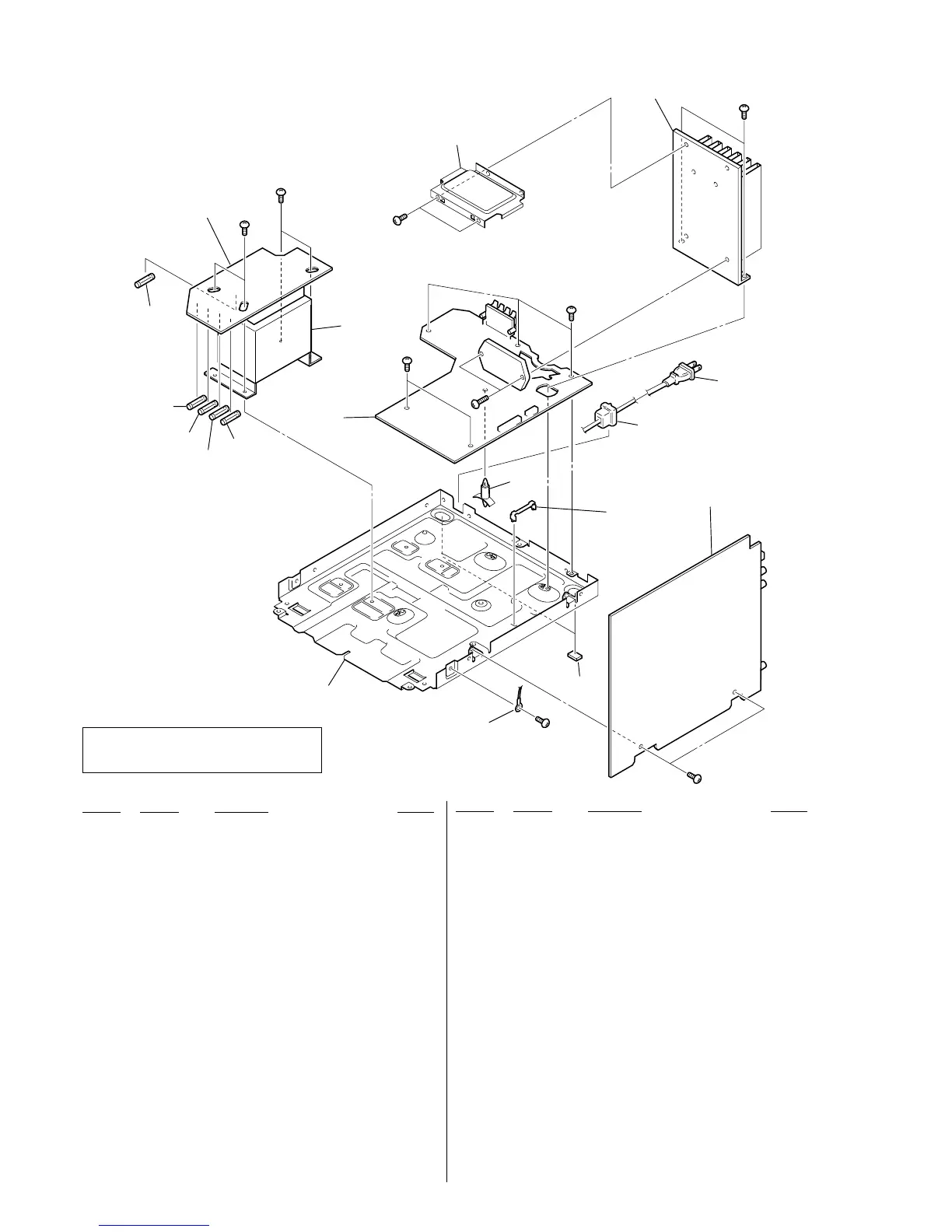

8-3. CHASSIS SECTION
