Sony HCD-GN700 - Front Panel Section

55
HCD-GN700/GX8800

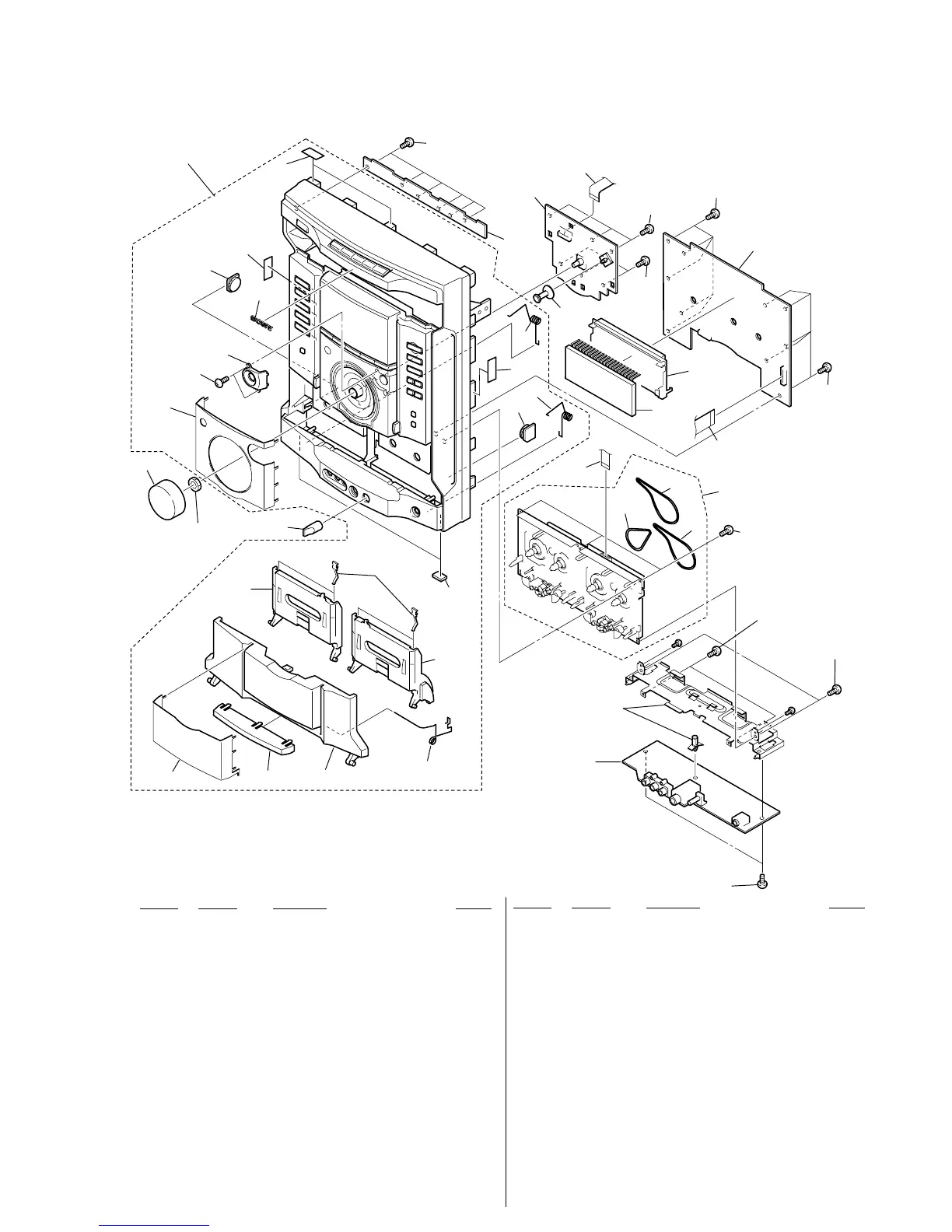

8-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-4955-229-1 FRONT PANEL ASSY (GN700)
51 X-4955-554-1 FRONT PANEL ASSY (GX8800)
52 4-225-252-01 CUSHION (FOOT)
53 4-244-075-01 HOLDER (TC-R)
54 4-244-093-01 SPRING (LID)
55 4-244-072-01 LID (TC)
56 4-244-073-01 WINDOW (TC)
57 4-244-090-01 COVER (AL-TC)
58 4-244-074-01 HOLDER (TC-L)
59 4-224-578-21 KNOB (MIC)
60 4-244-097-01 KNOB (VOL)
61 4-244-089-11 COVER (AL-STR)
62 4-951-620-01 SCREW (2.6X8), +BVTP
63 4-963-404-21 EMBLEM (5-A), SONY
64 4-224-104-11 DAMPER
65 4-244-094-01 SPRING (L)
66 4-244-095-01 SPRING (R)
67 1-686-936-11 CD SWITCH BOARD
68 A-4731-329-A VOLUME BOARD, COMPLETE
69 4-244-096-01 KNOB (CURSOR)
70 1-773-040-11 WIRE (FLAT TYPE) (17 CORE)
71 A-4731-330-A DISPLAY BOARD, COMPLETED (GN700)
71 A-4733-055-A DISPLAY BOARD, COMPLETE(GX8800)
72 4-231-581-01 HOLDER (FL)
73 1-773-110-11 WIRE (FLAT TYPE) (19 CORE)
74 A-4731-327-A GAME IN BOARD, COMPLETE
75 1-796-487-31 DECK, MECHANICAL
76 4-243-609-01 BELT (AF)
77 4-243-610-01 BELT (AL)
78 4-243-608-01 BELT (BR)
79 1-751-688-11 WIRE (FLAT TYPE) (13 CORE)
80 3-378-434-01 CUSHION, SARANET
FL601 1-518-862-11 INDICATOR TUBE, FLUORESCENT
#4 7-685-781-09 SCREW +PTT 2X4 (S)
