HCD-GNX80
Note: Follow the disassembly procedure in the numerical order given.

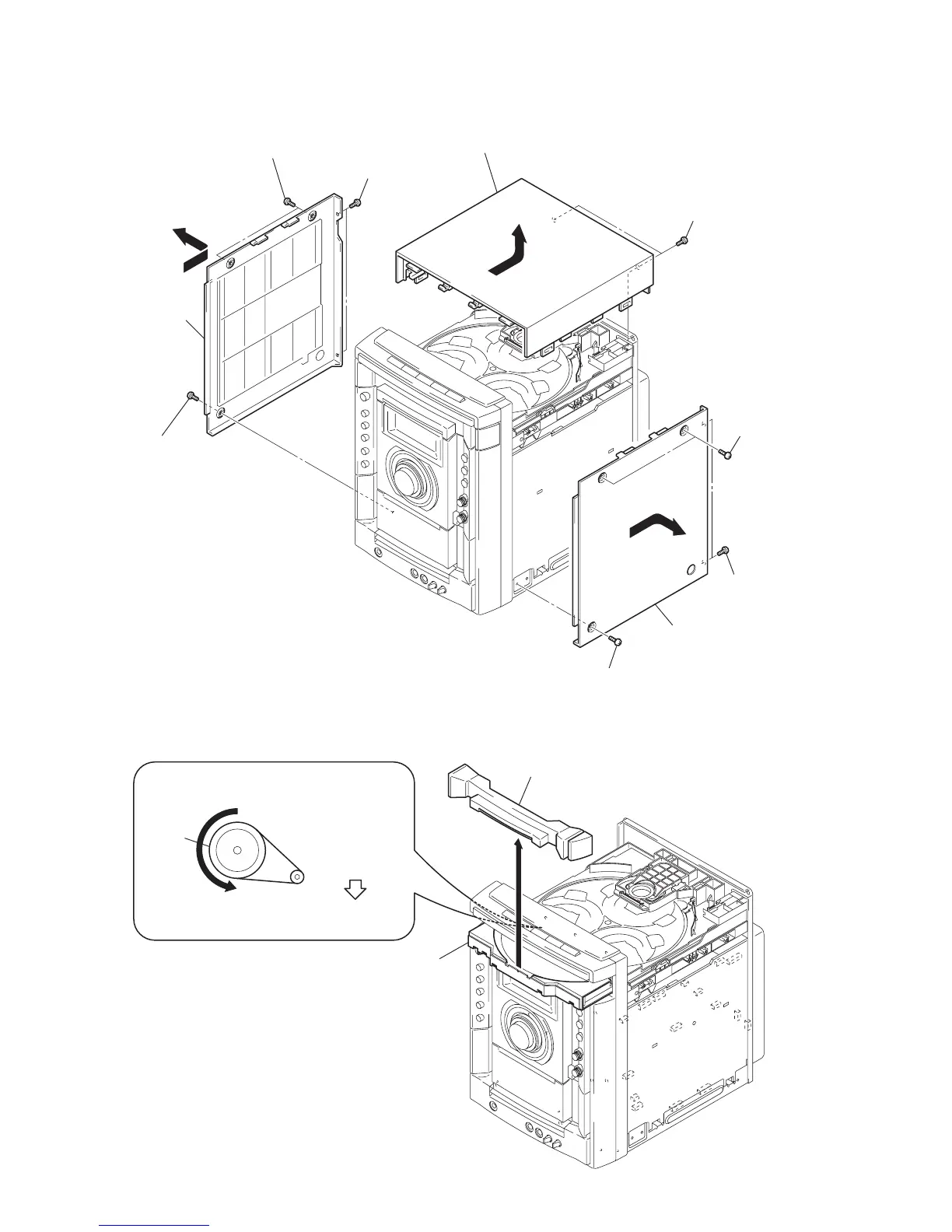

3-2. SIDE PANEL, TOP CASE
3-3. LOADING PANEL ASSY
1 screw (case 3 TP2)
(3X8)
2 two screws
(case 3 TP2)
(3X12)
3 two screws
(+BVTP 3X10)
4
5
PANEL (SIDE-L)
6 screw
(case 3 TP2)
(3X8)
7 two screws
(case 3 TP2)
(3X12)
8 two screws
(+BVTP 3X10)
9
0
PANEL (SIDE-R)
qa two screws
(+BVTP 3X10)
qs
qd
CASE (TOP)
CD mechanismdeck (CDM74-F1BD81)
1 Turn the pulley to the arrow direction.
Front side
Pulley
2 Pull out disc tray
3
4
loading panel assy
