HCD-GNX80
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 8
EXPLODED VIEWS

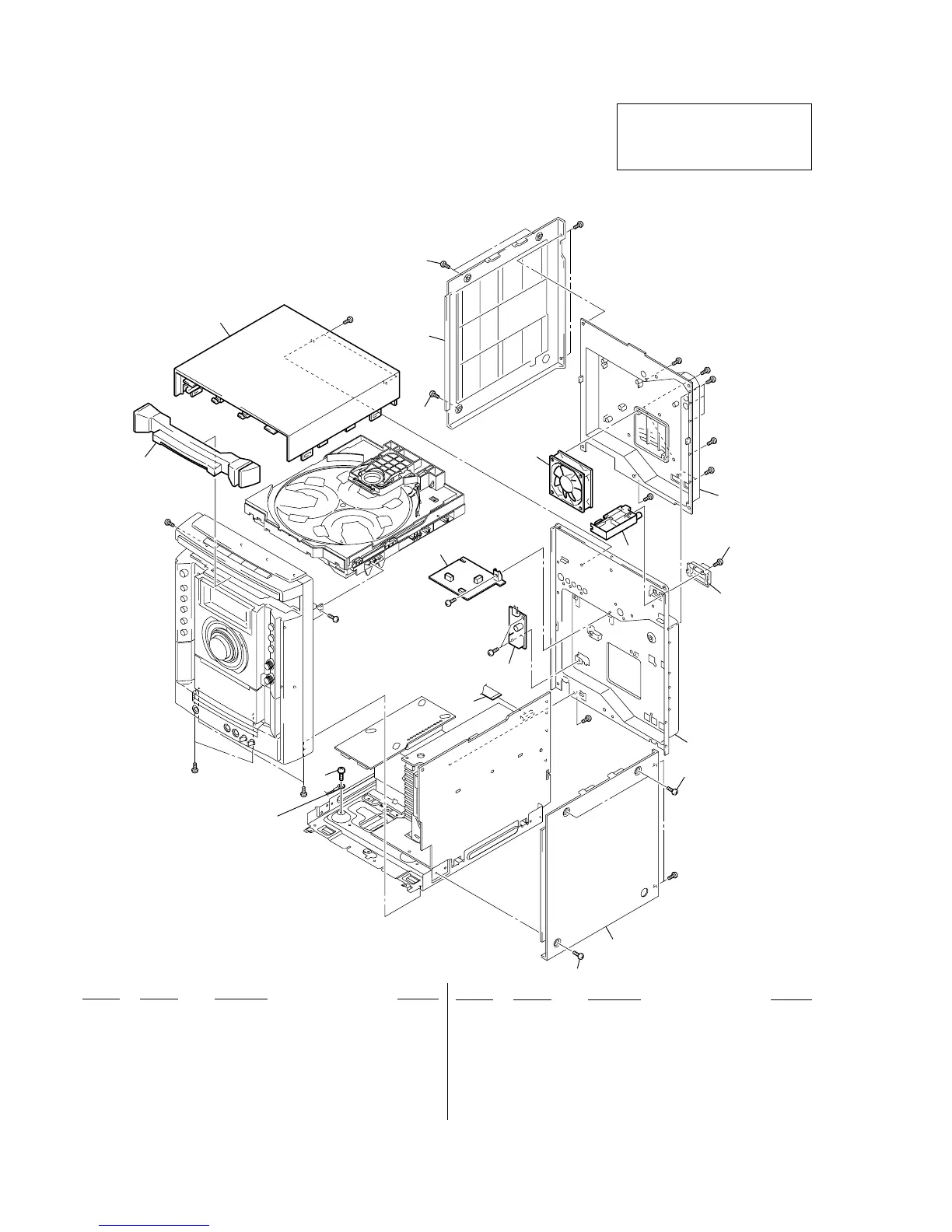

8-1. CASE (TOP), REAR PANEL SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of this parts list.
• Abbreviation
AUS : Australian model
E2 : 120V AC Area in E model
E3 : 240V AC Area in E model
E51 : Chilean and Peruvian model
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
1
2
3
4
#1
not supplied
#1
#1
#1
#1
#1
#1
#1
not supplied
5
6
7
#2
#2
#1
8
9
9
#1
#1
#1
not supplied
#1
3
4
not supplied
not supplied
#1
M891
lug
1 X-2025-407-1 LOADING PANEL ASSY (E2, E51)
1 X-2050-806-1 LOADING PANEL ASSY (E3, AUS)
2 2-342-117-01 CASE (TOP)
3 3-363-099-32 SCREW (CASE 3 TP2)
4 3-363-099-02 SCREW (CASE 3 TP2)
5 1-693-671-11 TUNER (TM-10E)
6 A-1089-510-A PRIMARY BOARD, COMPLETE (E2, E3, E51)
6 A-1089-525-A PRIMARY BOARD, COMPLETE (AUS)
0 7 1-468-737-21 POWER, SWITCHING
8 1-824-048-12 WIRE (FLAT TYPE) (27 CORE)
9 3-970-608-11 SUMITITE (B3), +BV
M891 1-763-372-11 FAN, DC
#1 7-685-647-79 SCREW +BVTP 3×10 TYPE2 IT-3
#2 7-685-646-01 SCREW +BVTP 3×8 TYPE1
To Next Page
