HCD-GNZ55D

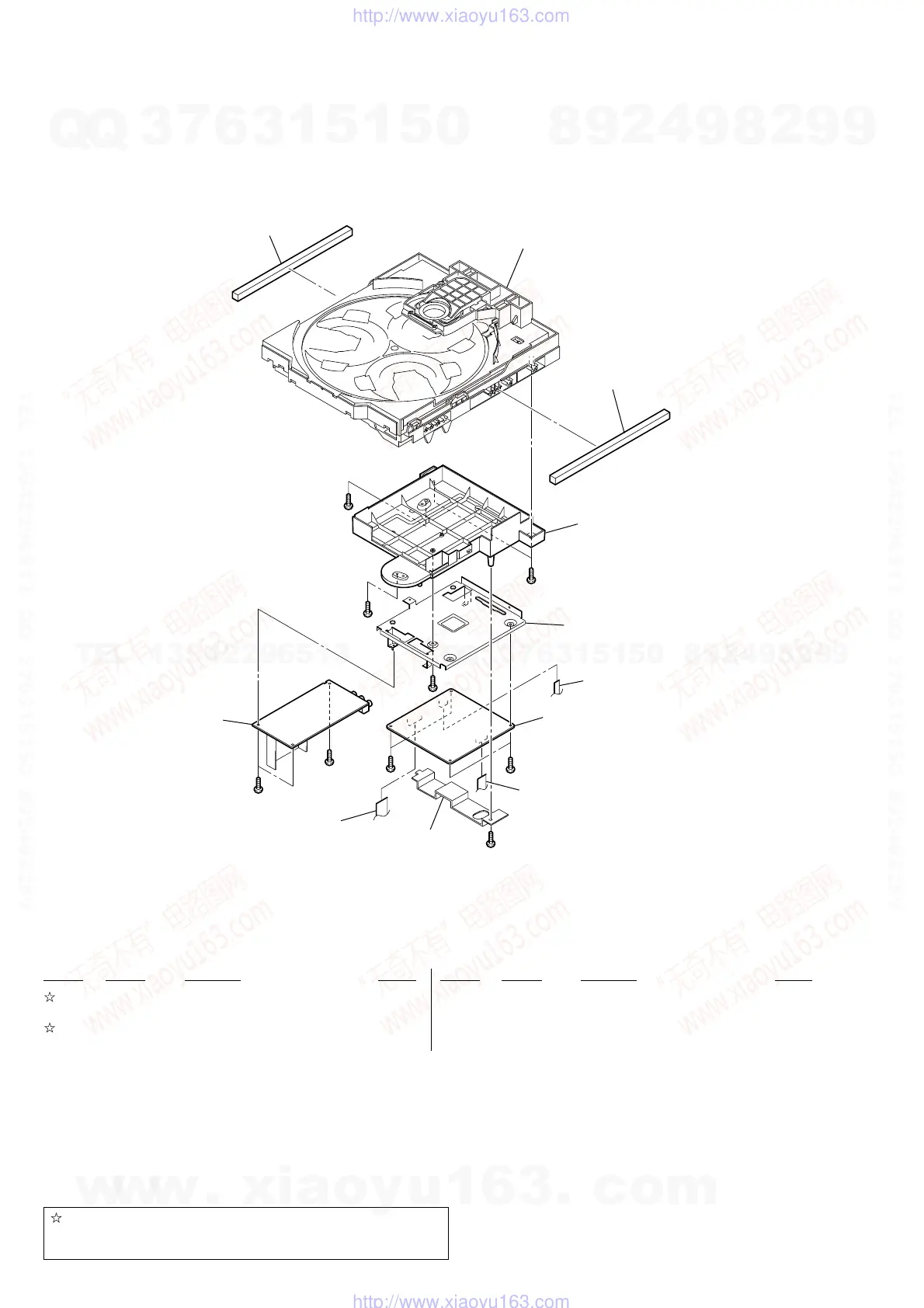

7-6. DVD BLOCK SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 A-1167-778-A DMB15 BOARD, COMPLETE
(E3,E12,E13,E15,EA)
251 A-1188-857-A DMB15 BOARD, COMPLETE (MY,SP,PH,TH)
252 1-828-589-11 WIRE (FLAT TYPE) (13 CORE)
253 1-828-286-11 WIRE (FLAT TYPE) (5 CORE)
254 1-828-614-11 WIRE (FLAT TYPE) (17 CORE)
255 A-1164-023-A VIDEO BOARD, COMPLETE
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B)
#1
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
not supplied
CDM74HF
251
253
254
255
252
Ver. 1.1
New part of EEPROM (IC103) on the DMB15 board cannot be used.
Therefore, if the mounted DMB15 board (A-1167-778-A, etc.) is replaced,
exchange new EEPROM (IC103) with that used before the replacement.
