HCD-GNZ55D

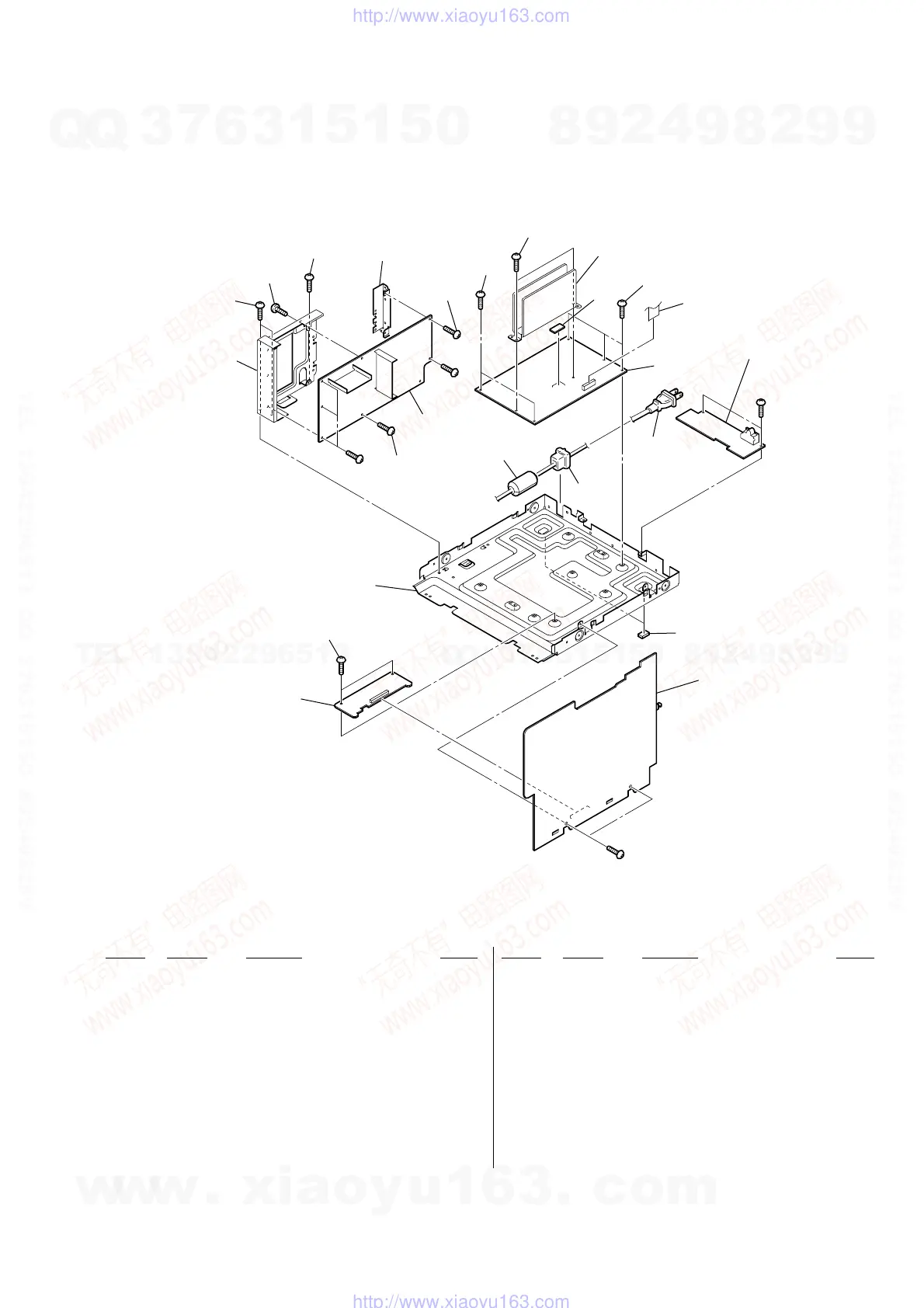

7-5. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
201
202
203
204
205
206
207
209
210
208
204
211
211
211
204
204
204
204
FC901
#1
#1
#1
#1
not supplied
(SPEAKER board
not supplied
not supplied
not supplied
not supplied
201 4-225-252-01 CUSHION (FOOT)
202 A-1159-563-A MAIN BOARD, COMPLETE (E3)
202 A-1189-052-A MAIN BOARD, COMPLETE (PH)
202 A-1189-055-A MAIN BOARD, COMPLETE (MY,SP)
202 A-1189-058-A MAIN BOARD, COMPLETE (EA)
202 A-1189-061-A MAIN BOARD, COMPLETE (E12)
202 A-1189-064-A MAIN BOARD, COMPLETE (E15)
202 A-1189-067-A MAIN BOARD, COMPLETE (E13)
202 A-1189-077-A MAIN BOARD, COMPLETE (TH)
203 A-1164-103-A ADC BOARD, COMPLETE
204 2-630-050-01 +BVTT 3X6 (SUMITITE)
0 205 1-479-627-11 POWER UNIT
206 2-597-972-31 SHEET, RADIATION
207 1-828-985-11 WIRE (FLAT TYPE) (15 CORE)
208 A-1164-101-A S-MASTER BOARD, COMPLETE
0 209 1-824-642-21 CORD, POWER (WITH CONNECTOR) (TH)
0 209 1-830-188-11 CORD, POWER (EXCEPT TH)
210 3-703-244-00 BUSHING (2104), CORD
211 3-703-136-12 SCREW, TAPPING
FC901 1-500-497-11 FILTER, CLAMP (FERRITE CORE)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B)
